PCB chart

PCB(PrintedCircuitBoard), The Chinese name is printed circuit board , Also known as printed circuit board 、 Printed circuit board , It's an important electronic component , It's the support of electronic components , Is the provider of electrical connection of electronic components .
Now let's also draw PCB chart
To rush

1、PCB Engineering layout design

First create pcb file , Then move the schematic into the package and import the bill of materials pcb In file

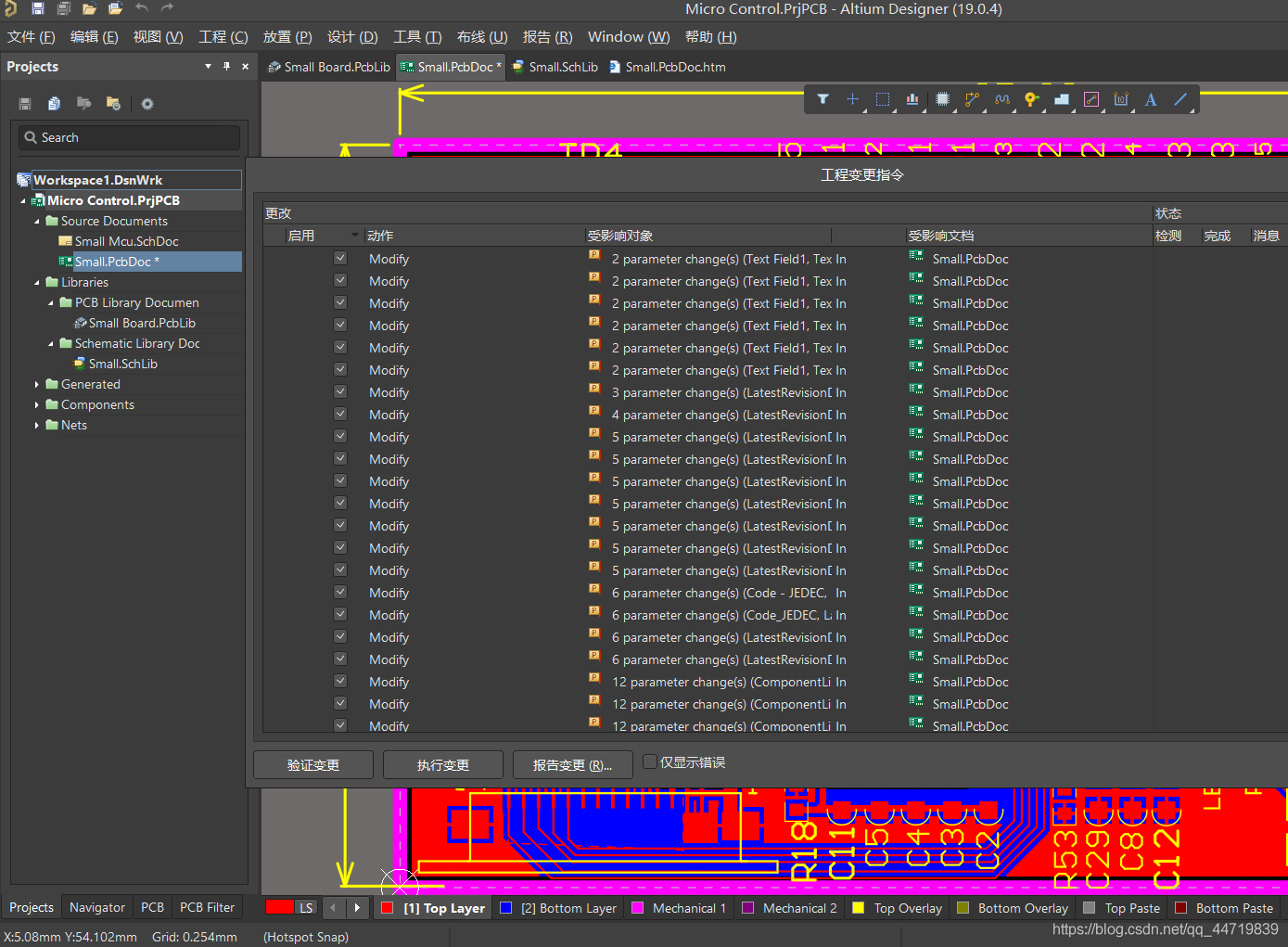

Import everything that should be imported .

Select the layout area in this way

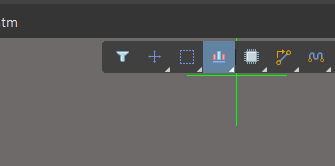

Also remember to use these tools

Set the board

Set the line width

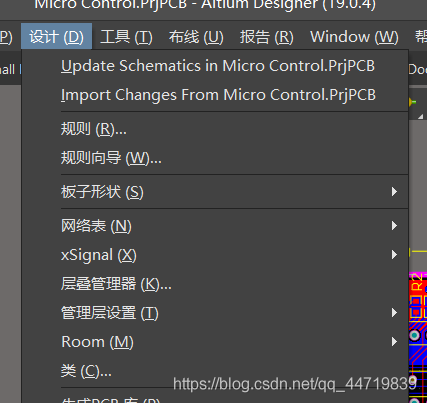

Click rule orientation

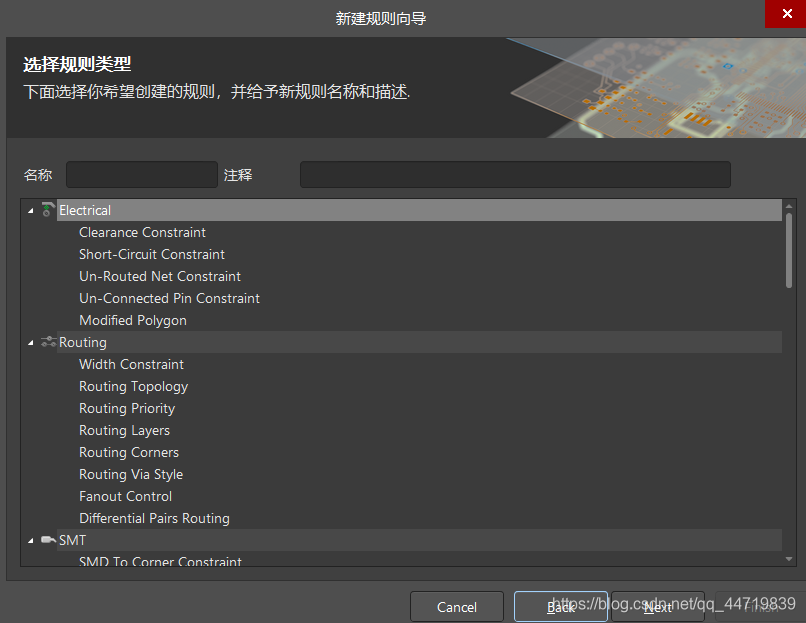

choice Next, Appear as follows

Then choose according to your own needs , Here are my choices

Wire laying copper ,3D The graph is as follows ：

Remember the whole teardrop treatment , Adding teardrops allows the circuit to PCB The connection on the board is more stable , High reliability , In this way, the system will be more stable , So it is necessary to add tears to the circuit board .

above

2、LOGO Set up

The whole picture is invincible 5t5

Turn it into logo


Stick him over

notice 5t5LOGO Did you?

It's been like this for several times …… unfortunately
Last , To the whole GerBer Photo files .

To configure

Click on the confirmation .

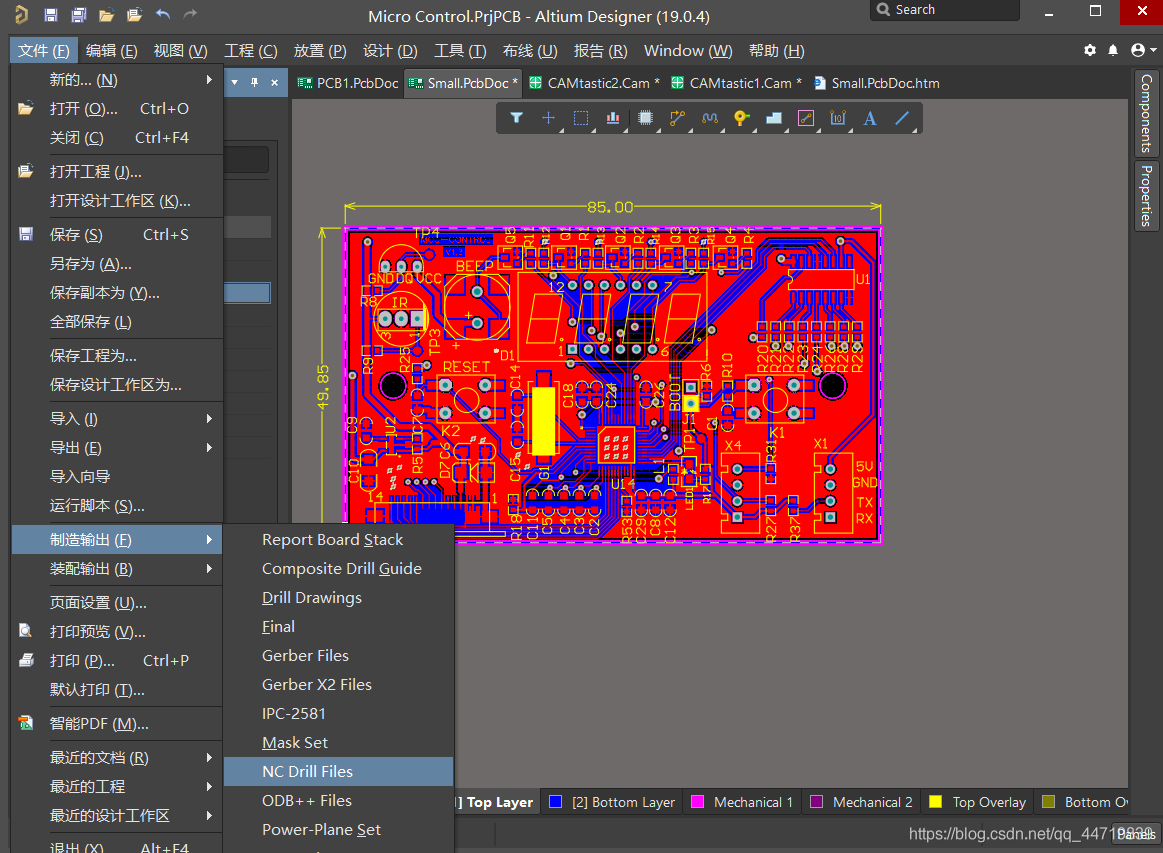

Then select as shown in the figure

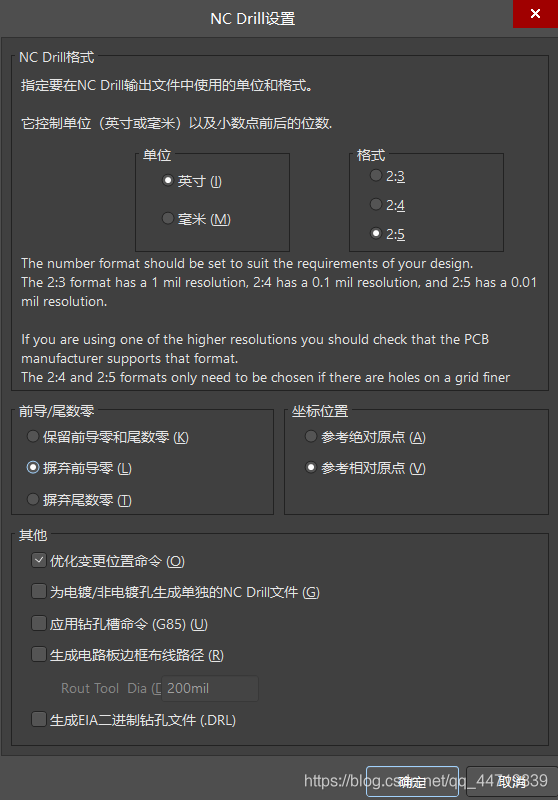

Enter the following interface , To configure

The following drilling file appears

3. summary

This time it was hard , You really have to give up at the beginning , Finally, I stuck to it , When you make it by yourself, you still have a sense of achievement , There are some strange problems , The most unforgettable thing is to add logo when , hold logo It's too small. I thought I didn't get it up , Posted many times . Then because I learned from video , In fact, many steps are not too clear about why to do this , But I can finally finish it by myself , Still very happy .
