Run yolov3 on Huawei modelarts_ coco_ detection_ dynamic_ AIPP sample

2022-07-19 10:01:00 【Flower boy】

One 、 Reference material

YOLOV3_coco_detection_dynamic_AIPP Examples

ATC_yolov3_caffe_AE

stay Atlas 200DK Experience DVPP（2）DVPP、AIPP and OM Reasoning

Two 、 Key steps

2.1 Download source code

official ：samples
Blogger ：samples

2.2 Download pre training model

wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/Yolov3/yolov3.caffemodel

wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/Yolov3/yolov3.prototxt

Project directory

samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP

2.3 download AIPP The configuration file

wget https://c7xcode.obs.cn-north-4.myhuaweicloud.com/models/YOLOV3_coco_detection_dynamic_AIPP/aipp_objectdetection.cfg

aipp_objectdetection.cfg file

aipp_op {
aipp_mode : dynamic
related_input_rank : 0
max_src_image_size: 700000
support_rotation: false
}

2.4 Set the environment variable

source ~/Ascend/ascend-toolkit/set_env.sh

export INSTALL_DIR=/home/ma-user/Ascend/ascend-toolkit/latest/arm64-linux

export THIRDPART_PATH=/home/ma-user/work/samples

export CPU_ARCH=aarch64

2.5 atc Model transformation

[[email protected] model]$ atc --model=./yolov3.prototxt --weight=./yolov3.caffemodel --framework=0 --output=./yolov3 --soc_version=Ascend910 --insert_op_conf=./aipp_objectdetection.cfg
ATC start working now, please wait for a moment.
ATC run success, welcome to the next use.

2.6 modify CMakeLists.txt

add to opencv Static link library ,cmake build Compilation can be linked to opencv.

# OpenCV_DIR Directory contains OpenCVConfig.cmake
set(OpenCV_DIR /home/ma-user/work/opencv-4.5.1/lib/cmake/opencv4)
#  find opencv library
find_package(OpenCV REQUIRED)

# If the package has been found, several variables will
# be set, you can find the full list with descriptions
# in the OpenCVConfig.cmake file.
# Print some message showing some of them
if(${OPENCV_FOUND})
    message(STATUS "OpenCV version: ${OpenCV_VERSION}")
    message(STATUS "OpenCV include path: ${OpenCV_INCLUDE_DIRS}")
    message(STATUS "OpenCV libraries: ${OpenCV_LIBS}")
endif()

# Add OpenCV headers location to your include paths
include_directories(${OpenCV_INCLUDE_DIRS})

2.7 `sample_build.sh`

[[email protected] scripts]$ ./sample_build.sh
ScriptPath: /home/ma-user/work/samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP/scripts
ModelPath: /home/ma-user/work/samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP/scripts/../model
[INFO] Sample preparation
please input TargetKernel? [arm/x86]:arm
[INFO] input is normal, start preparation.
--2022-07-05 18:00:01--  https://c7xcode.obs.cn-north-4.myhuaweicloud.com/models/YOLOV3_coco_detection_dynamic_AIPP/dog1_1024_683.jpg
Resolving proxy-notebook.modelarts.com (proxy-notebook.modelarts.com)... 192.168.0.62
Connecting to proxy-notebook.modelarts.com (proxy-notebook.modelarts.com)|192.168.0.62|:8083... connected.
Proxy request sent, awaiting response... 200 OK
Length: 35635 (35K) [image/jpeg]
Saving to: '/home/ma-user/work/samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP/scripts/../model/../data/dog1_1024_683.jpg'

/home/ma-user/work/samples/cplusp 100%[============================================================>]  34.80K  --.-KB/s    in 0.02s

2022-07-05 18:00:02 (1.61 MB/s) - '/home/ma-user/work/samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP/scripts/../model/../data/dog1_1024_683.jpg' saved [35635/35635]

[INFO] The yolov3.om already exists.start buiding
-- The C compiler identification is GNU 7.3.0
-- The CXX compiler identification is GNU 7.3.0
-- Check for working C compiler: /usr/bin/cc
-- Check for working C compiler: /usr/bin/cc -- works
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Detecting C compile features
-- Detecting C compile features - done
-- Check for working CXX compiler: /usr/bin/g++
-- Check for working CXX compiler: /usr/bin/g++ -- works
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Found OpenCV: /home/ma-user/work/opencv-4.5.1 (found version "4.5.2")
-- OpenCV version: 4.5.2
-- OpenCV include path: /home/ma-user/work/opencv-4.5.1/include/opencv4
-- OpenCV libraries: opencv_calib3d;opencv_core;opencv_dnn;opencv_features2d;opencv_flann;opencv_gapi;opencv_highgui;opencv_imgcodecs;opencv_imgproc;opencv_ml;opencv_objdetect;opencv_photo;opencv_stitching;opencv_video;opencv_videoio
arm architecture detected
target aarch64 300
-- Configuring done
-- Generating done
-- Build files have been written to: /home/ma-user/work/samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP/build/intermediates/host
Scanning dependencies of target main
[ 12%] Building CXX object CMakeFiles/main.dir/utils.cpp.o
[ 25%] Building CXX object CMakeFiles/main.dir/model_process.cpp.o
[ 37%] Building CXX object CMakeFiles/main.dir/object_detect.cpp.o
/home/ma-user/work/samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP/src/object_detect.cpp: In member function 'void* ObjectDetect::GetInferenceOutputItem(uint32_t&, aclmdlDataset*, uint32_t)':
/home/ma-user/work/samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP/src/object_detect.cpp:431:56: warning: 'uint32_t aclGetDataBufferSize(const aclDataBuffer*)' is deprecated: aclGetDataBufferSize is deprecated, use aclGetDataBufferSizeV2 instead [-Wdeprecated-declarations]
     size_t bufferSize = aclGetDataBufferSize(dataBuffer);
                                                        ^
In file included from /home/ma-user/Ascend/ascend-toolkit/latest/arm64-linux/acllib/include/acl/acl_rt.h:16:0,
                 from /home/ma-user/Ascend/ascend-toolkit/latest/arm64-linux/acllib/include/acl/acl.h:14,
                 from /home/ma-user/work/samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP/src/../inc/utils.h:24,
                 from /home/ma-user/work/samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP/src/../inc/object_detect.h:20,
                 from /home/ma-user/work/samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP/src/object_detect.cpp:19:
/home/ma-user/Ascend/ascend-toolkit/latest/arm64-linux/acllib/include/acl/acl_base.h:276:30: note: declared here
 ACL_FUNC_VISIBILITY uint32_t aclGetDataBufferSize(const aclDataBuffer *dataBuffer);
                              ^~~~~~~~~~~~~~~~~~~~
[ 50%] Building CXX object CMakeFiles/main.dir/dvpp_process.cpp.o
[ 62%] Building CXX object CMakeFiles/main.dir/dvpp_resize.cpp.o
[ 75%] Building CXX object CMakeFiles/main.dir/dvpp_jpegd.cpp.o
[ 87%] Building CXX object CMakeFiles/main.dir/main.cpp.o
[100%] Linking CXX executable /home/ma-user/work/samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP/out/main
[100%] Built target main
[INFO] Sample preparation is complete

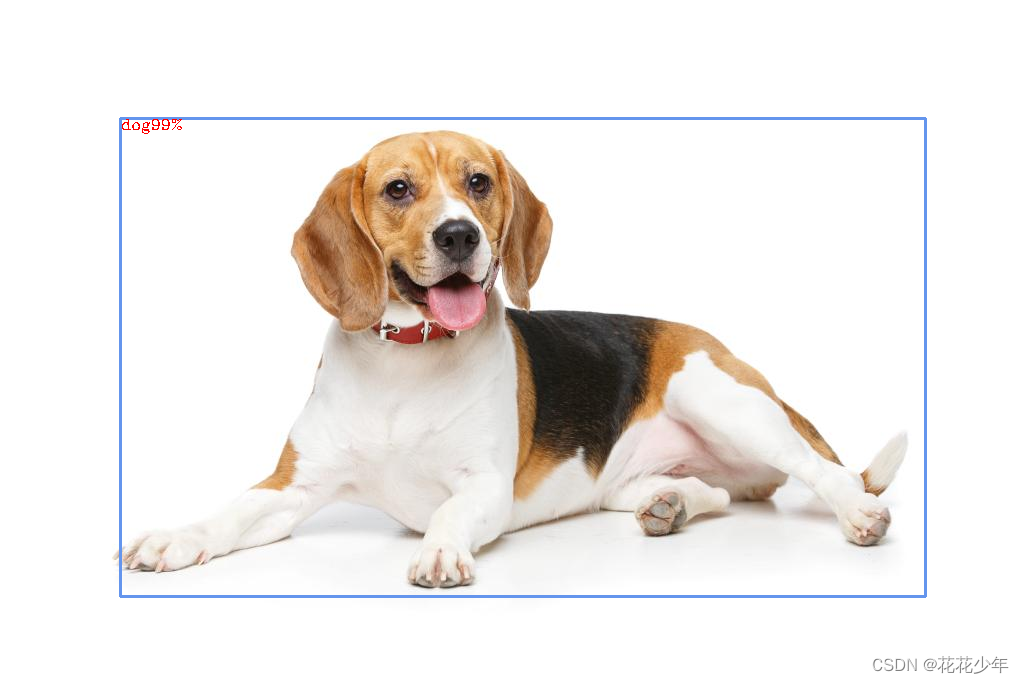

Insert picture description here

2.8 `sample_run.sh`

[[email protected] scripts]$ ./sample_run.sh
[INFO] The sample starts to run
[INFO]  acl init success
[INFO]  open device 0 success
[INFO]  create context success
[INFO]  create stream success
[INFO]  load model ../model/yolov3.om success
[INFO]  create model description success
[INFO]  create model output success
[INFO]  dvpp init resource ok
[INFO]  convert image success
[WARN]  Input size verify failed input[0] size: 700000, provide size : 259584
[INFO]  model execute success
110 116 929 600 dog99%
[INFO]  Process pic ../data/dog1_1024_683.jpg by dvpp success
[WARN]  Input size verify failed input[0] size: 700000, provide size : 519168
[INFO]  model execute success
120 118 925 596 dog99%
[INFO]  Process pic ../data/dog1_1024_683.jpg by OpenCV success
[INFO]  Execute sample success
[INFO]  unload model success, modelId is 1
[INFO]  end to destroy stream
[INFO]  end to destroy context
[INFO]  end to reset device is 0
[INFO]  end to finalize acl
[INFO] The program runs successfully, please view the result file in the /home/ma-user/work/samples/cplusplus/level2_simple_inference/2_object_detection/YOLOV3_coco_detection_dynamic_AIPP/scripts/../out/output directory!
