华为无线设备配置静态负载均衡

1. 配置LSW和AC，使AP与AC之间能够传输CAPWAP报文

[LSW1]vlan batch 10

[LSW1-GigabitEthernet0/0/1]port link-type trunk

[LSW1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10

[LSW1-GigabitEthernet0/0/2]port link-type trunk

[LSW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 10

[LSW1-GigabitEthernet0/0/2]port trunk pvid vlan 10

[LSW1-GigabitEthernet0/0/2]port-isolate enable

[LSW1-GigabitEthernet0/0/3]port link-type trunk

[LSW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 10

[LSW1-GigabitEthernet0/0/3]port trunk pvid vlan 10

[LSW1-GigabitEthernet0/0/3]port-isolate enable

[AC1]vlan batch 10

[AC1-GigabitEthernet0/0/1]port link-type trunk

[AC1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10

2. 配置AC与上层网络设备互通

[AC1]vlan batch 20 30 40

[AC1-Vlanif20]ip add 10.1.2.1 24

[AC1-Vlanif30]ip add 10.1.3.1 24

[AC1-Vlanif40]ip add 10.1.4.1 24

[AC1]ip route-static 0.0.0.0 0.0.0.0 10.1.4.2

[AC1-GigabitEthernet0/0/2]port link-type trunk

[AC1-GigabitEthernet0/0/2]port trunk allow-pass vlan 40

[AC1-GigabitEthernet0/0/2]port trunk pvid vlan 40

3. 配置AC给AP分配IP地址，AR给STA分配IP地址

[AC1]dhcp enable

[AC1]int Vlanif 10

[AC1-Vlanif10]ip add 10.1.1.1 24

[AC1-Vlanif10]dhcp select interface  //配置AC通过接口地址池为AP分配IP地址

[AC1-Vlanif20]dhcp select relay  //配置AC作为DHCP中继并使能DHCP中继探测用户表项功能

[AC1-Vlanif20]dhcp relay server-ip 10.1.4.2

[AC1-Vlanif30]dhcp select relay

[AC1-Vlanif30]dhcp relay server-ip 10.1.4.2

[AR1]dhcp enable  //配置AR作为DHCP服务器为STA分配IP地址

[AR1]ip pool sta-ip-pool1

[AR1-ip-pool-sta-ip-pool1]gateway-list 10.1.2.1

[AR1-ip-pool-sta-ip-pool1]network 10.1.2.0 mask 24

[AR1]ip pool sta-ip-pool2

[AR1-ip-pool-sta-ip-pool2]gateway-list 10.1.3.1

[AR1-ip-pool-sta-ip-pool2]network 10.1.3.0 mask 24

[AR1-GigabitEthernet0/0/0]ip add 10.1.4.2 24

[AR1-GigabitEthernet0/0/0]dhcp select global

[AR1]ip route-static 10.1.2.0 24 10.1.4.1

[AR1]ip route-static 10.1.3.0 24 10.1.4.1

4. 配置VLAN pool，用于作为业务VLAN

[AC1]vlan pool sta-pool

[AC1-vlan-pool-sta-pool]vlan 20 30

[AC1-vlan-pool-sta-pool]assignment hash

5. 配置AP上线

[AC1]wlan

[AC1-wlan-view]ap-group name ap-group1  //创建AP组

[AC1-wlan-view]regulatory-domain-profile name domain1  //创建域管理模板，在域管理模板下配置AC的国家码并在AP组下引用域管理模板

[AC1-wlan-regulate-domain-domain1]country-code cn

[AC1-wlan-view]ap-group name ap-group1

[AC1-wlan-ap-group-ap-group1]regulatory-domain-profile domain1

[AC1]capwap source  interface Vlanif 10  //配置AC的源接口

[AC1]wlan

[AC1-wlan-view]ap auth-mode mac-auth

[AC1-wlan-view]ap-id 0 ap-mac 00e0-fcae-6d70  //在AC上离线导入AP

[AC1-wlan-ap-0]ap-name ap1

[AC1-wlan-ap-0]ap-group ap-group1

[AC1-wlan-view]ap-id 1 ap-mac 00e0-fc31-7140

[AC1-wlan-ap-1]ap-name ap2

[AC1-wlan-ap-1]ap-group ap-group1

6. 配置WLAN业务参数

[AC1-wlan-view]security-profile name wlan-security  //创建安全模板，并配置安全策略

[AC1-wlan-sec-prof-wlan-security]security wpa2 psk pass-phrase [email protected] aes

[AC1-wlan-view]ssid-profile name wlan-ssid  //创建名SSID模板，并配置SSID名称

[AC1-wlan-ssid-prof-wlan-ssid]ssid wlan-net

[AC1-wlan-view]vap-profile name wlan-vap  //创建VAP模板，配置业务数据转发模式、业务VLAN，并且引用安全模板和SSID模板

[AC1-wlan-vap-prof-wlan-vap]forward-mode tunnel

[AC1-wlan-vap-prof-wlan-vap]service-vlan vlan-pool sta-pool

[AC1-wlan-vap-prof-wlan-vap]security-profile wlan-security

[AC1-wlan-vap-prof-wlan-vap]ssid-profile wlan-ssid

[AC1-wlan-view]ap-group name ap-group1  //配置AP组引用VAP模板，AP上射频0和射频1都使用VAP模板配置

[AC1-wlan-ap-group-ap-group1]vap-profile wlan-vap wlan 1 radio all

7. 配置AP射频的信道和功率

[AC1-wlan-view]rrm-profile name default

[AC1-wlan-rrm-prof-default]calibrate auto-channel-select disable  //关闭射频的信道自动调优功能

[AC1-wlan-rrm-prof-default]calibrate auto-txpower-select disable  //关闭射频的功率自动调优功能

[AC1-wlan-view]ap-id 0  //配置AP射频0的信道和功率

[AC1-wlan-ap-0]radio 0

[AC1-wlan-radio-0/0]channel 20mhz 6

[AC1-wlan-radio-0/0]eirp 127

[AC1-wlan-ap-0]radio 1

[AC1-wlan-radio-0/1]channel 20mhz 149

[AC1-wlan-radio-0/1]eirp 127

8. 配置静态负载均衡功能

[AC1-wlan-view]sta-load-balance static-group name wlan-static  //创建静态负载均衡组

[AC1-wlan-sta-lb-static-wlan-static]start-threshold 15  //指定静态负载均衡起始阈值为15个

[AC1-wlan-sta-lb-static-wlan-static]gap-threshold 5  //指定静态负载均衡差值阈值为5%

[AC1-wlan-sta-lb-static-wlan-static]member ap-name ap1  //将AP加入静态负载均衡组

[AC1-wlan-sta-lb-static-wlan-static]member ap-name ap2

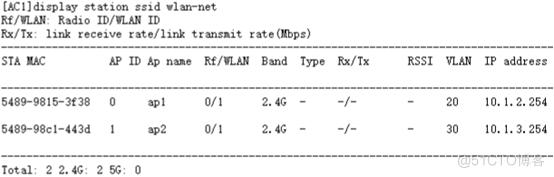

9. 验证配置
