Docker configuring MySQL Cluster

original text ：https://www.cnblogs.com/zhenghongxin/p/9228101.html

install docker

yum install -y docker

start-up docker

# start-up docker
systemctl start docker
# stop it docker
systemctl stop docker
# restart docker
systemctl restart docker

# see docker Has it been started?
docker ps

explain docker It's already started

install pxc colony

1、 obtain pxc Mirror image

# obtain pxc Mirror image
docker pull percona/percona-xtradb-cluster
# rename
docker tag percona/percona-xtradb-cluster pxc
# Check out the image list
docker images
----------------------------------------------------------------------------------------------
REPOSITORY                                 TAG                 IMAGE ID            CREATED             SIZE
docker.io/percona/percona-xtradb-cluster   latest              7ad1b9c338b6        5 weeks ago         413 MB
pxc                                        latest              7ad1b9c338b6        5 weeks ago         413 MB

2、 Create network segment net1（ Be careful not to contact the host ip Same paragraph , If there is a conflict, it will lead to the failure of external links docker Installed on mysql）

# Create network segment net1
docker network create --subnet=172.18.0.0/16 net1

# see net1 Network segment
docker inspect net1

# Delete net1 Network segment
docker network rm net1

3、 establish 5 Data volume （pxc Unable to directly access the data of the host , adopt docker Volume to store ）

# Creating a data volume
docker volume create v1
docker volume create v2
docker volume create v3
docker volume create v4
docker volume create v5

# View data volume
docker inspect v1

4、 establish 5 individual pxc node

# Create the 1 individual MySQL node
docker run -d -p 3306:3306 -e MYSQL_ROOT_PASSWORD=abc123456 -e CLUSTER_NAME=PXC -e XTRABACKUP_PASSWORD=abc123456 -v v1:/var/lib/mysql -v backup:/data --privileged --name=node1 --net=net1 --ip 172.18.0.2 pxc

--------------------------------------------------------------------------------
-d： Means running in the background
-v： mapping Docker Rolled into containers mysql Data directory
MYSQL_ROOT_PASSWORD： Indicates the created database password
CLUSTER_NAME：  Indicates the name of the created cluster
XTRABACKUP_PASSWORD： Indicates the cluster communication password
--privileged： Indicates that the highest permission is assigned
--net： Specify network segment
--ip： Appoint IP

wait for 2 Minutes later , Create a second node , Wait until the first node is instantiated , To open the second node instance , Otherwise, there may be an instant stop

# Create the 2 individual MySQL node
docker run -d -p 3307:3306 -e MYSQL_ROOT_PASSWORD=abc123456 -e CLUSTER_NAME=PXC -e XTRABACKUP_PASSWORD=abc123456 -e CLUSTER_JOIN=node1 -v v2:/var/lib/mysql -v backup:/data --privileged --name=node2 --net=net1 --ip 172.18.0.3 pxc
# Create the 3 individual MySQL node
docker run -d -p 3308:3306 -e MYSQL_ROOT_PASSWORD=abc123456 -e CLUSTER_NAME=PXC -e XTRABACKUP_PASSWORD=abc123456 -e CLUSTER_JOIN=node1 -v v3:/var/lib/mysql --privileged --name=node3 --net=net1 --ip 172.18.0.4 pxc
# Create the 4 individual MySQL node
docker run -d -p 3309:3306 -e MYSQL_ROOT_PASSWORD=abc123456 -e CLUSTER_NAME=PXC -e XTRABACKUP_PASSWORD=abc123456 -e CLUSTER_JOIN=node1 -v v4:/var/lib/mysql --privileged --name=node4 --net=net1 --ip 172.18.0.5 pxc
# Create the 5 individual MySQL node
docker run -d -p 3310:3306 -e MYSQL_ROOT_PASSWORD=abc123456 -e CLUSTER_NAME=PXC -e XTRABACKUP_PASSWORD=abc123456 -e CLUSTER_JOIN=node1 -v v5:/var/lib/mysql -v backup:/data --privileged --name=node5 --net=net1 --ip 172.18.0.6 pxc

5、 Look at the container mysql The node list

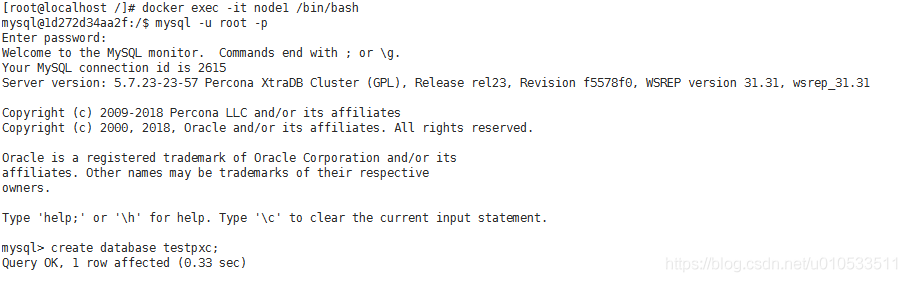

notice 5 All nodes have been started successfully , Enter any node to create a database , Observe others mysql Is it synchronized thus pxc The simple cluster has been built .

Be careful ： Use after the host computer restarts docker start node1   Failed to start any node , It is caused by the synchronization mechanism before the cluster , Start any node , This node will go to other nodes to synchronize data , Other nodes are still down , So the node failed to start , This is also pxc Strong consistency of clusters , The solution is , Delete all nodes docker rm node1 node2 node3 node4 node 5   And in the data volume grastate.dat file  , then , Re execute the command of cluster creation , Because the data is in the data volume , Rest assured , When the cluster restarts, the data is still there .（ If a node fails to start , You can delete this node , Then re execute the create command , The data will be synchronized ）

# Delete all nodes
docker rm node1 node2 node3 node4 node5
# In the output data volume grastate.dat file
rm -rf /var/lib/docker/volumes/v1/_data/grastate.dat
rm -rf /var/lib/docker/volumes/v2/_data/grastate.dat
rm -rf /var/lib/docker/volumes/v3/_data/grastate.dat
rm -rf /var/lib/docker/volumes/v4/_data/grastate.dat
rm -rf /var/lib/docker/volumes/v5/_data/grastate.dat

install Haproxy High availability and load balancing

1、 obtain haproxy Mirror image

docker pull haproxy

2、 To write Haproxy The configuration file

vim /home/soft/haproxy/haproxy.cfg



global
    # working directory
    chroot /usr/local/etc/haproxy
    # Log files , Use rsyslog In service local5 Log devices （/var/log/local5）, Grade info
    log 127.0.0.1 local5 info
    # The daemons run
    daemon
​
defaults
    log global
    mode    http
    # Log format
    option  httplog
    # The heartbeat detection record of load balancing is not recorded in the log
    option  dontlognull
    # Connection timeout （ millisecond ）
    timeout connect 5000
    # Client timeout （ millisecond ）
    timeout client  50000
    # Server timeout （ millisecond ）
    timeout server  50000
​
# Monitoring interface
listen  admin_stats
    # Monitoring access to the interface IP And port
    bind  0.0.0.0:8888
    # access protocol
    mode        http
    #URI Relative address
    stats uri   /dbs
    # Statistical report format
    stats realm     Global\ statistics
    # Login account information
    stats auth  admin:abc123456
# Database load balancing
listen  proxy-mysql
    # Access to the IP And port
    bind  0.0.0.0:3306
    # Network protocol
    mode  tcp
    # Load balancing algorithm （ Polling algorithm ）
    # Polling algorithm ：roundrobin
    # Weight algorithm ：static-rr
    # Least connection algorithm ：leastconn
    # Request source IP Algorithm ：source
    balance  roundrobin
    # Log format
    option  tcplog
    # stay MySQL Create an unauthorized haproxy user , The password is empty. .Haproxy Use this account for MySQL Database heartbeat detection
    option  mysql-check user haproxy
    server  MySQL_1 172.18.0.2:3306 check weight 1 maxconn 2000
    server  MySQL_2 172.18.0.3:3306 check weight 1 maxconn 2000
    server  MySQL_3 172.18.0.4:3306 check weight 1 maxconn 2000
    server  MySQL_4 172.18.0.5:3306 check weight 1 maxconn 2000
    server  MySQL_5 172.18.0.6:3306 check weight 1 maxconn 2000
    # Use keepalive Detect dead chain
    option  tcpka

stay MySQL Create an unauthorized haproxy user , The password is empty. .Haproxy Use this account for MySQL Database heartbeat detection

Create the 1 individual Haproxy Load balancing server

docker run -it -d -p 4001:8888 -p 4002:3306 -v /home/soft/haproxy:/usr/local/etc/haproxy --name h1 --privileged --net=net1 --ip 172.18.0.7 haproxy

Get into h1 Containers , start-up Haproxy

docker exec -it h1 bash
haproxy -f /usr/local/etc/haproxy/haproxy.cfg

Check to see if startup succeeded ：

visit http://ip:4001/dbs
