1. Algorithm description and some source code

       2DPSK Also known as relative phase shift keying , It does not use the absolute value of carrier phase to transmit digital information , Instead, digital information is transmitted with the relative carrier phase values of the front and rear symbols . The so-called relative carrier phase refers to the difference between the initial phase of this code and the previous symbol .

2. Preview of some simulation drawings

· String and parallel

The simulation results are as follows ：

Pictured , The input signal here is 1000001000_0110001010_0111101000

Get data after serial parallel （ Because of the delay 1 Symbols , The first value of the data is not included in the calculation , Not shown in the last bitmap ）：

I： 1 0 0 1 0   0 1 0 0 1   1 0 1 1 1 0

Q：0 0 0 0 0   1 0 0 0 0   0 1 1 0 0 0

· Level conversion

about 2/4 Level conversion , In fact, the input signal is 4 States （00,01,10,11） After coding, it becomes the corresponding 4 Level signal . The mapping relationship we choose here is shown in table 4-1 Shown .

The simulation results are as follows ：

The final rate becomes the of the original data 1/4 了 .

· Carrier modulation

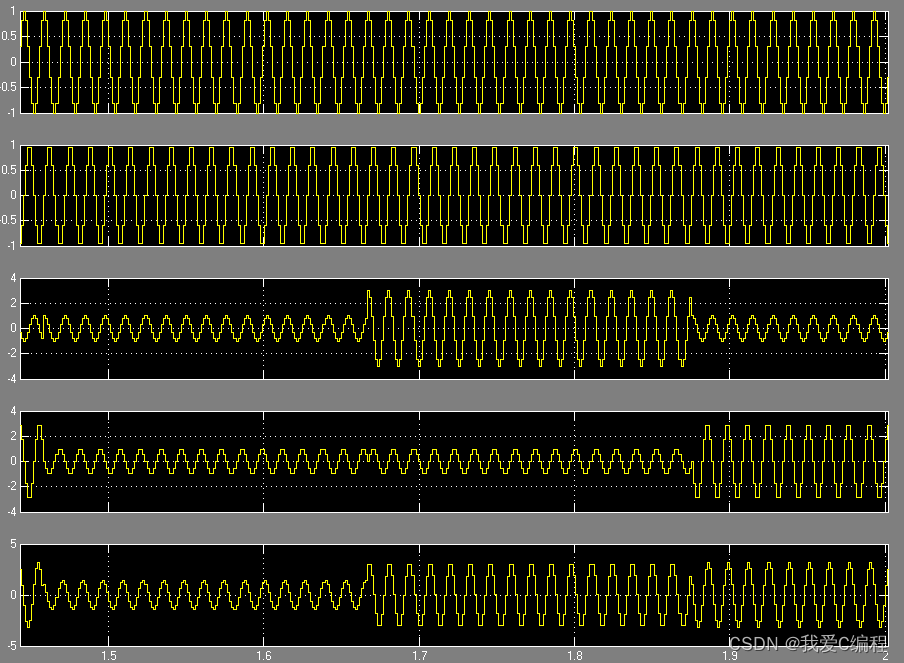

The simulation results of the model are as follows ：

· Add Gaussian white noise

This module is relatively simple , But what we need to pay attention to is ：

Its parameters include the input of the power of an input signal , So we need to add the following modules to the model ：

This module is to calculate the power of the signal , take 5.091 Enter it into the parameter setting .

The above is the simulation of the modulation part and the final constellation

Let's start the simulation demodulation part ：

· Down conversion

The simulation results are as follows ：

· wave filtering

  here , The module used by the filter is ：

· After level conversion, the following results are obtained ：

· Finally, parallel serial conversion

Through observation and previous data , Find the same , This shows that it is correct , Finally, add the bit error rate statistics module , The bit error rate is ：

This bit error rate is two times more than the delay at the beginning of transmission bit According to the information .

The bit error rate curve is simulated below ：

Because the bit error rate curve is in different SNR Simulated under , So here we need the help of MATLAB union Slimulink Conduct simulation .

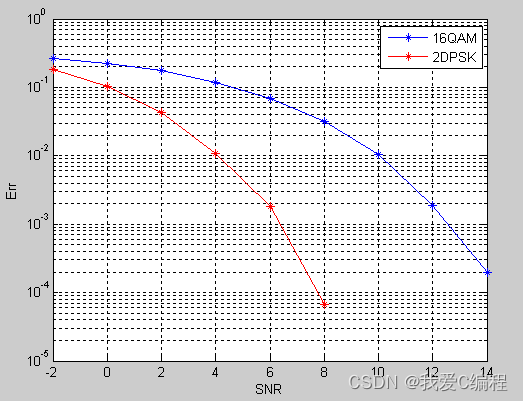

16QAM and 2DPSK Comparison of ：
