1. To write protobuf The configuration file determines the requirements

Want to publish local services as rpc service , The first point is to use protobuf, Generate corresponding Service Service .

Take login business as an example ：

The bottom is rpc Service . That is, the contract type

syntax = "proto3";

package fixbug;

option cc_generic_services = true;

message ResultCode
{

    int32 errcode = 1;
    bytes errmsg = 2;
}

message LoginRequest
{

    bytes name = 1;
    bytes pwd = 2;
}

message LoginResponse
{

    ResultCode result = 1;
    bool success = 2;
}

service UserServiceRpc
{

    rpc Login(LoginRequest) returns(LoginResponse);
}

2. Inherit the corresponding class and rewrite the virtual method

Write the configuration file , Generate C++ The corresponding header file and source file , It will generate The classes specified in the above configuration file （ Here is the UserServiceRpc）, There are corresponding methods .

class UserServiceRpc : public ::PROTOBUF_NAMESPACE_ID::Service {

 protected:
  // This class should be treated as an abstract interface.
  inline UserServiceRpc() {
    };
 public:
  virtual ~UserServiceRpc();

  typedef UserServiceRpc_Stub Stub;

  static const ::PROTOBUF_NAMESPACE_ID::ServiceDescriptor* descriptor();

  virtual void Login(::PROTOBUF_NAMESPACE_ID::RpcController* controller,
                       const ::fixbug::LoginRequest* request,
                       ::fixbug::LoginResponse* response,
                       ::google::protobuf::Closure* done);

  // implements Service ----------------------------------------------
  //  Omit ...

When I write business locally , First, inherit this class , And you need to rewrite the Login Method

class UserService : public fixbug::UserServiceRpc //  Use in rpc Service publisher
{

public:
    bool Login(std::string name, std::string pwd)
    {

        std::cout << "doing local service: Login " << std::endl;
        std::cout << "name: " << name << "pwd: " << name << std::endl;
        return true;
    }

    //  Override base class UserServiceRpc The virtual function , These methods are called directly by the framework
    virtual void Login(::google::protobuf::RpcController* controller,
                       const ::fixbug::LoginRequest* request,
                       ::fixbug::LoginResponse* response,
                       ::google::protobuf::Closure* done)
    {
    }
};

3. Business implementation

The first thing to understand is the calling process ：

As shown in the figure below ,caller The caller sends the request of this method to the network , from muduo Library to deal with , To callee Provider , After the provider is informed of this request , To find this method , This method is our business rewritten virtual method .

    virtual void Login(::google::protobuf::RpcController* controller,
                       const ::fixbug::LoginRequest* request,
                       ::fixbug::LoginResponse* response,
                       ::google::protobuf::Closure* done);

So for such a Login() Method , We need to understand the help of these parameters ：

First controller The pointer , Don't worry about his role here

request： The framework reports the request parameters to the business LoginRequest, The application can obtain the corresponding data for local business

Then it is very convenient to request data ：

std::string name = request->name();
std::string pwd = request->pwd();

Then you can do local business , Here we call the local Login() Method

 //  Do local business
bool login_result = Login(name, pwd);

Call this ：：

Then write the response message to the parameter response in ：

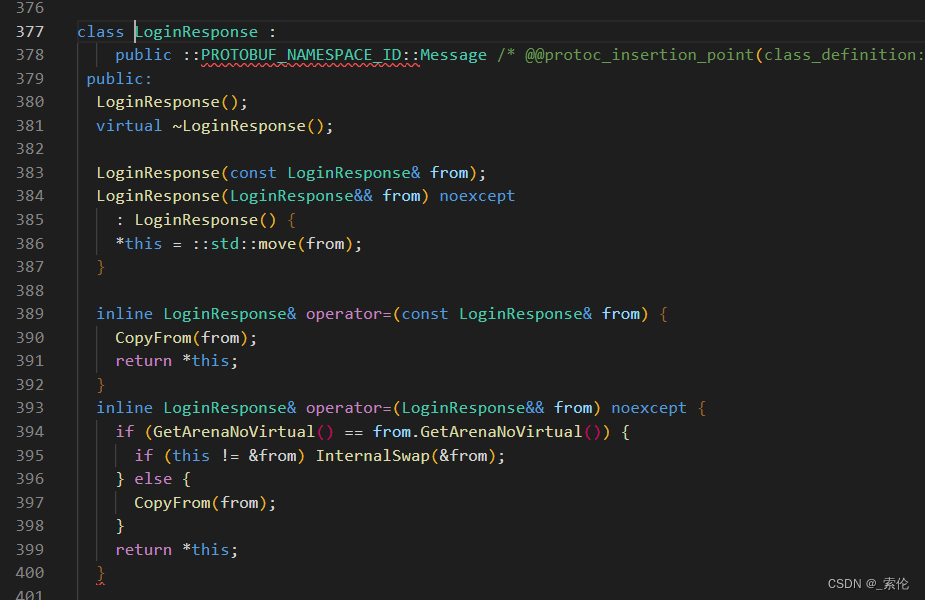

This LoginResponse And the above LoginRequest The request is also corresponding ：

Why is it in mutable_result() Fill in , This is in the last article 【protobuf Use 】 There are mentioned .

 //  Write the response to  （ Error code , Error message , Return value ）
fixbug::ResultCode* code = response->mutable_result();
code->set_errcode(0);
code->set_errmsg("");
response->set_success(login_result);

Finally, execute the callback operation , Perform the serialization and network sending of response object data .

protobuf This parameter is provided for us done, The type is Closure

//  Perform callback operations
done->Run();

Complete code ：

#include <iostream>
#include <string>
#include "user.pb.h"

/* UserService It was originally a local service , Provide local methods within two processes ,Login and GetFriendLists */

class UserService : public fixbug::UserServiceRpc //  Use in rpc Service publisher
{

public:
    bool Login(std::string name, std::string pwd)
    {

        std::cout << "doing local service: Login " << std::endl;
        std::cout << "name: " << name << "pwd: " << name << std::endl;
        return true;
    }

    //  Override base class UserServiceRpc The virtual function , These methods are called directly by the framework
    // 1. caller ==> Login(LoginRequest) ==> muduo ==> callee
    // 2. callee ==> Login(LoginRequest) ==>  To rewrite this method
    virtual void Login(::google::protobuf::RpcController* controller,
                       const ::fixbug::LoginRequest* request,
                       ::fixbug::LoginResponse* response,
                       ::google::protobuf::Closure* done)
    {

        //  The framework reports the request parameters to the business LoginRequest, The application obtains the corresponding data to do local business
        std::string name = request->name();
        std::string pwd = request->pwd();

        //  Do local business
        bool login_result = Login(name, pwd);

        //  Write the response to  （ Error code , Error message , Return value ）
        fixbug::ResultCode* code = response->mutable_result();
        code->set_errcode(0);
        code->set_errmsg("");
        response->set_success(login_result);

        //  Perform callback operations
        done->Run();
    }

};
