In the fifth and sixth classes, teacher Liu explained linear regression and logistic regression , Interested Taoist friends can go B Station search Lord Liu .

Linear regression

• among $\hat{y}$, It can be understood as observation value , The function of linear equation is to construct a function to calculate the observed value , Then according to the selected loss function , Calculate the error between the observed value and the actual value .

Four steps

• 1. Prepare the dataset
• 2. The design model
• 3. Construct loss function and optimizer
• 4. Cycle training （forward backward update）

# SGD AND LinearModel

import torch
#  Ignore the warning
import warnings
warnings.filterwarnings("ignore")
# Prepare the dataset
x_data = torch.Tensor([[1.0], [2.0],[3.0]])
y_data = torch.Tensor([[2.0], [4.0],[6.0]])

# The design model
class LinearModel(torch.nn.Module):# Here inherit torch Of module, Only forward No, backword The reason is that ,module It will automatically carry out back propagation
    def __init__(self):
        super(LinearModel,self).__init__() #  Call the parent class   Initialization process
        self.linear = torch.nn.Linear(1,1)  # Is the class that calls the linear function ,y= Ax +b  And give the initial value 1,1

    def forward(self, x):
        y_pred = self.linear(x)
        return y_pred

model = LinearModel()

# Construct loss function and optimizer
def SGD_LIST_Loss():
    #SDG_LIST_new = [] # The reason for creating the list here is , Follow up visual display
    criterion = torch.nn.MSELoss(size_average=False)
    optimizer = torch.optim.SGD(model.parameters(), lr = 0.01)
    #
    # optim Many optimizers in ,Adadelta、Adagrad、Adam etc.   I want to show different curves later , Put... Directly SGD Change it to the corresponding name
    # Interested Taoists can go to see the document  https://pytorch.org/docs/stable/optim.html
    for epoch in range(100):
        y_pred = model(x_data)
        loss = criterion(y_pred, y_data)
        print(epoch, loss.item())
        #SDG_LIST_new.append(loss.item())
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

    print("w = ", model.linear.weight.item())
    print("b = ", model.linear.bias.item())

    x_test = torch.Tensor([4.0])
    y_test = model(x_test)
    print("y_pred = ", y_test.data)

# Here is a simple visualization code   For Taoist friends to read
import matplotlib.pyplot as plt
plt.rcParams['font.sans-serif']=['Simhei'] # According to Chinese

x = range(len(Adam_list))
plt.figure(figsize=(30,10))
plt.title(" Loss function trend chart ")
plt.xlabel(" The number of iterations ")
plt.ylabel("LOSS value ")
plt.plot(x,SDG_LIST_new,'-',color='c',label="SDG_LIST")
plt.legend()

Logical regression

Introduce

• Logistic regression is not used to solve regression problems , It is used to solve classification problems .
• The difference between logical regression and linear regression is , Logistic regression adds SIGMOD function , Because it is used to solve classification problems , So the last thing we need is a probability value , That's what we're talking about P（X=x）.
  • Why sigmod function because sigmod Functions have good congenital conditions , For example, the value range [0,1], It's an increasing function , Is the saturation function （ When X After taking a certain value ,y Close to the extreme value ）.
  • sigmod There are actually many kinds of functions, but they are used most at present , It is also the most representative
    $$sigmod=\frac{1}{1+e^{-x}}$$
    So we agreed to call it , The function is sigmod function .

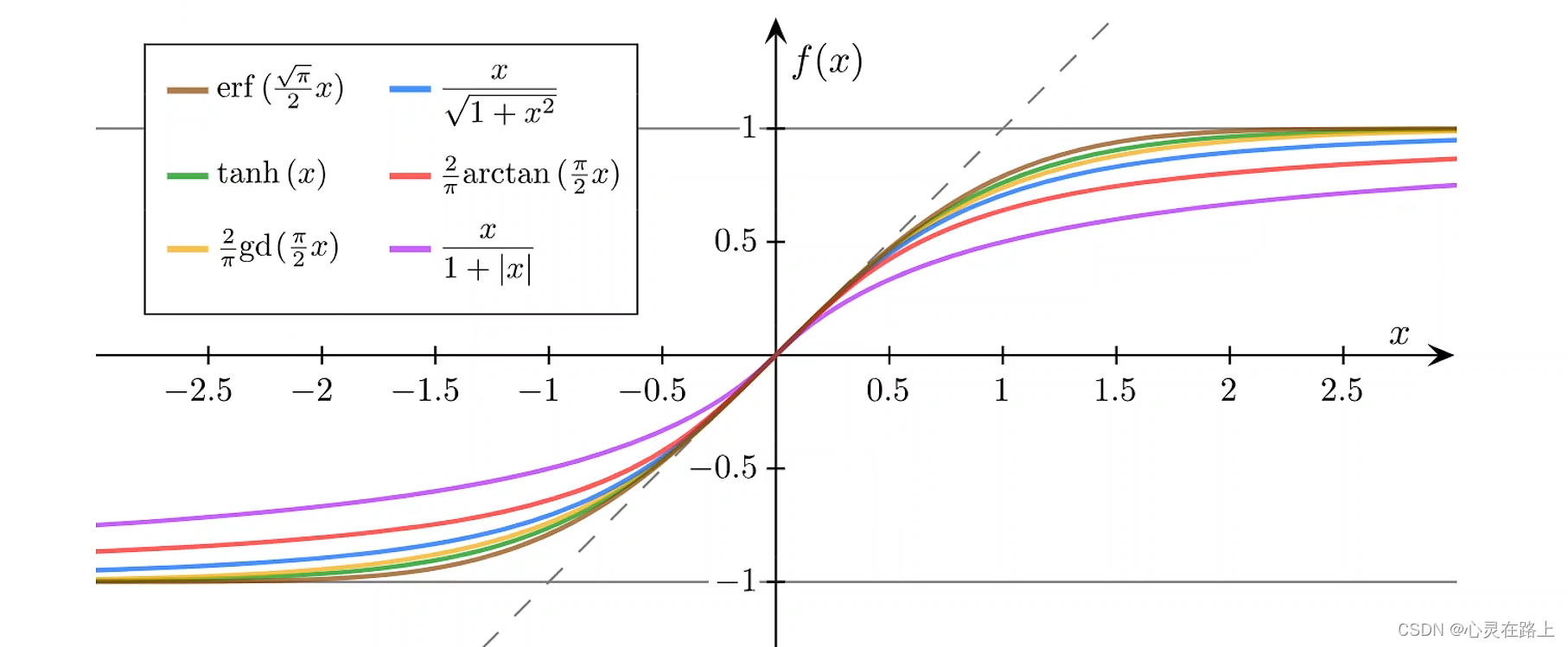

Here are others sigmod function

Loss function

• The loss function we use in logistic regression is called BCE.
• When we calculate the small batch data later , We will use Mini-Batch, That is to say Loss Sum and then average , Why add a minus sign ？ It is the same as gradient descent and gradient rise , Originally, the larger the value, the better , Plus the minus sign, the smaller the better .

#  Logical regression
import torchvision
# here root Parameters are where your data is saved , If you use this line of code directly, you may report an error ,
#  You can put it directly into the root directory , You can also create a new folder and put it , Pay attention to modifying the path
train_set = torchvision.datasets.MNIST(root="./datasets/mnist", train = True, download= True)
test_set = torchvision.datasets.MNIST(root="./datasets/mnist", train = False, download= True)
# There are other libraries , There are some different kinds of pictures , Download here is very slow , Almost 1700W Data
train_set_new = torchvision.datasets.CIFAR10(root="./datasets/mnist", train = True, download= True)
test_set_new = torchvision.datasets.CIFAR10(root="./datasets/mnist", train = True, download= True)

The code here is basically consistent with linear regression , Just modify some function names .

# 1、 Prepare the data
# 2、 Determine the model
# 3、 Build loss and optimizer
# 4、 Training

# If you run directly , There may be a mistake , as a result of anconda Medium libiomp5md.dll Conflict with library function , You can add the following two lines of code , It won't be wrong .
import os
os.environ['KMP_DUPLICATE_LIB_OK'] = 'True'

import torch.nn.functional as F
import torch
#  Ignore the warning
import warnings
warnings.filterwarnings("ignore")

x_data = torch.Tensor([[1.0], [2.0],[3.0]])
y_data = torch.Tensor([[0], [0],[1]])
class LogisticRegressionModel(torch.nn.Module):# Here inherit torch Of module, Only forward No, backword The reason is that ,module It will automatically carry out back propagation
    def __init__(self):
        super(LogisticRegressionModel,self).__init__() #  Call the parent class   Initialization process
        self.linear = torch.nn.Linear(1,1)  # Is the class that calls the linear function ,y= Ax +b  And give the initial value 1,1

    def forward(self, x):
        y_pred = F.sigmoid(self.linear(x))
        return y_pred

model = LogisticRegressionModel()
criterion = torch.nn.BCELoss(size_average=False)
optimizer = torch.optim.SGD(model.parameters(), lr = 0.01)
for epoch in range(1000):
    y_pred = model(x_data)
    loss = criterion(y_pred, y_data)
# print(epoch, loss.item())
    optimizer.zero_grad()
    loss.backward()
    optimizer.step()


import numpy as np
import matplotlib.pyplot as plt
x=np.linspace(0,10,200)
x_t = torch.Tensor(x).view((200,1))
y_t = model(x_t)
y = y_t.data.numpy()
plt.plot(x,y)
plt.plot([0,10],[0.5,0.5], c='r')
plt.xlabel ('Hours')
plt.ylabel('Probability of Pass')
plt.grid()
plt.show()
