1  Preface

        According to the report, China has 2.3 Billions of 60 Old people over , It accounts for one sixth of the total population of the country . Among the elderly , Yes 65% The above elderly people are all patients with chronic diseases , Among them, nearly 40 million disabled and semi disabled elderly , And the population is still growing at an accelerated rate , The health of the elderly has become a matter of close social concern . Most of the elderly suffer from some chronic diseases , They need long-term drugs to maintain the stability of the disease , Most elderly patients take many kinds of drugs everyday , The quantity is different , Drug packaging is very complicated , There will be various problems in the course of taking medicine . meanwhile , As the functions of the elderly deteriorate , Some old people have a rapid decline in memory , They often forget to take medicine , There are also many elderly people who do not take medicine according to the doctor's advice , Such problems often occur , This will not only affect the efficacy , It will also endanger the patient's life . In order to have a healthy body , Now most families are equipped with household medicine boxes , Prepare some emergency medicine in the medicine box to deal with emergencies . But common medicine boxes only store drugs , The humanized service design function is not involved . So , With the help of electronic technology , It is necessary to design a medicine box that can remind people to take medicine on time and accurately .

2  The system realizes the function

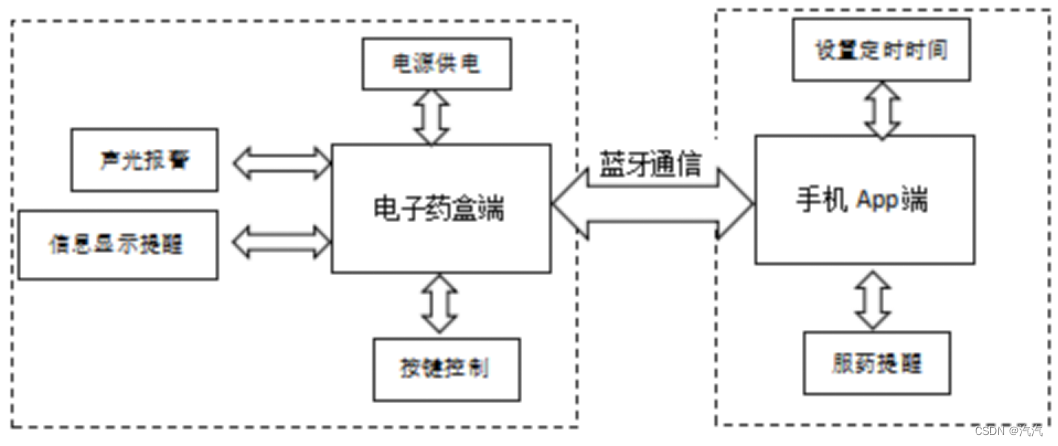

        The system design is mainly divided into electronic medicine box end and mobile phone App End , The electronic medicine box is used to remind people to take medicine on time and accurately , mobile phone App The end is mainly for setting the timing time and receiving medication reminders . The two parts of the system are mainly to urge users to take medicine on time and accurately , To reduce the health risks caused by forgetting to take medicine and taking the wrong medicine , Therefore, the whole function design of the system must start from the above requirements , The main function is audible and visual alarm to remind you to take medicine 、OLED Display information about taking medicine 、 Press the key to control the state of taking medicine 、 Bluetooth communication 、 mobile phone App Set timing time .

3  Hardware physical drawing

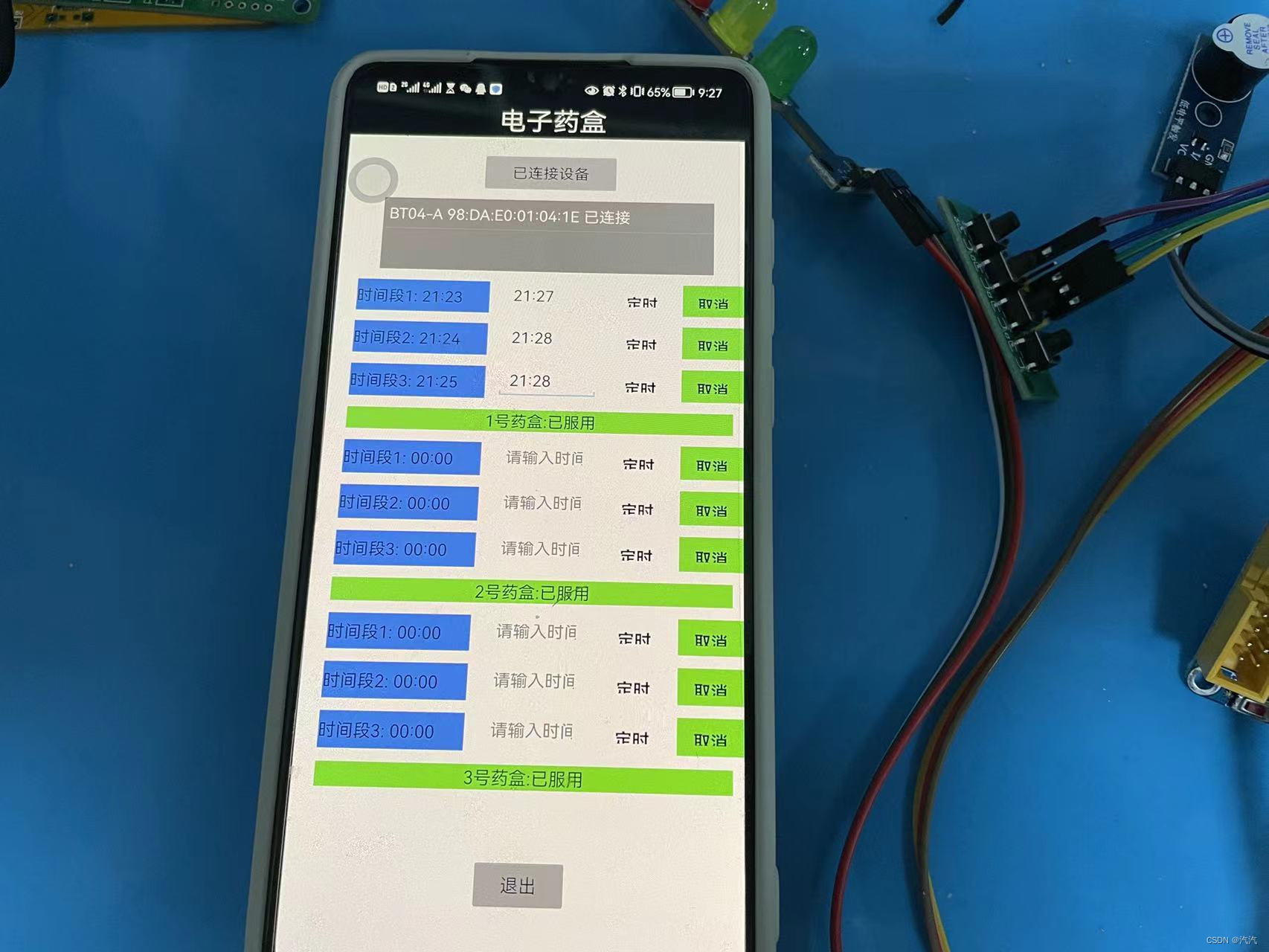

 4  mobile phone APP
