华为无线设备配置频谱导航

1. 配置LAW和AC，使AP与AC之间能够传输CAPWAP报文

[LSW1]vlan batch 10

[LSW1-GigabitEthernet0/0/1]port link-type trunk

[LSW1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10

[LSW1-GigabitEthernet0/0/2]port link-type trunk

[LSW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 10

[LSW1-GigabitEthernet0/0/2]port trunk pvid vlan 10

[AC1]vlan batch 10 20

[AC1-GigabitEthernet0/0/1]port link-type trunk

[AC1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10

2. 配置AC与上层网络设备互通

[AC1-GigabitEthernet0/0/2]port link-type trunk

[AC1-GigabitEthernet0/0/2]port trunk allow-pass vlan 20

[AC1-GigabitEthernet0/0/2]port trunk pvid vlan 20

3. 配置AC作为DHCP服务器，为STA和AP分配IP地址

[AC1]dhcp enable

[AC1-Vlanif10]ip add 10.1.1.1 24

[AC1-Vlanif10]dhcp select interface

[AC1-Vlanif20]ip add 10.1.2.1 24

[AC1-Vlanif20]dhcp select interface

4. 配置AP上线

[AC1]wlan

[AC1-wlan-view]ap-group name ap-group1  //创建AP组

[AC1-wlan-view]regulatory-domain-profile name domain1  //创建域管理模板，配置AC的国家码

[AC1-wlan-regulate-domain-domain1]country-code cn

[AC1-wlan-view]ap-group name ap-group1  //在AP组下引用域管理模板

[AC1-wlan-ap-group-ap-group1]regulatory-domain-profile domain1

[AC1]capwap source interface Vlanif 10  //配置AC的源接口

[AC1]wlan

[AC1-wlan-view]ap auth-mode mac-auth

[AC1-wlan-view]ap-id 0 ap-mac 00e0-fc63-2780  //在AC上离线导入AP

[AC1-wlan-ap-0]ap-name ap1

[AC1-wlan-ap-0]ap-group ap-group1  //将AP加入AP组

5. 配置WLAN业务参数

[AC1-wlan-view]security-profile name wlan-security  //创建安全模板，并配置安全策略

[AC1-wlan-sec-prof-wlan-security]security wpa2 psk pass-phrase [email protected] aes

[AC1-wlan-view]ssid-profile name wlan-ssid  //创建SSID模板，并配置SSID名称

[AC1-wlan-ssid-prof-wlan-ssid]ssid wlan-net

[AC1-wlan-view]vap-profile name wlan-vap  //创建VAP模板，配置业务数据转发模式、业务VLAN，并且引用安全模板和SSID模板

[AC1-wlan-vap-prof-wlan-vap]forward-mode tunnel

[AC1-wlan-vap-prof-wlan-vap]service-vlan vlan-id 20

[AC1-wlan-vap-prof-wlan-vap]security-profile wlan-security

[AC1-wlan-vap-prof-wlan-vap]ssid-profile wlan-ssid

[AC1-wlan-view]ap-group name ap-group1  //配置AP组引用VAP模板

[AC1-wlan-ap-group-ap-group1]vap-profile wlan-vap wlan 1 radio all

6. 配置频谱导航功能

[AC1-wlan-view]rrm-profile name band-steer  //创建RRM模板,并配置频谱导航射频间的负载均衡，以免某一频段负载过重。频谱导航射频间负载均衡的起始门限是15个，差值门限是25%

[AC1-wlan-rrm-prof-band-steer]band-steer balance start-threshold 15

[AC1-wlan-rrm-prof-band-steer]band-steer balance gap-threshold 25

[AC1-wlan-view]radio-2g-profile name radio2g  //创建2G射频模板,并在该模板下引用RRM模板

[AC1-wlan-radio-2g-prof-radio2g]rrm-profile band-steer

[AC1-wlan-view]ap-group name ap-group1  //的AP组下引用2G射频模板

[AC1-wlan-ap-group-ap-group1]radio-2g-profile radio2g radio all

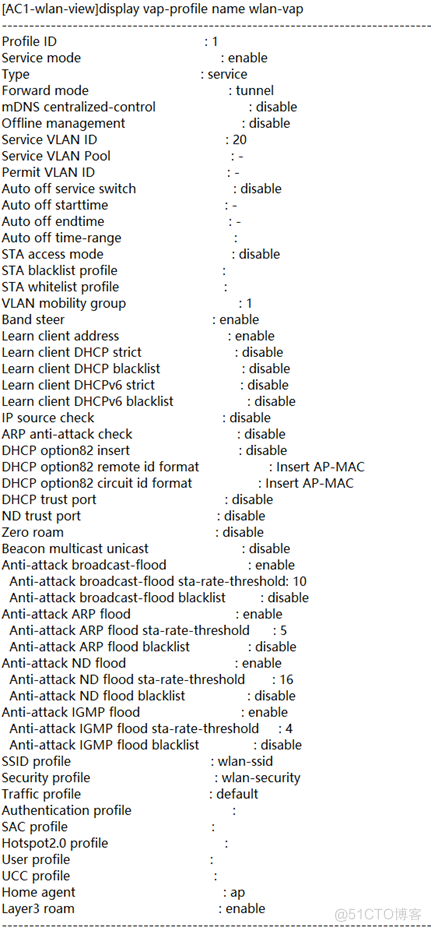

7. 验证配置
