Application of Apache E7 series industrial computer minipicecan card in meal delivery robot

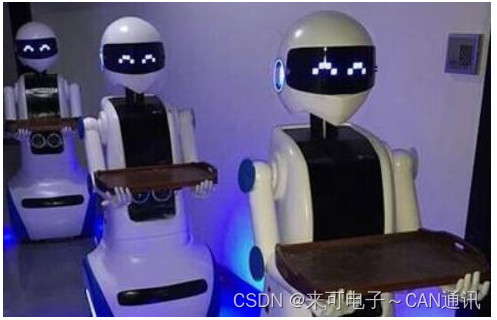

Restaurant delivery robots are already very popular , Especially in the medium and high-end restaurants in the first tier cities , Everyone is used to restaurant robots , The restaurant also has a lot of cost control , Next, Pu Shu technology introduces the four common functions of restaurant robots and the future development trend of restaurant robots .

One 、 There are four common functions of restaurant robots

1、 Walking movement
The robot can walk back and forth, left and right, and can bypass obstacles by itself ; If you encounter objects that cannot be bypassed, such as walls , The robot will stop moving by itself ;

2、 Navigation movement
Robots can build their own maps in unknown environments , And accurately locate the current position of the robot through sensors , Realize intelligent navigation movement .

3、 Touch screen interaction
The robot's screen can play music 、 Multimedia files such as videos , Users can realize various search functions by clicking the button on the human-computer interface .

4、 Voice interaction
Over Wireless Pad Mike of the remote control , Realize the voice conversation function between human and robot ; Such as : Say to Mike : Hello , The robot will answer : Hello .

Two 、 The future development trend of restaurant delivery robots

1、 Intelligent robot family
With the rapid development of information and life 、 Speed up the pace of work , People need to get rid of the complicated family work ; With the aging of China becoming more and more serious, this situation , More old people need to be taken care of , The demand for social security and services is also more urgent . The vast market of home service robots will be brewing , For example, home care robots 、 The toy robot 、 Security control robot 、 Cleaning robots will be needed .

2、 Intelligent robot modularization
at present , Robot technology is developing towards intelligent machines and intelligent systems , Its development trend is mainly : Modularization and reconfiguration of the structure ; Openness of control technology 、PC And networking ; Digitalization and decentralization of servo drive technology ; The practicality of multi-sensor fusion technology ; The optimization of working environment design, the flexibility of operation, and the networking and intellectualization of the system . And if you want to be really like TV 、 Computers and other household appliances are equally popular , The key lies in standardization and modularity .

3、 Intelligent robot industrialization
In the future, for the development of robot industrialization , The developed robot must be applied in practice , Using robots is the same as using other mechanical products , Is to determine the development goal , The second is to evaluate its cost , These two points are very important .

3、 ... and 、E7DS It is a high-performance multi I/O Embedded computer , use 14 Ultra low power consumption of nanotechnology 、64 Bit multi-core processor , Fully support the latest Intel? The sixth generation / The seventh generation of core i7/i5/i3 Surface level multi-core processor , collocation Q170 Industrial chipset , Dual channel support DDR4 Notebook memory , A single root can support 16GB. It can provide powerful computing performance and excellent image processing ability , Very suitable for images 、 Visual inspection 、 Measurement of dimensions 、 industrial automation 、 Security and high-resolution medical images have special requirements for image and computing capabilities .

Product features ：
Support Intel ?6/7 th Core? i7/i5/i3 Desktop multi-core processor , collocation Q170 Industrial chips
2x DDR4 SO-DIMM, The highest support 32GB, Dual channel support
3 An onboard display interface （1 individual DisplayPort+1 individual DVI-D+1 individual VGA）
Maximum scalability 9 individual USB Interface （6 External USB 3.0 Interface +1 Built in USB 3.0 A pin +1 Built in USB 2.0 A pin ）
Maximum scalability 6 individual intel Gigabit Network Interface （2 External interfaces +MXM Scalable 4 individual ）
Maximum scalability 8 A serial port （4 External DB9 Interface +2 Built in pins +MXM Scalable 2 individual )
3 Hard disk storage support (M.2-2242 built-in + external 2.5 Inch plug HDD+2.5 Inch built-in HDD)
2 A standard PCIe Slot support （1 individual PCIe 16x +1 individual PCIe 4x /1 individual PCI, Support full half height / Full height 、 Half length card ）
The power scheme is optional （ Standard configuration 12V_{19V Wide voltage input , Optional 9V}36V Wide voltage module ）
Industrial reinforced , Support -20℃ to +60℃ function （ Industrial grade SSD)

MCIeCAN series miniPCIe Interface CAN card , have 1~2 road CAN Passage and all the way PCI Express mini Interface , Plug into industrial computer or single board computer PCI Expressmini On the card slot , Quickly expand out 1~2 road CAN passageway .

CAN Interface electrical isolation up to 2500VDC, Have excellent EMC performance , Reliability test items ：ESD Contact discharge 8KV、 Surge ±1KV、 Pulse train ±2KV, Industrial grade , adopt CE-EMC and FCC authentication .

Supporting test software LCANTest Use , receive 、 send out 、 see 、 analysis 、 Record 、 The playback CAN message ; Supporting rich drivers ; Supporting library functions 、 Library function call description and secondary development package of rich routines ; Provide whole process expert guidance service .

In robot system minipcieCAN Card applications

Industry application description ：
PCI Express Mini Interface CAN The card can be quickly and conveniently extended for the industrial computer or single board computer in the robot system CAN passageway .
Special , Provide Windows(32/64 position )、Linux(32/64 position )、VXworks、QNX、INTime、Ubuntu Down drive 、 Library function 、 Header file description and examples .

characteristic ：
It's very small , Full card size 30×51×4.6 mm (W×L×H), Half card size is as small as 30×27×5.6 mm (W×L×H);
1/2 High speed with high isolation between signal and power supply CAN Interface ;
Provide Windows(32/64 position )、Linux(32/64 position )、VXworks、QNX、INTime、Ubuntu Down drive 、 Library function 、 Header file description and examples ;
Meet real time RTOS Time accurate and low delay CAN Communication requirements .
Solution ：

Now? , Many robot projects need to go CANbus Communications .PCI Express mini The industrial computer or single board computer with card slot can be expanded quickly 1~2 road CAN The sharp weapon of the passage .
As an open field communication protocol ,CAN Communication is widely used in embedded industrial control and Manufacturing Networks . at present , It is also widely used in the service robot industry CAN Communication does chassis motion control .CAN Communication gradually replaces pulses in motion control 、 Analog quantity 、RS232 Communication control , Become the mainstream control mode of service robot movement , Mainly because of the strong real-time 、 The transmission distance is long 、 Strong anti electromagnetic interference ability 、 Support one to many and broadcast centralized data transmission .
