Catalog

First step ：

download

The second step ：

install Keil v5

Add registration information

hit STM32 Patch

The third step ：

Open the project

Burn configuration

burn

First step ：

download

Prepare installation package and patch package , And the registration machine .

The second step ：

install Keil v5

If there is anti-virus software, such as 360, It's best to close it first , Otherwise, the warning will pop up all the time .

double-click “MDK524a.exe” Default installation all the way 、 Next step .

After installation, the following pop-up will pop up ：

First click cancel or close .

Add registration information

1. Run as administrator Keil v5 And registration machine ;
2. Open as administrator Keil Software ->File->License Managment;

3. Copy License Managment->Single-User License->Computer ID->CID Information ;

4. Paste CID Information to the corresponding location of the registration machine ,Target choice ARM, Select... From the drop-down box in the second row Professional, Click again Generate Button , Finally, copy the third line of information ;

  5. Paste the information generated in the previous step into License Managment->Single-User License->New License ID Code (LIC), And click the Add LIC that will do

So far, the installation has been completed , Then you can close the window .

hit STM32 Patch

double-click pack file , Default installation all the way 、 Click next .

The third step ：

Open the project

Find the item to burn , double-click ".uvprojx" File open project

Burn configuration

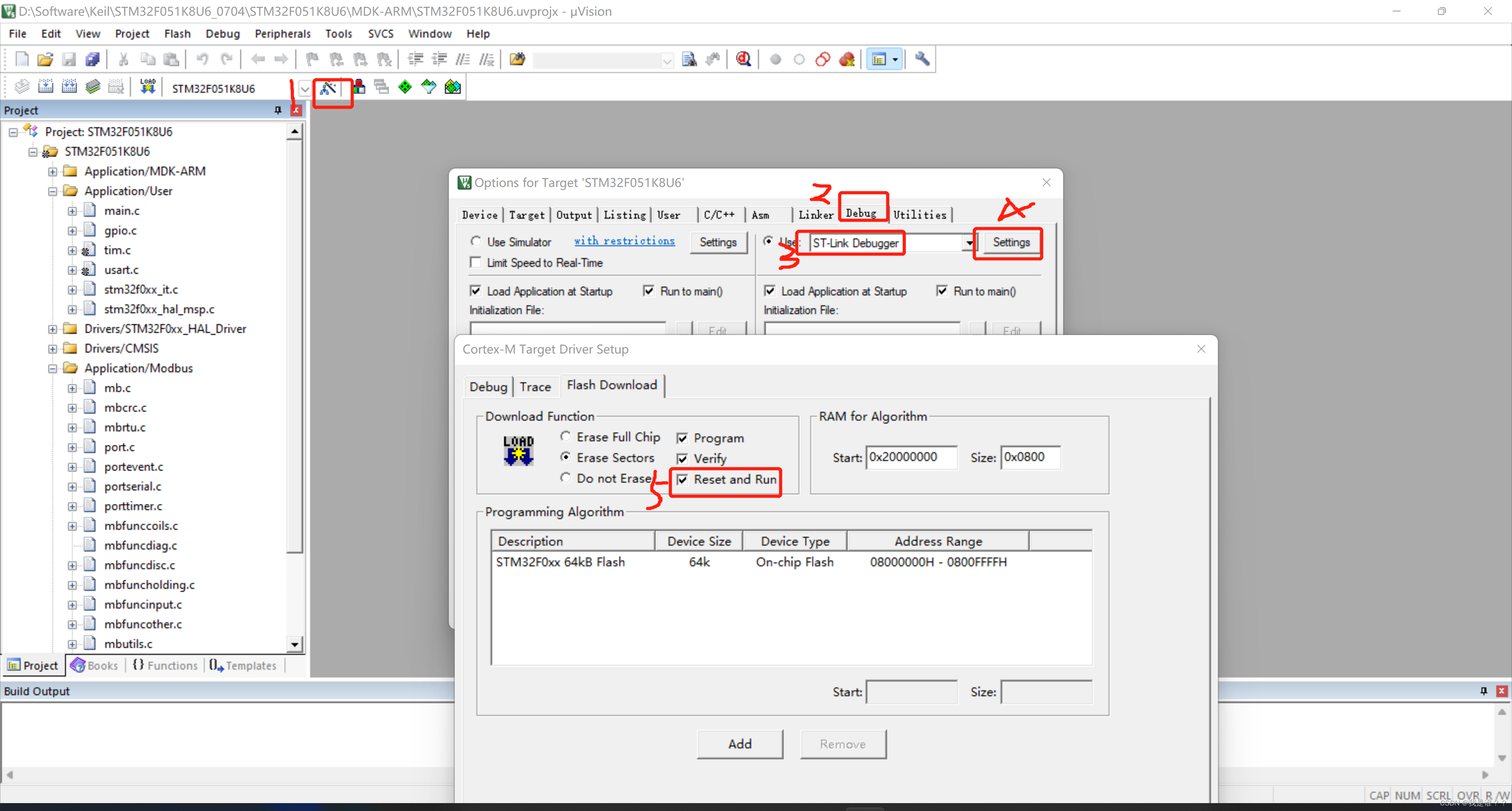

Click on the red box 1 A configuration window will pop up , Select the red box 2, Select the red box 3 Of ST-Linux Debugger, Then click on the red box 4 A small window will pop up and put the red box 5 Of “Reset and Run” Check on . Click OK to complete the configuration .

burn

Well connected ST-Link, After the connection is successful, click the download button in the figure below to complete the burning .
