[RT thread] NXP rt10xx sfud and fal component construction and use

Preparation before development

• Hardware platform ：nxp rt10xx Single chip microcomputer
• IDE: Keil
• spi The device drive framework has been built （ Use of this chapter spi2,flash Mount in this position ）

SFUD brief introduction

SFUD Full name Serial Flash Universal Driver, Is an open source serial SPI Flash Universal driver library . Because of the current market Flash Most of them are species , each Flash There are differences in the specifications and commands of , SFUD Just to solve these problems Flash Design according to the current situation , So that our products can support different brands and specifications of Flash, The improvement involves Flash The reusability and extensibility of functional software , At the same time, we can avoid Flash The risk of out of stock or out of production .

1.SFUD stay rt-thread Position in assembly

sfud The component is in the following path ,README Part has its detailed description ：

2.Env Environmental Science menuconfig To configure

open Env Get into RT-Thread Components -> Device Drivers Catalog , Select the following ：

3. Add... To the project SFUD

file ：spi_flash_sfud.c sfud.c sfud_sfdp.c And related header files

4. Application function test

Bottom IO initialization , Pay attention to our Flash Mount location , For the time being in this chapter spi Not qspi test

 	IOMUXC_SetPinMux(IOMUXC_GPIO_SD_B1_07_LPSPI2_SCK, 0U);
	// IOMUXC_SetPinMux(IOMUXC_GPIO_SD_B1_06_LPSPI2_PCS0, 0U); IOMUXC_GPIO_SD_B1_06_GPIO3_IO06
	IOMUXC_SetPinMux(IOMUXC_GPIO_SD_B1_08_LPSPI2_SD0, 0U);
	IOMUXC_SetPinMux(IOMUXC_GPIO_SD_B1_09_LPSPI2_SDI, 0U);

	IOMUXC_SetPinConfig(IOMUXC_GPIO_SD_B1_07_LPSPI2_SCK, 0x10B0u);
	// IOMUXC_SetPinConfig(IOMUXC_GPIO_SD_B1_06_LPSPI2_PCS0, 0x10B0u);
	IOMUXC_SetPinConfig(IOMUXC_GPIO_SD_B1_08_LPSPI2_SD0, 0x10B0u);
	IOMUXC_SetPinConfig(IOMUXC_GPIO_SD_B1_09_LPSPI2_SDI, 0x10B0u);

Method 1 , Mount in the code W25Q128 Block device , Then perform data reading ：

static int hw_spiflash_init(void)
{

	int result = RT_EOK;

	rt_hw_spi_device_attach("spi2", "spi20", GET_PIN(3, 6));

	if(RT_NULL == rt_sfud_flash_probe("W25Q128","spi20"))
	{

		rt_kprintf("probe fail w25q\r\n");
		return -RT_ERROR;
	}

    /* according to spi Equipment name , Query the attached SFUD Flash equipment */
    h_sfud_flash = rt_sfud_flash_find("spi20");
	if(RT_NULL == h_sfud_flash)
	{

		rt_kprintf("not find W25Q128\r\n");
		return -RT_ERROR;
	}

	rt_kprintf("spi flash name is %s \n",h_sfud_flash->name);

	h_sfud_flash = rt_sfud_flash_find_by_dev_name(h_sfud_flash->name);
	if(RT_NULL == h_sfud_flash)
	{

		rt_kprintf("not find flash devie \n");
	}

	sfud_read(h_sfud_flash,0,sizeof(readBuf),readBuf);

	return result;
}

Method 2 , Command line operations ：

In fact, it only needs spi2 Bus Correlation spi20 Just the equipment , The following code ：

rt_hw_spi_device_attach("spi2", "spi20", GET_PIN(3, 6));

FAL brief introduction

FAL (Flash Abstraction Layer) Flash Abstraction layer , It's right Flash And based on Flash Manage the partition of 、 The abstraction layer of the operation , For the upper echelon Flash ( The frame diagram is as follows )

1.Env Environmental Science menuconfig To configure

open Env Get into RT-Thread Components,FAL There are the following options （ This chapter will FAL and SFUD Directly related , So choose all ）：

Reference folder ：rt-thread->components->fal->samples->porting There's something about it , We will fal_cfg.h and fal_flash_sfud_port.c The files are copied to the upper level directory inc and src in , Modify the relevant content later

notes ：rt10xx differ stm32, User code section , Many only have plug-ins rom（flash,sd card ,emmc） start-up （ Not bootrom The officially cured film rom Code ）.

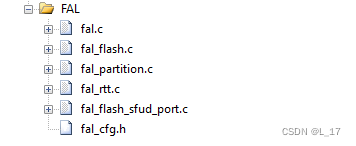

2. Add... To the project FAL Components

file ：fal.c fal_flash.c fal_partition.c fal_rtt.c fal_flash_sfud_port.c

3. modify fal_cfg.h and fal_flash_sfud_port.c

fal_cfg.h It's mainly about filling in the partition table , The contents are as follows ：

Partition structure ：

/** * FAL partition */
struct fal_partition
{

    uint32_t magic_word;

    /* partition name */
    char name[FAL_DEV_NAME_MAX];
    /* flash device name for partition */
    char flash_name[FAL_DEV_NAME_MAX];

    /* partition offset address on flash device */
    long offset;
    size_t len;

    uint32_t reserved;
};
typedef struct fal_partition *fal_partition_t;

#ifndef _FAL_CFG_H_
#define _FAL_CFG_H_

#include <rtthread.h>
#include <board.h>

/* enable SFUD flash driver sample */
#define FAL_FLASH_PORT_DRIVER_SFUD

extern struct fal_flash_dev flash_w25q;

/* flash device table */
#define FAL_FLASH_DEV_TABLE \ {
       \ &flash_w25q, \ }
/* ====================== Partition Configuration ========================== */
#ifdef FAL_PART_HAS_TABLE_CFG
/* partition table */
#define FAL_PART_TABLE \ {
       \ {
      FAL_PART_MAGIC_WROD, "bootloader", FAL_USING_NOR_FLASH_DEV_NAME, 0, 256 * 1024, 0}, \ {
      FAL_PART_MAGIC_WROD, "app", FAL_USING_NOR_FLASH_DEV_NAME, 256 * 1024, 768 * 1024, 0}, \ {
      FAL_PART_MAGIC_WROD, "preset", FAL_USING_NOR_FLASH_DEV_NAME, (1024) * 1024, 512 * 1024, 0}, \ {
      FAL_PART_MAGIC_WROD, "img", FAL_USING_NOR_FLASH_DEV_NAME, (1024 + 512) * 1024, 7 * 1024 * 1024, 0}, \ {
      FAL_PART_MAGIC_WROD, "filesystem", FAL_USING_NOR_FLASH_DEV_NAME, (1024 + 512 + 7 * 1024) * 1024, 7 * 1024 * 1024, 0}, \ }
#endif /* FAL_PART_HAS_TABLE_CFG */
#endif /* _FAL_CFG_H_ */

Modify file content ：fal_flash_sfud_port.c, take sfud and fal relation , Function data, etc. are registered to fal_flash_dev In the structure

/**************************************************START OF FILE*****************************************************/

/*------------------------------------------------------------------------------------------------------------------ Includes */
#include <fal.h>

#ifdef FAL_FLASH_PORT_DRIVER_SFUD
#include <sfud.h>
#include <spi_flash_sfud.h>


#ifndef FAL_USING_NOR_FLASH_DEV_NAME
#define FAL_USING_NOR_FLASH_DEV_NAME "W25Q128"
#endif

/*------------------------------------------------------------------------------------------------------------------ Functions */
static int init(void);
static int read(long offset, uint8_t *buf, size_t size);
static int write(long offset, const uint8_t *buf, size_t size);
static int erase(long offset, size_t size);

static sfud_flash_t h_sfud_dev = NULL;
struct fal_flash_dev flash_w25q =
{

	.name     = FAL_USING_NOR_FLASH_DEV_NAME,
	.addr     = 0,
	.len      = (16 * 1024 * 1024),
	.blk_size = 4096,
	.ops      = {
    init, read, write, erase},
	.write_gran = 1
};

static int init(void)
{

	if(RT_NULL == rt_sfud_flash_probe(FAL_USING_NOR_FLASH_DEV_NAME,"spi20"))
	{

		rt_kprintf("probe fail w25q\r\n");
		return -RT_ERROR;
	}

#ifdef RT_USING_SFUD
    /* RT-Thread RTOS platform */
    h_sfud_dev = rt_sfud_flash_find_by_dev_name(FAL_USING_NOR_FLASH_DEV_NAME);
#else
    /* bare metal platform */
    extern sfud_flash sfud_norflash0;
    h_sfud_dev = &sfud_norflash0;
#endif

    if (NULL == h_sfud_dev)
    {

        return -1;
    }

    /* update the flash chip information */
    flash_w25q.blk_size = h_sfud_dev->chip.erase_gran;
    flash_w25q.len = h_sfud_dev->chip.capacity;

    return 0;
}

static int read(long offset, uint8_t *buf, size_t size)
{

    sfud_read(h_sfud_dev, flash_w25q.addr + offset, size, buf);

    return size;
}

static int write(long offset, const uint8_t *buf, size_t size)
{

    if (sfud_write(h_sfud_dev, flash_w25q.addr + offset, size, buf) != SFUD_SUCCESS)
    {

        return -1;
    }

    return size;
}

static int erase(long offset, size_t size)
{

    if (sfud_erase(h_sfud_dev, flash_w25q.addr + offset, size) != SFUD_SUCCESS)
    {

        return -1;
    }

    return size;
}

#endif /* FAL_FLASH_PORT_DRIVER_SFUD */

/****************************************************END OF FILE*****************************************************/

4. Application function test

1. Bottom IO initialization , Refer to the front

2.SPI BUS Bus connection  SPI equipment
rt_hw_spi_device_attach("spi2", "spi20", GET_PIN(3, 6));

3. call fal Initialization function
fal_init();

4. operation  struct fal_flash_dev flash_w25q  Structure , Implement read and write operations, etc
flash_w25q.ops.read(0,readBuf,sizeof(readBuf));

Or omit the steps 4, Perform command line operations ：
