frp Achieve intranet penetration

Project address ：https://github.com/fatedier/frp/releases

This tool relies on a public network IP Of PC Or servers . The intranet penetration tool is used to solve the problem that there is no public network IP Problem. .

Baidu cloud disk download address can be obtained at the end of the text

download ：frp_windwos_amd64.zip This (amd64 yes 64 System ,386 yes 32 Bit system , Now the computer is basically 64 Yes. ), such as frp_0.33.0_windows_amd64.zip

frp It is a high performance reverse proxy application for intranet penetration , Support tcp, udp agreement , by http and https Application protocols provide additional capabilities , And try to support point-to-point penetration . The name is actually used Fast Reverse Proxy An acronym for . The structure is as follows ：

Case study : Put the intranet Linux On the server web The website is mapped to the public network

Before making specific configuration , According to the corresponding operating system and architecture , from github Page download the latest version of the program .

take  frps  And  frps.ini  Put it on the Internet IP On the machine . Please pay attention to configuring the firewall or security group to release the ports used in the configuration file .

take  frpc  And  frpc.ini  Put it on a machine in an intranet environment .

On the public network windows Upper Department frps

First step ： Upload frp_0.39.1_windows_386 To the public network Windows Server

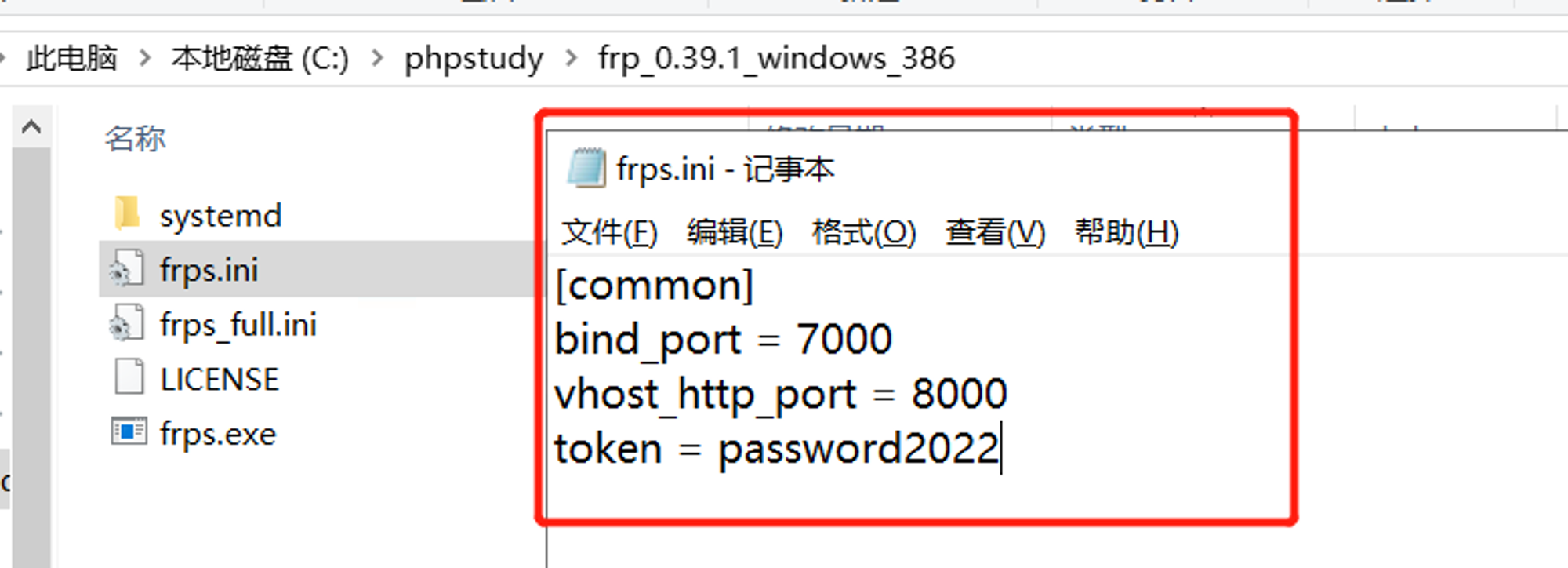

The second step ： Modify file frps.ini file

The third step ： stay cmd Start... By entering the following command in frps.exe Program

appear  frps started successfully  representative frps Successful launch ;

On the Intranet liunx Upper Department frpc

Step four ： hold frpc Upload to the local intranet liunx On the server and extract the file

Step five ： edit frpc.ini ( You need to have your own domain name )

Step six ： start-up frpc, appear [web] start proxy success that will do

Access in browser

Step seven : Successfully accessed on the browser

Use scenarios

1. adopt rdp Visit the home machine

modify frps.ini file , For safety's sake , It's best to configure authentication here , Server and client common The configuration of the   token   If the parameters are consistent, the authentication passes ：

# frps.ini
[common]
bind_port = 7000
#  For authentication , Please modify , Ensure that the server is consistent with the client
token = password2022

start-up frps：

Linux Start the ：

./frps -c ./frps.ini

windows Upper use

frps.exe -c ./frps.ini

modify frpc.ini file , hypothesis frps The public network of the server IP by x.x.x.x：

# frpc.ini
[common]
server_addr = x.x.x.x
server_port = 7000

For authentication , Please modify , Ensure that the server is consistent with the client

token = password2022

[rdp] type = tcp local_ip = 127.0.0.1 local_port = 3389 remote_port = 6000

start-up frpc：

./frpc -c ./frpc.ini

frpc.exe -c ./frpc.ini

 adopt  rdp  Access remote machines , The address is ：

x.x.x.x:6000

Boot from boot

in the light of Windows System , For ease of use , It can be configured to start silently when starting up . stay frpc.exe Create a start_frpc.vbs：

start_frpc.vbs Please modify the path according to the actual situation

CreateObject("WScript.Shell").Run """D:\Program Files\frp_windows_amd64\frpc.exe""" & "-c" & """D:\Program Files\frp_windows_amd64\frpc.ini""",0

Copy start_frpc.vbs file , Open the following directory , Pay attention to  <USER_NAME>  Change it to your user name ：

`C:\Users\<USER_NAME>\AppData\Roaming\Microsoft\Windows\Start Menu\Programs\Startup`

1. Right mouse click , Paste as a shortcut .

2. adopt SSH Access the company intranet machine

frps The deployment steps are the same as above . start-up frpc, The configuration is as follows ：

frpc.ini
[common]
server_addr = x.x.x.x
server_port = 7000

For authentication , Please modify , Ensure that the server is consistent with the client

token = abcdefgh

[ssh] type = tcp local_ip = 127.0.0.1 local_port = 22 remote_port = 6000

adopt SSH Access intranet machine , Suppose the user name is test：

ssh -oPort=6000 [email protected]

3. Access to intranet deployed through a custom domain name Web service

Sometimes we want others to access or test our local... Through domain names Web service , But because the local machine has no public network IP, Unable to resolve domain name to local machine , adopt frp You can do this , The following example is http service ,https The service configuration method is the same , vhost_http_port Replace with vhost_https_port, type Set to https that will do . modify frps.ini file , Set up http Access port is 8080：

frps.ini
[common]
bind_port = 7000
vhost_http_port = 8080

For authentication , Please modify , Ensure that the server is consistent with the client

token = abcdefgh

 start-up  frps：

./frps -c ./frps.ini

 modify  frpc.ini  file , hypothesis  frps  Of the server  IP  by  x.x.x.x,local_port  On the local machine  Web  The port corresponding to the service ,  Bind custom domain name  `www.yourdomain.com`:

frpc.ini

[common]
server_addr = x.x.x.x
server_port = 7000

For authentication , Please modify , Ensure that the server is consistent with the client

token = abcdefgh

[web] type = http local_port = 80 custom_domains = ctf.caichuanqi.cn

start-up frpc：

./frpc -c ./frpc.ini`

1. take  ctf.caichuanqi.cn  Domain name of A The record resolves to IP  x.x.x.x , If the server already has a corresponding domain name , Can also be CNAME The record resolves to the original domain name of the server .
2. Access... Through a browser   http://ctf.caichuanqi.cn:8080   You can access the machine on the intranet Web service .

4. Provide simple external file access services

adopt   static_file   The plug-in can provide a simple interface based on HTTP File access service .

frps The deployment steps are the same as above . start-up frpc, Enable   static_file   plug-in unit , The configuration is as follows ：

frpc.ini [common] server_addr = x.x.x.x server_port = 7000

For authentication , Please modify , Ensure that the server is consistent with the client

token = abcdefgh

[test_static_file] type = tcp remote_port = 6000 plugin = static_file

Directory of files to be exposed

plugin_local_path = /tmp/file

visit url Prefixes to be removed from , The reserved content is the file path to be accessed

plugin_strip_prefix = static plugin_http_user = abc plugin_http_passwd = abc

Access... Through a browser   To see where   /tmp/file   In the catalog  http://x.x.x.x:6000/static/   file , You will be asked to enter the set user name and password .

Common functions

Statistics panel (Dashboard)

View... Through a browser frp Status and agent statistics display .

notes ：Dashboard Not yet for a large number of proxy Optimize data presentation , If appear Dashboard Slow access , Please do not enable this feature .

Need to be in frps.ini It is specified in dashboard The port used by the service , This function can be turned on ：

Open the browser through   http://[server_addr]:7500   visit dashboard Interface , The default username and password is   admin .

Encryption and compression

These two functions are not enabled by default , Need to be in frpc.ini Enables encryption and compression for the specified agent through configuration , The compression algorithm uses snappy：

If the company's intranet firewall has carried out traffic identification and shielding for external network access , For example, it's banned SSH Agreements, etc , By setting  use_encryption = true, take frpc And frps Encrypted transmission of communication content between , Will effectively prevent traffic from being intercepted .

If the transmitted message length is long , By setting  use_compression = true  Compress the transmitted content , Can effectively reduce frpc And frps Network traffic between , Speed up traffic forwarding , But it will consume some extra CPU resources .

TLS

from v0.25.0 Version start frpc and frps Support between TLS Protocol encrypted transmission . By means of   frpc.ini   Of  common  Middle configuration   tls_enable = true   To enable this feature , safer .

For port multiplexing ,frp establish TLS The first byte of the connection is 0x17.

Be careful ： When this function is enabled, except xtcp Outside , No need to set again use_encryption.

Proxy speed limit

At present, it supports setting the speed limit of the agent level in the agent configuration of the client , Limit individual proxy Available bandwidth .

Add... In the agent configuration   bandwidth_limit   Field enables this feature , Currently only supported  MB  and  KB  Company .

Range port mapping

stay frpc Mapping multiple ports can be specified in the configuration file of , Currently only supported tcp and udp The type of .

This function passes through  range:  Paragraph markers to achieve , The client will parse the configuration in this tag , Split it into multiple proxy, every last proxy Name with numbers as suffixes .

For example, to map local 6000-6005, 6007 this 6 Ports , The main configuration is as follows ：

After the actual connection is successful, it will create 8 individual proxy, Name it   test_tcp_0, test_tcp_1 ... test_tcp_7.

More configuration

because frp Currently, there are many supported functions and configuration items , For a complete sample configuration file, refer to ：

frps Full profile

frpc Full profile
