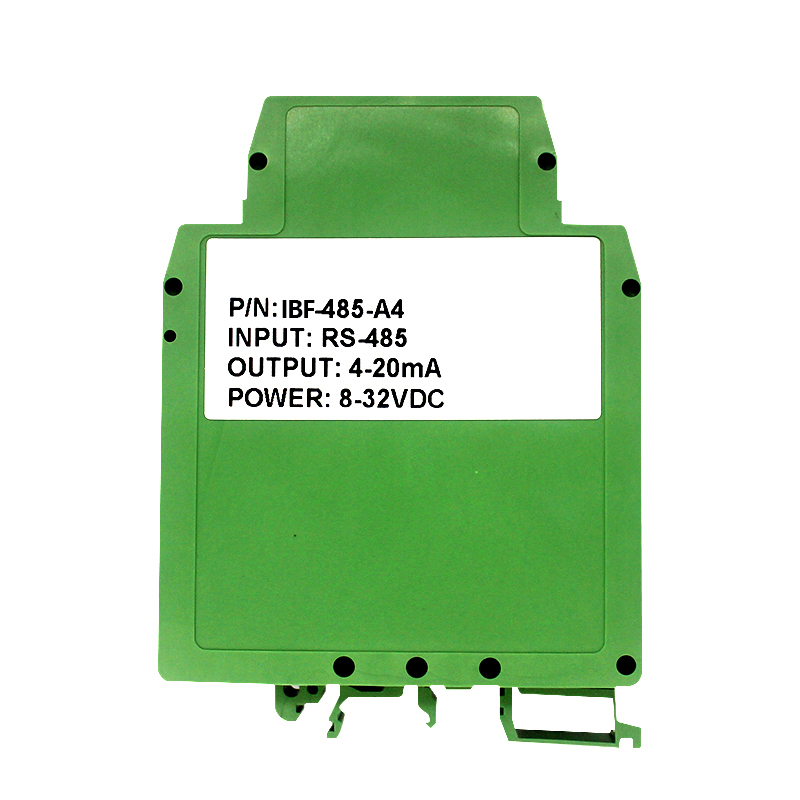

Rs-485/232 to 4-20ma/0-10v isolated d/a converter

IBF32 Series of products realize host RS-485/232 The interface signal is isolated and converted into standard analog signal , Used to control remote devices .IBF32 Series products can be used in RS-232/RS-485 Bus industrial automation control system ,4-20mA,0-5V,0-10V Wait for standard signal output , Executive equipment used to control industrial sites , Control equipment and display instruments, etc .
Products include power isolation , Signal isolation 、 Linearization ,D/A Conversion and RS-485 serial communication . Each serial port can be connected to at most 255 only IBF32 Series modules , Communication mode adopted ASCII Communication protocols and codes MODBUS RTU Communication protocol , Automatically identify the communication protocol and reply , Baud rate can be set by code , It can be hung in the same place with the control module of other manufacturers RS-485 On the bus , Easy to program .
IBF32 The series of products are based on the intelligent monitoring and control system of single chip microcomputer , All user set calibration values , Address , Baud rate , data format , Configuration information such as checksums and status is stored in nonvolatile memory EEPROM in .
IBF32 The series products are designed according to industrial standards 、 manufacture , Signal output / Isolation between communication interfaces , affordable 3000VDC Isolation voltage , Strong anti-interference ability , High reliability . Operating temperature range - 45℃～+80℃.
