[embedded unit test] construction of C language unit test framework

The unit test framework is a software package , It allows developers to easily express what kind of behavior the product code needs to show . The unit testing framework provides a solution to automate unit testing , Let developers pay more attention to the design and writing of test cases , Instead of thinking about how to organize test cases .

cmocka It's an elegant C Language unit testing framework , Support simulation objects . It just needs standard C library , It is suitable for all kinds of computing platforms (Linux、windows, And embedded ).
In theory ,cmocka It can support any standard C Cross compiler of Library .

This article will introduce how to use the embedded environment ( Cross compilation ) build cmocka Unit test environment , as well as cmocka Simple example of use .

cmocka Cross compilation

Source download

Up to date 1.1.5 edition , For embedded environments , We need to download the source code for cross compilation

cmocka1.1 Source code download address

Here we use cmocka-1.1.5.tar.xz For example .

Compilation preparation

Put the above source code in linux Decompression in the environment , And create a new compilation directory in the same level directory of the source code build_dir

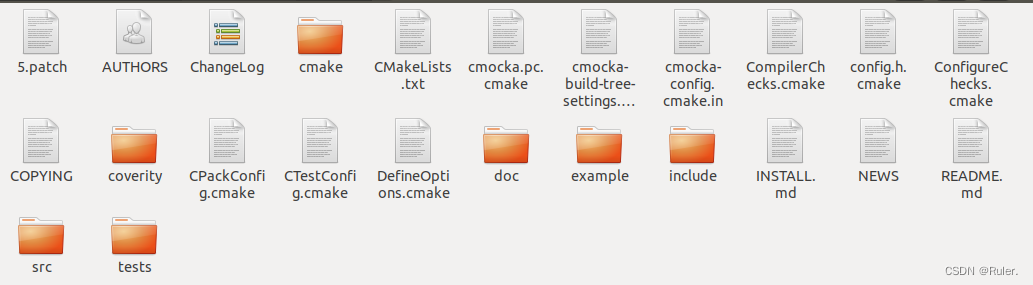

cmocka-1.1.5 The contents are as follows ：

Source code modification

Get into cmocka-1.1.5 Source directory , Modify the top level CMakeLists.txt, Note out the following line .
doc Components require specific library support , Embedded environments generally do not have this library , And this is just generating code comments , No effect on function , So annotate it .

# add_subdirectory(doc)

Specify compiler

The next in build_dir Create a new configuration file at the same level of directory arm64_setup.cmake（ The file name is optional ）

The contents of the document are as follows ：

set(CMAKE_SYSTEM_NAME Linux)
set(CMAKE_SYSTEM_PROCESSOR arm64)

set(tools /mnt/opt/compile_tools/bin/)
set(CMAKE_C_COMPILER ${tools}/aarch64-openwrt-linux-gcc)
set(CMAKE_CXX_COMPILER ${tools}/aarch64-openwrt-linux-g++)

• CMAKE_SYSTEM_NAME Specify the embedded system type
• CMAKE_SYSTEM_PROCESSOR Specify the embedded platform
• tools Cross compiler path （ Subject to the actual path ）
• CMAKE_C_COMPILER C Cross compiler
• CMAKE_CXX_COMPILER C++ Cross compiler

compile

Compilation needs to enter build_dir Catalog , First execute the following command to generate the necessary configuration and makefile file

$ cd build_dir
$ cmake -DCMAKE_TOOLCHAIN_FILE=../arm64_setup.cmake -DBUILD_STATIC_LIB=ON ../cmocka-1.1.5/

• -DCMAKE_TOOLCHAIN_FILE Is to specify the compiler configuration file just created
• -DBUILD_STATIC_LIB=ON Is to compile and generate static libraries , Removing this sentence will only generate dynamic libraries
• ../cmocka-1.1.5/ Appoint cmocka Source directory

If the above steps are correct , So in build_dir Several directories and files should be generated , Among them is makefile, Next make Recompile, .

$ make

The following prompt indicates that the compilation is successful ：

Scanning dependencies of target cmocka
[  4%] Building C object src/CMakeFiles/cmocka.dir/cmocka.c.o
......
[100%] Linking C executable test_uptime
[100%] Built target test_uptime

if necessary clean, Directly in build_dir Directory execution make clean You can't , because Cmake I won't support it . The simplest way is to build_dir The directory can be emptied manually .

Check... After compilation build_dir/src, It will generate the dynamic library or static library we need .
Use file Instructions can see that this dynamic library is ARM aarch64 Platform , It shows that our cross compilation is successful .

$ build_dir/src$ ls
CMakeFiles           libcmocka.so    libcmocka.so.0.7.0  Makefile
cmake_install.cmake  libcmocka.so.0  libcmocka-static.a

$ file libcmocka.so.0.7.0
libcmocka.so.0.7.0: ELF 64-bit LSB shared object, ARM aarch64, version 1 (SYSV), dynamically linked, with debug_info, not stripped

in addition ,build_dir/example Some examples will also be generated under the directory demo, It can run directly on the development board .

$ build_dir/example$ ls
allocate_module_test  CMakeFiles           Makefile
assert_macro_test     cmake_install.cmake  mock
assert_module_test    CTestTestfile.cmake  simple_test
$ file simple_test
simple_test: ELF 64-bit LSB executable, ARM aarch64, version 1 (SYSV), dynamically linked, interpreter /lib/ld-musl-aarch64.so.1, with debug_info, not stripped

With libcmocka, Add... In the source code cmocka.h, I can use cmocka Provided API Compile our own unit test code .

cmocka.h be located cmocka Source code include Catalog

cmocka Examples of use

The test code is as follows ：

$ tree hello/
hello/
├── inc
│   └── cmocka.h
├── libs
│   ├── libcmocka.so
│   └── libcmocka-static.a
├── makefile
└── src
    └── hello_cmocka.c

• libs Folder main repository file , Recommended libcmocka Static library , The advantage of using static libraries is that the compiled binary files can be run directly on the development board , If it is a dynamic library, it also needs to be installed on the development board , The disadvantage of static library is the large volume of compiled products .

Example makefile The documents are as follows :

#source file
SOURCE  += $(wildcard ./src/*.c)
OBJS    := $(patsubst %.c,%.o,$(patsubst %.cpp,%.o,$(SOURCE)))

TARGET  := hello_cmocka

#compile and lib parameter
CC      := aarch64-openwrt-linux-gcc
LIBS    := -lcmocka-static
LDFLAGS := -L./libs
DEFINES :=
INCLUDE := -I./inc/
CFLAGS  := -g -Wno-unused-variable -O3 $(DEFINES) $(INCLUDE)
CXXFLAGS:= $(CFLAGS)

.PHONY:

all : $(TARGET)
objs : $(OBJS)

clean :
	rm -fr ./src/*.o
	rm -fr $(TARGET)

$(TARGET) : $(OBJS)
	$(CC) $(CXXFLAGS) -o [email protected] $(OBJS) $(LDFLAGS) $(LIBS)

Example hello_cmocka.c as follows ：

#include <stdarg.h>
#include <stdio.h>
#include <setjmp.h>
#include <stddef.h>
#include <stdint.h>
#include <unistd.h>
#include <stdlib.h>
#include <string.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <sys/ioctl.h>
#include <cmocka.h>

static int add(int a ,int b)
{

	return a+b;
}

static char* print_string(int num)
{

	switch(num)
	{

		case 1: return "CASE1";
		case 2: return "CASE2";
		default: return "NOT SUPPORT";
	}

	return "NOT SUPPORT";
}

static void test_demo1(void **state)
{

    int ret = add(3,2);
	assert_int_equal(ret, 5);

	(void) state;
}
static void test_demo2(void **state)
{

  int ret = add(3,2);
	assert_int_equal(ret, 0);

	(void) state;
}

static void test_demo3(void **state)
{

  char *p = print_string(1);
	assert_string_equal(p, "CASE1");

	(void) state;
}

int main(void)
{

	const struct CMUnitTest tests[] = {

		cmocka_unit_test(test_demo1),
		cmocka_unit_test(test_demo2),
		cmocka_unit_test(test_demo3),
	};

	return cmocka_run_group_tests(tests, NULL, NULL);
}

The operation results are as follows ：

# ./hello_cmocka
[==========] Running 3 test(s).
[ RUN      ] test_demo1
[       OK ] test_demo1
[ RUN      ] test_demo2
[  ERROR   ] --- 0x5 != 0
[   LINE   ] --- src/hello_cmocka.c:46: error: Failure!
[  FAILED  ] test_demo2
[ RUN      ] test_demo3
[       OK ] test_demo3
[==========] 3 test(s) run.
[  PASSED  ] 2 test(s).
[  FAILED  ] 1 test(s), listed below:
[  FAILED  ] test_demo2

 1 FAILED TEST(S)

Tips test_demo2 Test to fail , as a result of 0x5 != 0,test_demo2 The expected result is 0, Actual return 5, Fall short of expectations , So the test failed .
assert_int_equal() Is a judgment int Type the results ,assert_string_equal() Is a judgment const char * Result of type . besides ,cmocka More other tests are also provided API, Please refer to cmocka.h.

common problem

1. Compile error

/cmocka-1.1.5/include/cmocka.h:132:28: error: conflicting types for 'uintptr_t'
typedef unsigned int uintptr_t;
/mnt/opt/include/bits/alltypes.h:109:24: note: previous declaration of 'uintptr_t' was here
 typedef unsigned _Addr uintptr_t;

cmocka Source code uintptr_t The definition conflicts with the definition in our cross compiler , Here, you only need to comment out the definitions in the compiler for the time being , Finished compiling cmocka Just change it back .

2. Other compilation problems

cmocka Only standards are used C library , Its cross platform compatibility is very good . therefore , Most cross compilers should be supported ( Unless your compiler version is very low , Yes C The library is not fully supported ).
therefore , Cross compilation cmocka The compilation problems encountered in the source code are basically C Code problem , It's not about the platform .

Reference resources

• cmocka Official website
• cmocka API Introduce
