M simulation of cooperative MIMO distributed space-time coding technology based on MATLAB

2022-07-19 07:07:00 【I love c programming】

Catalog

1. Algorithm description

be based on matlab Cooperation mimo Simulation of distributed space-time coding technology , Including rules LDPC cascade D-STBC,ML,ZF,DFE equilibrium ,Fincke-Pohst-MAP Algorithm detection . take The rules LDPC Join this collaboration MIMO Of D-STBC in , That is, will LDPC Code and D-STBC cascade , The sender uses LDPC Send the code to the collaboration node , Then the collaboration node uses D-STBC Forward to the sender in the form of code . To make a ＭＬ、ＺＦ-ＯＳＩＣ and ,ＲＬＳ-ＭＩＭＯ-ＤＦＥ Performance comparison of bit error rate of three detection algorithms （ Be careful ： During the process from the sender to the relay cooperation node , There are three protocols for the processing of source signals by relay cooperative nodes ： Amplify and forward , Decoding, forwarding and coding cooperation , Therefore, the three detection algorithms under these three protocols should be done separately ）, as well as LDPC And D-STBC Combined collaboration MIMO The system has nothing to do with LDPC Code collaboration MIMO Of D-STBC The system is in ML Performance comparison under detection algorithm （ Only do “ Coding collaboration agreement ” Next ）. Compare LDPC cascade D-STBC Cooperation MIMO Under the system , The detection at the receiving end adopts ML Algorithm and Fincke-Pohst MAP.

2. Partial procedure

clc;
clear;
close all;
warning off;
addpath(genpath(pwd));
% QQ   : 1480526168
%  WeChat  : lovemike121
% matlab/FPGA Project cooperation

Nt            = 2;
Nr            = 2;
Frame_Length  = 512;
Error_Num     = 1000000;% Count the number of errors
EbNo          = 0.5:0.5:4.5;
P             = 2;
QMod          = modem.pskmod('M',P,'PhaseOffset',0);
QDemod        = modem.pskdemod(QMod);
q             = modulate(QMod,0:1);
Q             = q;

for i = 2:Nt
    Q = [q(reshape(repmat(1:2, length(Q),1),1,2*length(Q)));repmat(Q,1,2)];
end

%LDPC Parameters
N        = Frame_Length;% Set parity matrix size
M        = N/2;
max_iter = 99;                 % Maximum number of iterations

load H2;
load G2;

BERs = zeros(1, length(EbNo));

for kk = 1:length(EbNo)
    kk
    totalNumErr = 0;
    count       = 0;
    SNR         = 10^(EbNo(kk)/10);
    N0          = 2*10^(-EbNo(kk)/10);
    sigma       = 1/(sqrt(SNR)/2);

    ii          = 0;
    Dsd         = 36;          %db Count
    Dsr         = 36;
    Drd         = 36;
    Qsd         = sqrt(10^(Dsd/10));
    Qsr         = sqrt(10^(Dsr/10));
    Qrd         = sqrt(10^(Drd/10));

    LL          = 2;

    while (totalNumErr < Error_Num)
        kk
        totalNumErr

        % Generate data
        data       = round(rand(1,N-M));
        %LDPC code
        u          = mod(data*G,2);
        %BPSK
        tx         = 2*u - 1;

        % Coding collaboration agreement
        Trans_N1    = tx(1:N-M);        %N1 Sequence
        Trans_N2    = tx(N-M+1:2*(N-M));%N2 Sequence
        %ii=1 When , Send your own codeword , and ii=2 Send the cooperative codeword when , So as to achieve the effect of time slot
        ii          = ii + 1;

        % take N1 Send to destination
        % take N1 Send to destination
        % As the sending source
        % Conduct AF relay
        % Channel gain
        Hsd=Qsd*(randn);
        Hsr=Qsr*(randn);
        Hrd=Qrd*(randn);
        % Amplification gain of cooperative nodes
        B=sqrt(1/(abs(Qsr)^2*1));
        %===============================
        % The weighting factor of the maximum merger ratio is calculated ( The first i The variable gain weighting coefficient of each branch is the ratio of the signal amplitude of the diversity path to the noise power )
        % Calculate the gain
        A0=conj(Hsd)/(1/(sqrt(LL)*EbNo(kk)));
        A1=B*conj(Hsr)*conj(Hrd)/((B^2*(abs(Hsr))^2+1)*(1/(sqrt(LL)*EbNo(kk))));
        % receive
        MIMO_Rx =  Trans_N1/max(abs(Trans_N1))+ 1/(sqrt(SNR))*randn(size(Trans_N1));
        Ysr      = Hsr*MIMO_Rx;
        Yrd      = Hrd*Ysr*B;
        Ysd      = Hsd*MIMO_Rx;
        Y        = A0*Ysd+A1*Yrd;
        % Received binary signal
        MIMO_Rx1 = Y;
        Rec_data1= sign(MIMO_Rx1);

        % take N1 Send to user 2
        % take N1 Send to user 2
        % receive
        MIMO_Rx2   = Trans_N1/max(max(Trans_N1))+ 1/(sqrt(SNR))*randn(size(Trans_N1));
        Ysr        = Hsr*MIMO_Rx2;
        Yrd        = Hrd*Ysr*B;
        Ysd        = Hsd*MIMO_Rx2;
        Y          = A0*Ysd+A1*Yrd;
        % Received binary signal
        MIMO_Rx12  = Y;
        Rec_data12 = sign(MIMO_Rx2);

        % Second time slot , user 2 Send the user to the destination 1 The second frame signal of , The user 2 Recoded about U1 In groups N2 Bit check the modulation signal corresponding to the codeword
        % stay USER2 in , Will receive N1 The sequence is recoded , Then put the sequence N2 Send to destination
        rec_datas              = -1*(Rec_data12-1)/2;
        Ldpc_trans_data_user2  = mod(data*G,2);
        Trans_N2_user2         = Ldpc_trans_data_user2(N-M+1:2*(N-M));%N2 Sequence
        Trans_N2_user3         = 2*Trans_N2_user2-1;

        %--------------------- Collaboration MIMO----------------------------------
        Hsd=Qsd*(randn);
        Hsr=Qsr*(randn);
        Hrd=Qrd*(randn);
        % Amplification gain of cooperative nodes
        B=sqrt(1/(abs(Qsr)^2*1));
        %===============================
        % The weighting factor of the maximum merger ratio is calculated ( The first i The variable gain weighting coefficient of each branch is the ratio of the signal amplitude of the diversity path to the noise power )
        % Calculate the gain
        A0=conj(Hsd)/(1/(sqrt(LL)*EbNo(kk)));
        A1=B*conj(Hsr)*conj(Hrd)/((B^2*(abs(Hsr))^2+1)*(1/(sqrt(LL)*EbNo(kk))));
        % receive
        MIMO_Rx =  Trans_N2/max(abs(Trans_N2))+ 1/(sqrt(SNR))*randn(size(Trans_N2));
        Ysr      = Hsr*MIMO_Rx;
        Yrd      = Hrd*Ysr*B;
        Ysd      = Hsd*MIMO_Rx;
        Y        = A0*Ysd+A1*Yrd;
        % Received binary signal
        MIMO_Rx2 = Y;
        Rec_data2= sign(MIMO_Rx2);


        YY1 = [MIMO_Rx12,MIMO_Rx2]';
        YY2 = [Rec_data12,Rec_data2]';

        Tx          = reshape(YY2,Nt, Frame_Length/Nt);
        RayleighMat = (rand(Nr, Nt) + j*rand(Nr, Nt));
        rr          = size(RayleighMat*Tx,1);
        cc          = size(RayleighMat*Tx,2);
        r           = awgn(RayleighMat*Tx, inf);
        Hs          = RayleighMat;
        HQ          = Hs*Q;

        ahat        = zeros(Nt,Frame_Length/Nt);

        yy2 = func_FP_MAP(r',(2*Nt)*(2/(SNR)),RayleighMat,[-1 1]);

        tmps        = demodulate(QDemod,yy2);
        Rec_data    = reshape(tmps,1,Frame_Length);

        %LDPC decoding
        Rec_data(find(Rec_data==0)) =-1;
        Rec_data                    =-1*Rec_data;
        z_hat = func_Dec(Rec_data,N0,H,max_iter);
        x_hat = z_hat(size(G,2)+1-size(G,1):size(G,2));

        %===========================================================================
        count       = count + 1;
        totalNumErr = totalNumErr + biterr(x_hat', data);
    end

    BERs(kk) = totalNumErr/(count*Frame_Length);

end

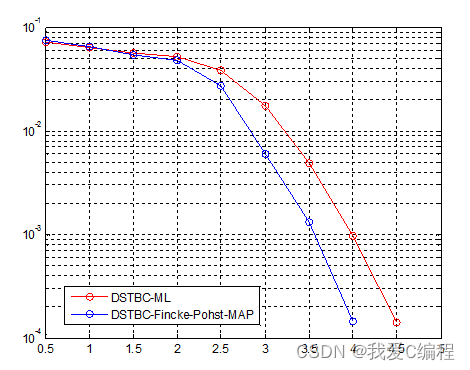

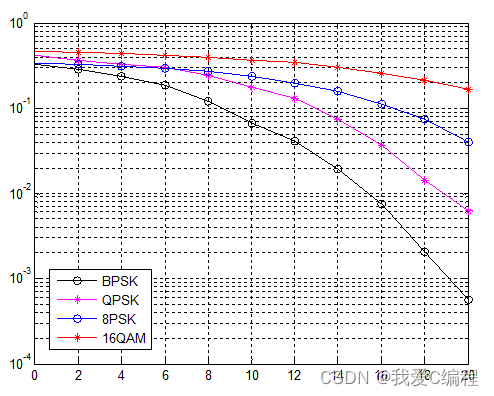

figure;
semilogy(EbNo,BERs,'r-o');
grid on;
% save Fincke_Pohst_MAP.mat EbNo BERs
