DELL R740 Detailed installation process of server system

Broadcast articles

​ ​

Boot press F11 choice one-shot Choose again U Disk start _ initialization

 ​​


​ ​ Creator mTTvNQBEUe​​

2021-08-13 17:03

Focus on

RAID To configure ：

1. Turn it on F2 Get into bios

Boot press F11 choice one-shot Choose again U Disk start _ios_02

2. choice device setting

Boot press F11 choice one-shot Choose again U Disk start _ initialization _03

3.Integrated Raid controller 1 xxxxxx（raid Card model ） Usually the first line

Boot press F11 choice one-shot Choose again U Disk start _ initialization _04

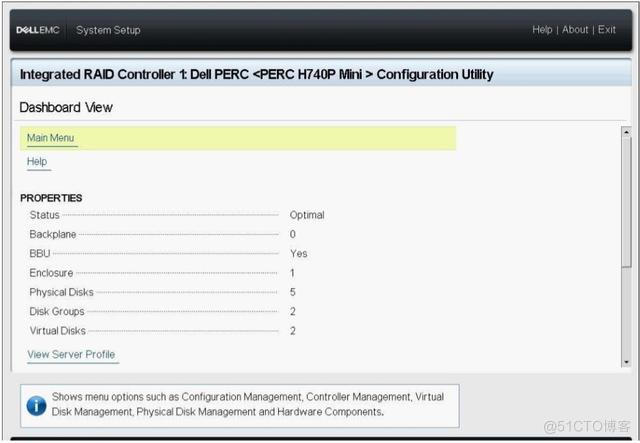

4. choice Main Menu

Boot press F11 choice one-shot Choose again U Disk start _ios_05

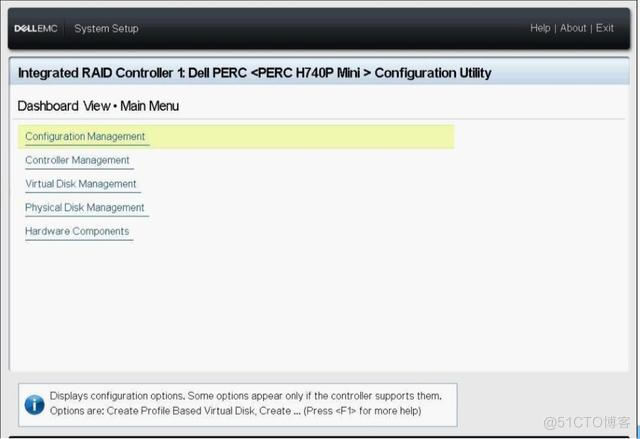

5.Configuration Management

Boot press F11 choice one-shot Choose again U Disk start _ The server _06

6. choice Create Virtual Disk

Boot press F11 choice one-shot Choose again U Disk start _ios_07

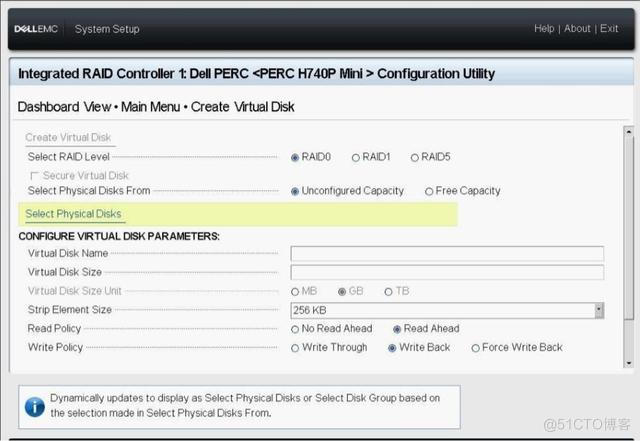

7.Raid Level , After clicking on select physical Disks

Boot press F11 choice one-shot Choose again U Disk start _ initialization _08

8. According to the type of hard disk Select hard disk for interface , Apply after selecting hard disk apply changes

Boot press F11 choice one-shot Choose again U Disk start _ios_09

9. Here you can set VD name · size · Whether to initialize （ It is not initialized by default , Must pay attention to ）, In general , It is recommended to initialize this option by default Fast, Click when finished Create virtual Disk

Boot press F11 choice one-shot Choose again U Disk start _ The server _10

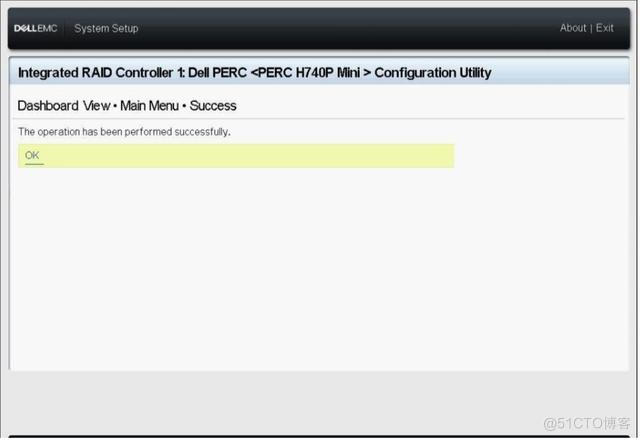

10. Click on OK Can finish raid establish

Boot press F11 choice one-shot Choose again U Disk start _ initialization _11

install ：
1.． Boot press F11

Boot press F11 choice one-shot Choose again U Disk start _ios_12

2. choice One-shot UEFI Boot Menu:

Boot press F11 choice one-shot Choose again U Disk start _ initialization _13

3. Select the media to boot , For example, CD-ROM. 、usb、 Virtual optical drive, etc .

complete ！！！！！！！
