Install SQL developer for Galaxy Kirin desktop operating system v10sp1 (x86)

        Oracle SQL Developer yes Oracle A free integrated development environment produced by the company . It's a Free non open source A graphical tool for developing database applications , Use SQL Developer You can browse database objects 、 function SQL Statements and scripts 、 Edit and debug PL/SQL sentence . In addition, you can create, execute and save reports . This tool can connect any Oracle 9.2.0.1 Or the above version of Oracle database .

Installation tutorial ：

1、Oracle Download the installation package on the official website （Oracle SQL Developer Downloads）

2、 because oracle The official website only has Linux Under the platform RPM Installation package , Galaxy kylin desktop V10sp1 need deb Format package , This installation package cannot be installed directly , Need to rpm Convert to deb package . Use command ：sudo   alien  XXX.rpm. If the system is not installed alien package , Online installation required , As shown in the figure below ：

3、 because sqldeveloper rely on jdk, To be installed jdk package , Use command ：sudo apt-get install openjdk-11-jdk Online installation .

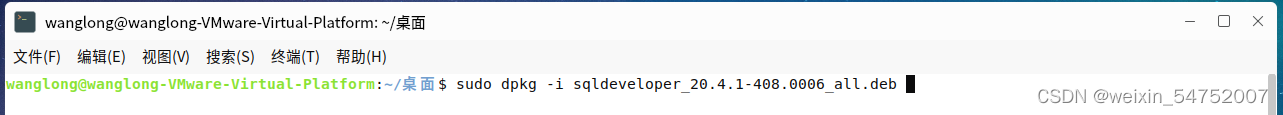

4、 After the conversion is complete , install sqldeveloper, Use command ：sudo  dpkg  -i   sqldeveloper_20.4.1-408.0006_all.deb.

 5、 After installation , Will be in /opt Generate under directory sqldeveloper Folder ,cd  /opt/sqldeveloper/ Under the table of contents , You can see there's one sqldeveloper.sh（ The startup script ） Documents and a sqldeveloper.desktop（ Desktop icons ） file

 6、 take sqldeveloper.desktop File copy to /usr/share/appliactions/ Under the table of contents , You can see in the start menu sqldeveloper Icon . command ：sudo cp /opt/sqldeveloper/sqldeveloper.desktop   /usr/share/applications/

 7、 stay sqldeveloper Specified in the configuration file jdk route

 8、 Double-click to open sqldeveloper

 9、 The first time you open it , The following errors may appear , The error message is ： The lack of javaFX Environmental Science , This is because openjdk Lack of JavaFX relevant jar Packet induced ,javafx yes One java Language graphical interface development kit , All when we open sqldeveloper when ,“ Welcome to use ” The interface cannot be loaded , There is an error , Here's the picture ：

 10、 solve javafx Report errors , Galaxy Kirin desktop operating system can be installed online openjfx package （ Note the package version and jdk Versions, ） To solve this problem , command ：sudo  apt-get  install  openjfx

 ​​​​

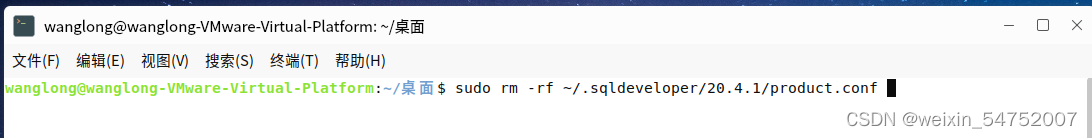

11、 After installation , Delete cache , command ：sudo  rm -rf  ~/.sqldeveloper/ 20.4.1/product.conf, Then restart the computer to use sqldeveloper To manage oracle Database .
