HCIA_ Rip experiment

The experimental requirements

1、R3 Loopback is 3.3.3.0/24
2、 The other is based on 192.168.1.0/24 division
3、r1/2 There are two loops
4、 The whole network runs RIPV2, But you can't directly declare R3 The loopback of
5、 Network wide accessibility , To ensure the security of updates , Reduce the number of routing entries , Avoid loops

The topology

The analysis process

Address partition ：
192.168.1.0/24
192.168.1.0/26
192.168.1.0/27
192.168.1.32/27

192.168.1.64/26
192.168.1.64/27
192.168.1.96/27

192.168.1.128/26
192.168.1.128/30
192.168.1.132/30

192.168.1.192/26

stay R1、R2、R3 Up operation RIPV2 agreement , And declare for network segment
about R3 The loopback above sets the default route
Then the route summary of the response
stay R1 And R2 Make an encryption between ,R2 And R3 And then do a kind of encryption

Configure the content

R1:

[r1]int g 0/0/0
[r1-GigabitEthernet0/0/0]ip add 192.168.1.129 30
[r1]int l0
[r1-LoopBack0]ip add 192.168.1.1 27
[r1-LoopBack0]int l1
[r1-LoopBack1]ip add 192.168.1.33 27
[r1]rip
[r1-rip-1]version 2
[r1-rip-1]network 192.168.1.0
[r1-GigabitEthernet0/0/0]rip summary-address 192.168.1.0 255.255.255.192
[r1-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123

R2:

[r2]int g 0/0/0
[r2-GigabitEthernet0/0/0]ip add 192.168.1.130 30
[r2-GigabitEthernet0/0/0]int g 0/0/1
[r2-GigabitEthernet0/0/1]ip add 192.168.1.133 30
[r2-GigabitEthernet0/0/1]int l0
[r2-LoopBack0]ip add 192.168.1.65 27
[r2-LoopBack0]int l1
[r2-LoopBack1]ip add 192.168.1.97 27
[r2]rip
[r2-rip-1]version 2
[r2-rip-1]network 192.168.1.0
[r2-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123
[r2-GigabitEthernet0/0/0]rip summary-address 192.168.1.64 255.255.255.192
[r2-GigabitEthernet0/0/1]rip summary-address 192.168.1.64 255.255.255.192
[r2-GigabitEthernet0/0/1]rip authentication-mode md5 usual cipher 456

R3:

[r3]int g 0/0/0
[r3-GigabitEthernet0/0/0]ip add 192.168.1.134 30
[r3-GigabitEthernet0/0/0]int l0
[r3-LoopBack0]ip add 3.3.3.3 24
[r3]rip
[r3-rip-1]version 2
[r3-rip-1]network 192.168.1.0
[r3-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 456
[r3-rip-1]default-route originate

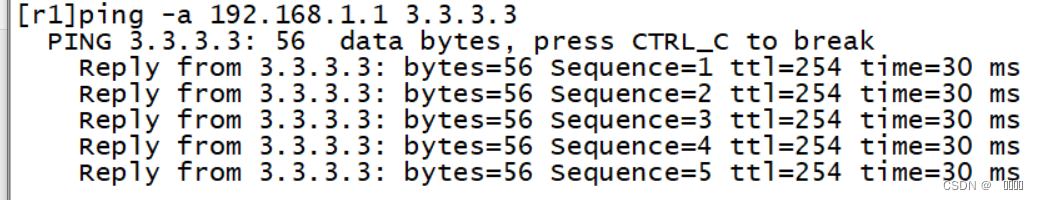

The results verify that

R1 Routing table ：

R2 Routing table ：

R3 Routing table ：
