Preface

This article is a column 《AsyncTool Framework principle source code analysis 》 The second article in the series 《AsyncTool The framework is used in actual combat 》, adopt Arrange serial 、 parallel 、 Block waiting - Serial first , Post parallel 、 Block waiting - Parallel first , Post serial 、 abnormal 、 Overtime And other scenarios , Study AsyncTool frame Practical application of , And preliminarily explore its implementation principle .

special column 《AsyncTool Framework principle source code analysis 》 share 5 piece article , from the shallower to the deeper , from actual combat Use again Source code 、 principle analysis , Including but not limited to AsyncTool frame Thinking and summary , Finally, share my thoughts for AsyncTool frame Open source project Contribution code . Here are 《 Column catalog 》：

1. 《AsyncTool Framework introduction and analysis implementation 》
2. 《AsyncTool The framework is used in actual combat 》
3. 《AsyncTool Framework principle source code analysis 》
4. 《AsyncTool Some thoughts on the framework 》
5. 《AsyncTool The framework is flawed ？》

1、 Serial scenario

Before the actual battle , Have a look first Worker Use of the smallest task unit .

Worker Is defined as follows , Realization IWorker,ICallback Functional interface , And rewrite the following 4 A way .4 The description of the two methods is as follows ：

1、begin()：Worker Before starting execution , Call back first begin()

2、action()：Worker Where time-consuming operations are performed , such as RPC Interface call .

3、result()：action() After execution , Callback result Method , It can be handled here action Return value in .

4、defaultValue()： Whole Worker Perform abnormal , Or a timeout , Callbacks defaultValue(),Worker return The default value is .

If not ICallback, Will be executed by default DefaultCallback The callback method .DefaultCallback Is an empty callback , There's no logic in it .

Simulate serial scenarios ：A Task to parameter +1, after B Task to parameter +2, after C Task to parameter +3.（ The scenario has no actual business meaning , It's simple ）

（1）workerA：

public class WorkerA implements IWorker<Integer, Integer>, ICallback<Integer, Integer> {


    /** * Worker Start with begin */
    @Override
    public void begin() {

        System.out.println("A - Thread:" + Thread.currentThread().getName() + "- start --" + SystemClock.now());
    }

    /** * Worker The time-consuming operations in are performed here RPC/IO * @param object object * @param allWrappers  Task packaging  * @return */
    @Override
    public Integer action(Integer object, Map<String, WorkerWrapper> allWrappers) {

        Integer res = object + 1;
        return res;
    }

    /** * action Callback of execution results  * @param success * @param param * @param workResult */
    @Override
    public void result(boolean success, Integer param, WorkResult<Integer> workResult) {

        System.out.println("A - param:" + JSON.toJSONString(param));
        System.out.println("A - result:" + JSON.toJSONString(workResult));

        System.out.println("A - Thread:" + Thread.currentThread().getName() + "- end --" + SystemClock.now());
    }

    /** * Worker Callback in case of exception  * @return */
    @Override
    public Integer defaultValue() {

        System.out.println("A - defaultValue");
        return 101;
    }

}

（2）workerB：

public class WorkerB implements IWorker<Integer, Integer>, ICallback<Integer, Integer> {


    /** * Worker Start with begin */
    @Override
    public void begin() {

        System.out.println("B - Thread:" + Thread.currentThread().getName() + "- start --" + SystemClock.now());
    }

    /** * Worker The time-consuming operations in are performed here RPC/IO * @param object object * @param allWrappers  Task packaging  * @return */
    @Override
    public Integer action(Integer object, Map<String, WorkerWrapper> allWrappers) {

        Integer res = object + 2;
        return res;
    }

    /** * action Callback of execution results  * @param success * @param param * @param workResult */
    @Override
    public void result(boolean success, Integer param, WorkResult<Integer> workResult) {

        System.out.println("B - param:" + JSON.toJSONString(param));
        System.out.println("B - result:" + JSON.toJSONString(workResult));

        System.out.println("B - Thread:" + Thread.currentThread().getName() + "- end --" + SystemClock.now());
    }

    /** * Worker Callback in case of exception  * @return */
    @Override
    public Integer defaultValue() {

        System.out.println("B - defaultValue");
        return 102;
    }
}

（3）WorkerC：

public class WorkerC implements IWorker<Integer, Integer>, ICallback<Integer, Integer> {


    /** * Worker Start with begin */
    @Override
    public void begin() {

        System.out.println("C - Thread:" + Thread.currentThread().getName() + "- start --" + SystemClock.now());
    }

    /** * Worker The time-consuming operations in are performed here RPC/IO * @param object object * @param allWrappers  Task packaging  * @return */
    @Override
    public Integer action(Integer object, Map<String, WorkerWrapper> allWrappers) {

        Integer res = object + 3;
        return res;
    }

    /** * action Callback of execution results  * @param success * @param param * @param workResult */
    @Override
    public void result(boolean success, Integer param, WorkResult<Integer> workResult) {

        System.out.println("C - param:" + JSON.toJSONString(param));
        System.out.println("C - result:" + JSON.toJSONString(workResult));

        System.out.println("C - Thread:" + Thread.currentThread().getName() + "- end --" + SystemClock.now());
    }

    /** * Worker Callback in case of exception  * @return */
    @Override
    public Integer defaultValue() {

        System.out.println("C - defaultValue");
        return 103;
    }
}

（4） layout WorkerWrapper Packaging ：

above Worker Once you've created it , Use WorkerWrapper Yes Worker Package and arrange ,WorkerWrapper yes AsyncTool The smallest executable task unit of a component .

C It's the last step , It has no next.B Of next yes C,A Of next yes B. The order of arrangement is ：C <- B <- A

public class Test {


    public static void main(String[] args) {

        // introduce Worker The unit of work
        WorkerA workerA = new WorkerA();
        WorkerB workerB = new WorkerB();
        WorkerC workerC = new WorkerC();

        // packing Worker, Arrange serial sequence ：C <- B <- A
        //C It's the last step , It has no next
        WorkerWrapper wrapperC = new WorkerWrapper.Builder<Integer, Integer>()
                .id("workerC")
                .worker(workerC)
                .callback(workerC)
                .param(3)//3+3
                .build();
        //B Of next yes C
        WorkerWrapper wrapperB = new WorkerWrapper.Builder<Integer, Integer>()
                .id("workerB")
                .worker(workerB)
                .callback(workerB)
                .param(2)//2+2
                .next(wrapperC)
                .build();
        //A Of next yes B
        WorkerWrapper wrapperA = new WorkerWrapper.Builder<Integer, Integer>()
                .id("workerA")
                .worker(workerA)
                .callback(workerA)
                .param(1)//1+1
                .next(wrapperB)
                .build();
        try {

            //Action
            Async.beginWork(1000, wrapperA);
        } catch (ExecutionException | InterruptedException e) {

            e.printStackTrace();
        }
    }
}

（5） Through the actuator class Async Of beginWork Method submit task execution .

1. Timeout： Set the timeout of the whole group of tasks , If Worker Task timeout , be Worker Use of results defaultValue() The default value is .
2. ExecutorService executorService： Custom thread pool , If you don't customize it , Just leave by default COMMON_POOL. The default thread pool is the indefinite length thread pool .
3. WorkerWrapper… workerWrapper： Starting task , It can be more than one . Be careful not to submit tasks of intermediate nodes , Just submit the starting task , The subsequent tasks of the orchestration will be executed automatically .

// Default indefinite long-distance pool
private static final ThreadPoolExecutor COMMON_POOL = (ThreadPoolExecutor) Executors.newCachedThreadPool();

Async.beginWork(long timeout, ExecutorService executorService, WorkerWrapper... workerWrapper)

（6） The above is just a way of writing , If you think this kind of writing is anti human , You can also use depend Mode arrangement ：

//A No, depend
WorkerWrapper wrapperA = new WorkerWrapper.Builder<Integer, Integer>()
        .id("workerA")
        .worker(workerA)
        .callback(workerA)
        .param(1)
        .build();

//B Of depend yes A
WorkerWrapper wrapperB = new WorkerWrapper.Builder<Integer, Integer>()
        .id("workerB")
        .worker(workerB)
        .callback(workerB)
        .param(2)
        .depend(wrapperA)
        .build();

//C Of depend yes B
WorkerWrapper wrapperC = new WorkerWrapper.Builder<Integer, Integer>()
        .id("workerC")
        .worker(workerC)
        .callback(workerC)
        .param(3)
        .depend(wrapperB)
        .build();
//begin
Async.beginWork(1000, wrapperA);

Running results ：A：1+1=2;B：2+2=4;C：3+3=6

2、 Parallel scenes

Scene simulation ： Based on serial scenario ,.A Task to parameter +1,B Task to parameter +2,C Task to parameter +3. Parallel execution .

WorkerWrapper Parallel orchestration ：A\B\C None next and depend, 3 individual WorkerWrapper Together begin.Async.beginWork(1000, wrapperA, wrapperB, wrapperC);

public class Test {


    public static void main(String[] args) {

        // introduce Worker The unit of work
        WorkerA workerA = new WorkerA();
        WorkerB workerB = new WorkerB();
        WorkerC workerC = new WorkerC();

        /** *  packing Worker, Arrange parallel sequence  */

        //A
        WorkerWrapper wrapperA = new WorkerWrapper.Builder<Integer, Integer>()
                .id("workerA")
                .worker(workerA)
                .callback(workerA)
                .param(1)//1+1
                .build();
        //B
        WorkerWrapper wrapperB = new WorkerWrapper.Builder<Integer, Integer>()
                .id("workerB")
                .worker(workerB)
                .callback(workerB)
                .param(2)//2+2
                .build();
        //C
        WorkerWrapper wrapperC = new WorkerWrapper.Builder<Integer, Integer>()
                .id("workerC")
                .worker(workerC)
                .callback(workerC)
                .param(3)//3+3
                .build();
        try {

            //3 individual WorkerWrapper Together begin
            Async.beginWork(1000, wrapperA, wrapperB, wrapperC);
        } catch (ExecutionException | InterruptedException e) {

            e.printStackTrace();
        }

    }
}

Execution results ：ABC Use different threads to execute in parallel .A：1+1=2;B：2+2=4;C：3+3=6

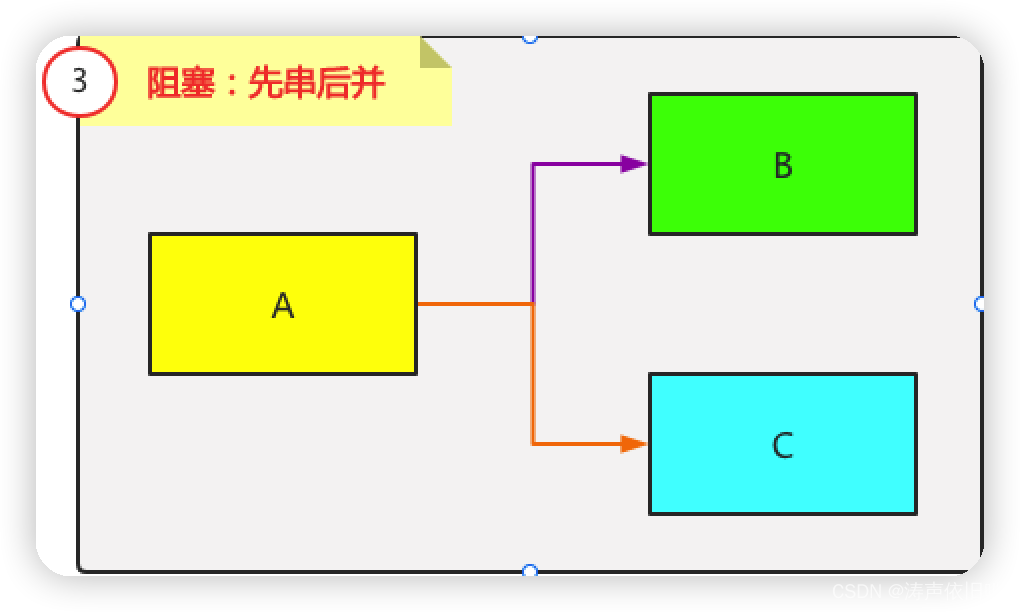

3、 Block waiting - Serial first , Post parallel

Block waiting - Serial first , Post parallel scene simulation ：A Execute first , For parameters +1;A After execution ,B\C Execute in parallel at the same time ,B The task is based on A The return value of +2,C The task is based on A The return value of +3

（1）next How to write it ：

public static void nextWork() {

    // introduce Worker The unit of work
    WorkerA workerA = new WorkerA();
    WorkerB workerB = new WorkerB();
    WorkerC workerC = new WorkerC();

    //C It's the last step , It has no next
    WorkerWrapper wrapperC = new WorkerWrapper.Builder<Integer, Integer>()
            .id("workerC")
            .worker(workerC)
            .callback(workerC)
            .param(null)// No parameters , according to A The return value of +3
            .build();
    //B It's the last step , It has no next
    WorkerWrapper wrapperB = new WorkerWrapper.Builder<Integer, Integer>()
            .id("workerB")
            .worker(workerB)
            .callback(workerB)
            .param(null)// No parameters , according to A The return value of +2
            .build();
    //A Of next yes B、C
    WorkerWrapper wrapperA = new WorkerWrapper.Builder<Integer, Integer>()
            .id("workerA")
            .worker(workerA)
            .callback(workerA)
            .param(1)//1+1
      			//next yes B、C
            .next(wrapperB, wrapperC)
            .build();


    try {

        //Action
        Async.beginWork(1000, wrapperA);
    } catch (ExecutionException | InterruptedException e) {

        e.printStackTrace();
    }
}

（2）depend How to write it ：

//A No, depend, It's the beginning
WorkerWrapper wrapperA = new WorkerWrapper.Builder<Integer, Integer>()
        .id("workerA")
        .worker(workerA)
        .callback(workerA)
        .param(1)
        .build();

//C depend A
WorkerWrapper wrapperC = new WorkerWrapper.Builder<Integer, Integer>()
        .id("workerC")
        .worker(workerC)
        .callback(workerC)
        .param(null)
        .depend(wrapperA)
        .build();
//B depend A
WorkerWrapper wrapperB = new WorkerWrapper.Builder<Integer, Integer>()
        .id("workerB")
        .worker(workerB)
        .callback(workerB)
        .param(null)
        .depend(wrapperA)
        .build();

Execution results ：A：1+1 = 2;B：2+2 =4;C：3+2 = 5

4、 Block waiting - Parallel first , Post serial

Scene simulation ： Block waiting - Parallel first , Post serial .

B\C Parallel execution .B For parameters +2,C For parameters +3,B\C After all execution ,A = B Return value +C Return value .

Be careful ： need B and C meanwhile begin.Async.beginWork(4000, wrapperB, wrapperC);

（1）next How to write it ：

public static void nextWork() {


    // introduce Worker The unit of work
    WorkerA workerA = new WorkerA();
    WorkerB workerB = new WorkerB();
    WorkerC workerC = new WorkerC();

    //A It's the last step , No, next
    WorkerWrapper wrapperA = new WorkerWrapper.Builder<Integer, Integer>()
            .id("workerA")
            .worker(workerA)
            .callback(workerA)
            .param(null)// Parameter is null,A = B + C
            .build();

    //C next A
    WorkerWrapper wrapperC = new WorkerWrapper.Builder<Integer, Integer>()
            .id("workerC")
            .worker(workerC)
            .callback(workerC)
            .param(3)//3+3 = 6
            .next(wrapperA)
            .build();
    //B next A
    WorkerWrapper wrapperB = new WorkerWrapper.Builder<Integer, Integer>()
            .id("workerB")
            .worker(workerB)
            .callback(workerB)
            .param(2)//2+2 = 4
            .next(wrapperA)
            .build();

    try {
    new SynchronousQueue<Runnable>();
        //Action
        Async.beginWork(4000, wrapperB, wrapperC);
    } catch (ExecutionException | InterruptedException e) {

        e.printStackTrace();
    }
}

（2）depend How to write it ：

//C No, depend, Is the starting node
WorkerWrapper wrapperC = new WorkerWrapper.Builder<Integer, Integer>()
        .id("workerC")
        .worker(workerC)
        .callback(workerC)
        .param(3)//3+3 = 6
        .build();
//B No, depend, Is the starting node
WorkerWrapper wrapperB = new WorkerWrapper.Builder<Integer, Integer>()
        .id("workerB")
        .worker(workerB)
        .callback(workerB)
        .param(2)//2+2 = 4
        .build();

//A depend B,C
WorkerWrapper wrapperA = new WorkerWrapper.Builder<Integer, Integer>()
        .id("workerA")
        .worker(workerA)
        .callback(workerA)
        .param(null)// Parameter is null,A = B + C
        .depend(wrapperB, wrapperC)
        .build();

Execution results ：B：2+2=4;C：3+3 = 6;A = B+C = 10

5、 abnormal 、 Timeout callback scenario

this 2 Kinds of scenes , You can fine tune based on the above scenario , that will do debug debugging .

// Timeout time , Thread pool , initial Wrapper, Multiple
Async.beginWork(long timeout, ExecutorService executorService, WorkerWrapper... workerWrapper)

1. Based on the... Set by the whole group timeout, If I run out of time , be worker The return value in uses defaultValue()
2. If at present Worker The task is abnormal , Then the current task uses defaultValue(), also depend The current task is , also FastFail, return defaultValue()

If you like this article , Please don't be stingy with your praise , It's not easy to create , thank ！
