[unity3d] toggle of ugui

1 Toggle Property panel

         stay Hierarchy Window right , choice UI In the list Toggle Control , You can create Toggle Control , Check the created Toggle Control , Press keyboard 【T】 key , You can adjust Toggle Size and location of control .

         establish Toggle When the control , The system will automatically create 2 individual Image  Child controls and 1 individual Text Control , as follows ：

• Background：Image Control , Selection box background ;
• Checkmark：Image Control , Check the icon ;
• Label：Text Control , Text description on the right of the selection box .

        Toggle The property panel of the control is as follows ：

        explain ：Group Used to specify grouping , Can be applied to check boxes and radio boxes .

2 Toggle Registration events

         Click on OnValueChanged Below “+”  Number , You can add a response event to the selection box , You can add multiple events .

        1） Methods for registering existing components

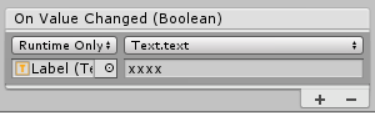

        Click on OnValueChanged Below “+”  Number , take Toggle Below Label Drag and drop to OnValueChanged In the panel , choice Text.text, Text settings below "xxxx", as follows ：

          single click Toggle, The text to the right of the selection box will be displayed as “xxxx”, as follows ：

        2） Register the methods in the script component

          to Toggle Controls to add  ToggleController The script components are as follows ：

        ToggleController.cs

using UnityEngine;

public class ToggleController : MonoBehaviour {

	public void OnClick1() {
		Debug.Log("Click1");
	}

	public void OnClick2(string msg) {
		Debug.Log("Click2, msg=" + msg);
	}

	public void OnClick3(bool isOn) {
		Debug.Log("Click3, isOn=" + isOn);
	}
}

         Be careful ： Method to be registered , At most 1 Parameters , When the parameter is bool Type , Input parameter indicates the selected state of the selection box .

         Click on OnValueChanged Below “+” Number , take ToggleController Drag the script component to OnValueChanged In the panel , choice ToggleController.OnClick1 Method ; Click again OnValueChanged Below “+” Number , take ToggleController Drag the script component to OnValueChanged In the panel , choice ToggleController.OnClick2 Method , Below it, enter "xxxx"; Click on OnValueChanged Below “+” Number , take ToggleController Drag the script component to OnValueChanged In the panel , choice ToggleController.OnClick3  Method . as follows ：

          single click 2 Secondary selection box , Print the log as follows ：

        3） Register events in the code

         to Toggle Controls to add  ToggleController The script components are as follows ：

        ToggleController.cs

using UnityEngine;
using UnityEngine.UI;

public class ToggleController : MonoBehaviour {

	private void Start() {
		Toggle toggle = GetComponent<Toggle>();
		toggle.onValueChanged.AddListener(OnValueChanged);
	}

	public void OnValueChanged(bool isOn) {
		Debug.Log("OnValueChanged, isOn=" + isOn);
	}
}

         Be careful ：AddListener Method can only add input parameters bool Method of type , You can add multiple methods .

         single click 2 Secondary selection box , Print the log as follows ：

3 Toggle Group（ Select box group ）

        Toggle Group（ Select box group ） Generally used for single or multiple choices .

        stay Canvas Next create a Empty object , Renamed as ToggleGroup, Create... Under it 4 individual Toggle Control , And changed his name to Toggle1~Toggle4, as follows ：

         4 individual Toggle Set up label Respectively one、two、three、four,IsOn Properties are not checked , as follows ：

        to ToggleGroup Object to add ToggleGroup Components , as follows ：

        explain ：AllowSwitchOff  Property is used to set whether or not to select none of the radio boxes .

          Choose Toggle1~Toggle4, take ToggleGroup Object drag to  Toggle1~Toggle4 Of Group Panel properties , as follows ：

         Then click the selection box , At most one selection box is selected （ Radio buttons ）, as follows ：
