1.NoSql summary

Why use Nosql

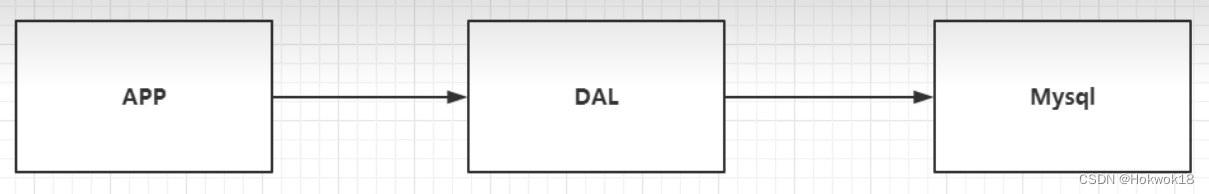

1、 stand-alone Mysql years

  90 years , There are not many business visits , A single database of a basic website is completely enough

2、Memcached（ cache ）+Mysql+ Split Vertically （ Read / write separation ）

   Website 80% The situation is reading , It's very troublesome to get and query the database every time ！ To reduce data pressure , We use caching to ensure efficiency .

Development process ： Optimize data structures and indexes -> File cache （IO）->Memcached（ The hottest technology at that time ）

3、 Sub database and sub table + Horizontal split +Mysql colony

Technology and business are developing at the same time , People are more and more demanding
The essence ： Database read and write
Earlier years MyISAM： Table locks ,（ When reading and writing , The table is locked , It greatly affects concurrency ）
Innodb： Row lock

Now a basic Internet Project

Why use NoSQL

User's personal information , Social networks , Location . User generated data , User logs and so on exploded ！
And that's where we need to use it NoSQL database ,NoSQL Can handle the above situation well ！

What is? NoSql

NoSql

NoSql = Not Only Sql（ not only Sql）
Relational database ： form , That's ok , Column
Non relational database in general , Traditional relational databases are difficult to deal with web2.0 Time , Especially large scale and high concurrency community .NoSql In today's big data environment, it is developing very rapidly ,Redis It's the fastest growing , And it's a technology that we have to master right now ！
A lot of data types, user's personal information , Social networks , Location . These data types do not need a fixed format , No extra operations are needed to scale out ！ Use key value pairs to store .

NoSql characteristic — decoupling

1、 Easy to expand （ There's no relationship between the data , Good extension ）
2、 Large data volume and high performance （NoSql Cache record level of , It's a fine-grained cache , The performance will be relatively high ）
3、 Data types are diverse （ No need to design database , Take it and use it ）
4、 Conventional RDBMS and NoSql

 Conventional  RDBMS（ Relational database ）
-  Structured organization
- SQL
-  Data and relationships exist in separate tables
-  Operating language , Define language
-  Strict consistency
- ...

Nosql
-  It's not just data
-  There is no fixed query language
-  Key value pair storage , Document storage , Graphic database （ social connections ）
-  Final consistency
- CAP Theorem and BASE （ Different live ）
-  High performance , High availability , Highly expandable
- ...

understand ：3V+3 high

● In the era of big data 3V： It's mainly about describing the problem
1、 Massive Volume
2、 diverse Variety
3、 real time Velocity
● Internet needs 3 high ： It's mainly about the requirements of procedures
1、 High concurrency （Java JUC）
2、 Gao Ketuo （ Split horizontally at any time , There are not enough machines , Expand the machine to solve ）
3、 High performance （ Guaranteed user experience and performance ）

Alibaba evolution analysis

Alibaba Chinese website architecture design practice

Recommended articles ： Alibaba cloud's crazy people —- Throw in the towel , Is really lost

NoSql The four major categories of

KV Key value pair

• Sina ：Redis
• Meituan ：Redis+Tair
• Ali 、 Baidu ：Redis+MemCache

Document database ：（bson Format and json equally ）

• MongoDB
  • mongodb Database based on distributed file storage ,C++ To write , It is mainly used to process a large number of documents
  • MongoDB It's a product between relational database and non relational database ,MongoDB Yes no relational database has the most functions , Most like a relational database .
• ConthDB

Column store database

• HBase
• distributed file system

Graph relational database （ Not saving graphics , It's about relationships ）

• neo4j
• InfoGrid
• redisgraph

2.Redis introduction

summary

Redis What is it? ？

Redis（Remote Dictionary Serve）, Remote dictionary service

Redis What can I do? ？

1、 Memory storage , Persistence , In memory, power is lost , So persistence is important （rdb、aof）
2、 Efficient , Can be used for caching
3、 Publish subscribe system
4、 Map information analysis
5、 timer 、 Counter （ Browse volume ！ ）
…

characteristic

1、 A variety of data types
2、 Persistence
3、 colony
4、 thing
…

Things used in learning

Official website ：https://redis.io/
Chinese net ：http://www.redis.cn/

Windows Lower installation

download

https://github.com/tporadowski/redis/releases

The extracted directory is as follows

The file is introduced

• redis-server.exe： Server program , Provide Redis service .
• redis-cli.exe: Client program , Connect through it Redis Service and operate .
• redis-check-dump.exe：RDB File repair tool .
• redis-check-aof.exe：AOF File repair tool .
• redis-benchmark.exe： Performance testing tools , Used to simulate simultaneous N Clients send M individual SETs/GETs Inquire about （ Be similar to Apache Of ab Tools ）.
• redis.windows.conf： The configuration file , take Redis Configuration used as general software , When the command line is closed Redis close .
• redis.windows-service.conf： The configuration file , take Redis Configuration as a system service .

Use

double-click redis-server.exe, A pop-up window will flash by , If you don't want the window to disappear , Can be in cmd Open in .

What's starting up here is Redis The service side , Used to provide services .

double-click redis-cli.exe

What's starting up here is Redis The client of , For connecting services .

Test use

This means Redis It can be used normally. .

Windows Under the installation and use of Redis It's very simple , But the official does not recommend it

Official recommended use Linux Deployment .

Redis It can work in other operating systems , But this support is best .Windows The version is not officially supported .

Linux Lower installation

Here we use CentOS 7 System as an example

Environmental preparation

because Redis from ANSI C To write , install Redis Installation is required C Language environment .
yum install gcc-c++
Some bring their own c Environmental Science , No need to install
adopt gcc -v View installed c Environment version , See if it already exists

download

visit Redis official ：https://redis.io/

decompression

tar -zvxf redis-6.2.6.tar.gz

Move

In general, I will redis Put the directory in /usr/local/redis Here will be at present /home/kwok In the catalog redis-6.2.6 Folder change directory , Also change the folder name to redis.
mv /home/kwok/redis-6.2.6 /usr/local/redis

compile

Jump to /usr/local/redis Next
make
Finally, the following contents are output, which means that the compilation is successful

install

make PREFIX=/usr/local/redis install
Here's an extra keyword PREFIX=
This keyword is used to specify the path where the program is stored at compile time .
For example, we have designated redis It must be stored in /usr/local/redis Catalog .
Suppose you don't add the keyword Linux The executable file will be stored in /usr/local/bin Catalog .
The directory number is specified here to facilitate subsequent unloading , Follow up direct rm -rf /usr/local/redis You can delete redis.

start-up

We usually need to start in the background Redis ：
There are two ways ： Command band & and Modify the configuration file .

The way 1： Command band &

./bin/redis-server& ./redis.conf

[[email protected] redis]# ./bin/redis-server& ./redis.conf
[1] 11953
-bash: ./redis.conf: Permission denied
[[email protected] redis]# 11953:C 15 Mar 2022 16:15:10.803 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
11953:C 15 Mar 2022 16:15:10.803 # Redis version=6.2.6, bits=64, commit=00000000, modified=0, pid=11953, just started
11953:C 15 Mar 2022 16:15:10.803 # Warning: no config file specified, using the default config. In order to specify a config file use ./bin/redis-server /path/to/redis.conf
11953:M 15 Mar 2022 16:15:10.803 * monotonic clock: POSIX clock_gettime
                _._
           _.-``__ ''-._ _.-`` `.  `_. ''-._ Redis 6.2.6 (00000000/0) 64 bit .-`` .-```. ```\/ _.,_ ''-._ ( ' , .-`  | `, ) Running in standalone mode |`-._`-...-` __...-.``-._|'` _.-'| Port: 6379 | `-._ `._ / _.-'    |     PID: 11953
  `-._ `-._  `-./ _.-' _.-' |`-._`-._ `-.__.-' _.-'_.-'| | `-._`-._ _.-'_.-' | https://redis.io `-._ `-._`-.__.-'_.-' _.-'
 |`-._`-._    `-.__.-' _.-'_.-'| | `-._`-._ _.-'_.-' | `-._    `-._`-.__.-'_.-'    _.-' `-._ `-.__.-'    _.-' `-._ _.-'
              `-.__.-' 11953:M 15 Mar 2022 16:15:10.804 # WARNING: The TCP backlog setting of 511 cannot be enforced because /proc/sys/net/core/somaxconn is set to the lower value of 128. 11953:M 15 Mar 2022 16:15:10.804 # Server initialized 11953:M 15 Mar 2022 16:15:10.804 # WARNING overcommit_memory is set to 0! Background save may fail under low memory condition. To fix this issue add 'vm.overcommit_memory = 1' to /etc/sysctl.conf and then reboot or run the command 'sysctl vm.overcommit_memory=1' for this to take effect.
11953:M 15 Mar 2022 16:15:10.804 * Ready to accept connections

This method needs to be marked with & Talent , Not very convenient , It is usually achieved by modifying the configuration file .

The way 2： Modify the configuration file

take redis.conf from daemonize no Change it to daemonize yes that will do .
After modification, there is no & It can also be started in the background . stay redis Under the path
./bin/redis-server ./redis.conf
Because I copied one redis.conf Files in /usr/local/bin/kwokconfig The following the , So the startup is ：
/usr/local/redis/bin/redis-server /usr/local/bin/kwokconfig/redis.conf Some versions do not prompt after startup

see

View the process mode
ps -ef|grep redis

[[email protected] redis]# ps -ef|grep redis
root     11953  3410  0 16:15 pts/1    00:00:02 ./bin/redis-server *:6379

Check the port mode
Redis The default port is 6379, It doesn't usually change , You can query through this port Redis Allowable conditions .
netstat -lanp | grep 6379

[[email protected] redis]# netstat -lanp | grep 6379
tcp        0      0 0.0.0.0:6379            0.0.0.0:*               LISTEN      11953/./bin/redis-s

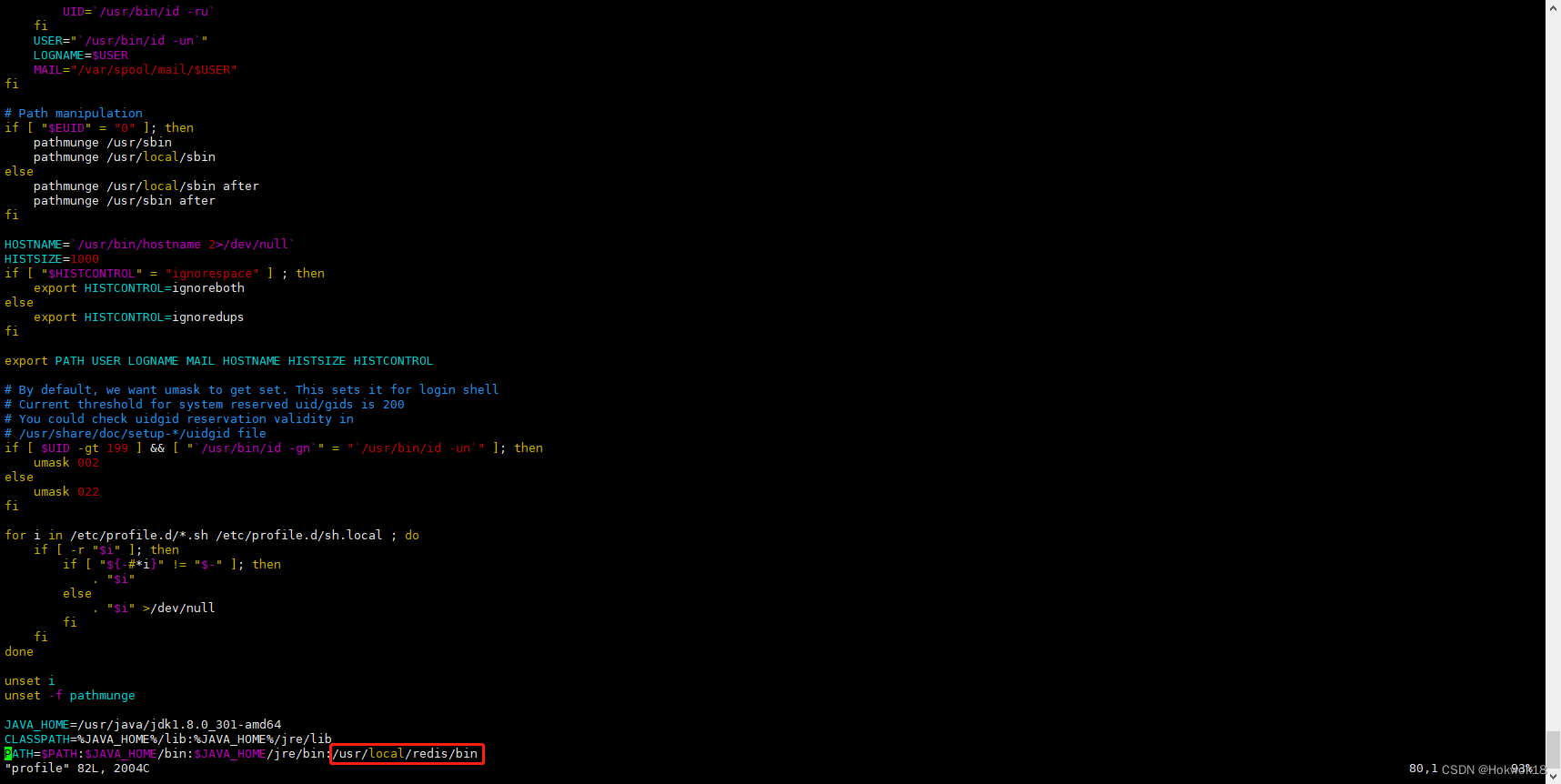

Environment variable configuration

For ease of use , It is recommended to configure first Redis Environment variables of .
vim /etc/profile

source /etc/profile

Performance testing

bin In the catalog redis-benchmark Performance testing can be carried out

• -c（clients）： The concurrency of the client （ Default 50）.
• -n（num）： Number of client requests （ Default 100000）.
• -q： Just show redis-benchmark Of requests per second Information .
• -r（random）： towards Redis Insert more random values .
• -P ： Each request pipeline The amount of data （ The default is 1）.
• -k ： Whether the client uses keepalive,1 For the use of ,0 For not using , The default value is 1.
• -t： Benchmark the specified command .
• –csv： According to csv Format output .

redis-benchmark -h localhost -p 6379 -c 100 -n 100000

Use

redis-cli Local connection redis A command of the service , After this command, you can enter redis Script console .
After configuring the environment variables, enter in any directory redis-cli You can enter .

[[email protected] etc]# redis-cli
127.0.0.1:6379> ping
PONG
127.0.0.1:6379> set hello Hello World
(error) ERR syntax error
127.0.0.1:6379> set hello "Hello World"
OK
127.0.0.1:6379> get hello
"Hello World"

such Redis stay Linux Installation is completed on .

sign out redis Client and shutdown redis Server side

direct ctrl c Only the client can exit , The server has not returned

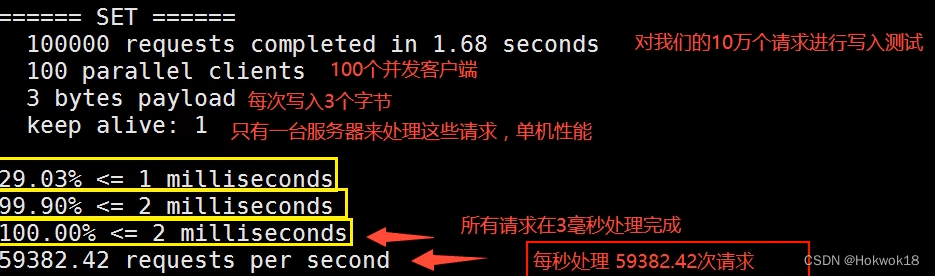

Test performance

redis-benchmark It's a stress testing tool
The official comes with its own performance testing tool

Redis Performance testing

Test it ：

#  test ： 100 concurrent ,100000 request
redis-benchmark -h localhost -p 6379 -c 100 -n 100000
