Dls-12b/dc220v double position relay

brand ： Shanghai Joseph

name : Electromagnetic two position relay

model :DLS-11B、DLS-12B

Rated voltage :48,110,220VDC

Rated current :0.5~6A

Contact capacity :250V3A

Power consumption :≤12W

Series models ：

DLS-11B Electromagnetic two position relay ;

DLS-12B Electromagnetic two position relay ;

DLS-12B/DC220V Two position relay

One 、 summary

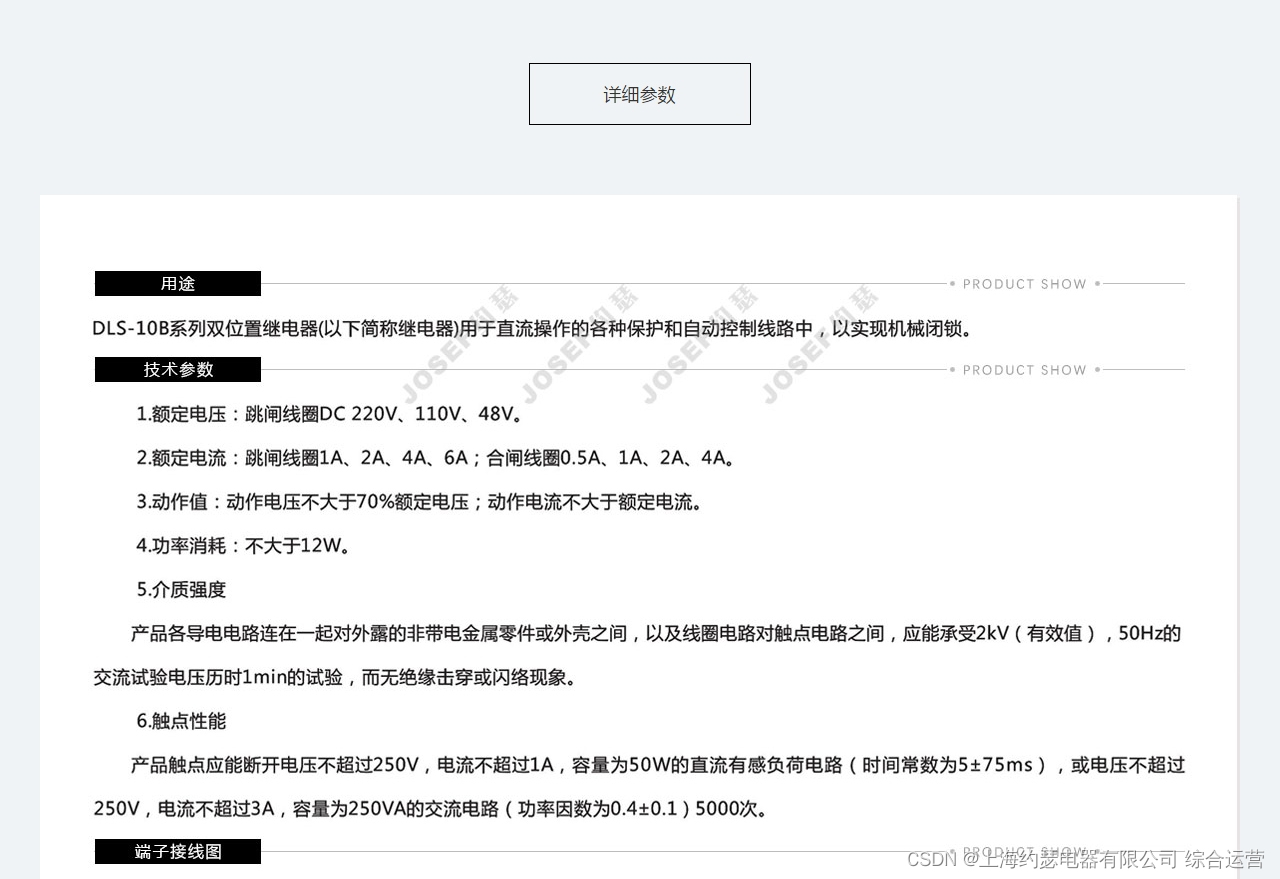

DLS-10B Series electromagnetic two position relays are used in various protection and automatic control circuits operated by DC , To achieve mechanical locking , Voltage reset , And red （ Switch on ） green （ trip ） Color signal board indicates .

Electromagnetic 、 Two position mechanical locking . Shell structure adopts JK-1（ Protruding rear wiring ）、JKF-10Q（ Protruding front wiring ）、JK-6/1（, Embedded rear wiring ） Standard components .DLS-11B There are 2 Auxiliary actuation 、2 Auxiliary action breaking contact ,DLS-12B Yes 2 Secondary transfer contact .

Two 、 Technical parameters

Rated voltage and current

Trip coil

voltage (V)

220

110

48

electric current (A)

1
2
4
2
4
6
2
4
6

Same switch coil

electric current (A)

0.5

0.5

1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
4
4
4
4

Action voltage

Action current

Power waste

Contact capacity

≤70%Un

≤IN

Voltage winding ≤12W Current winding ≤11W

220V.1A DC Feeling

50W AC 250VA

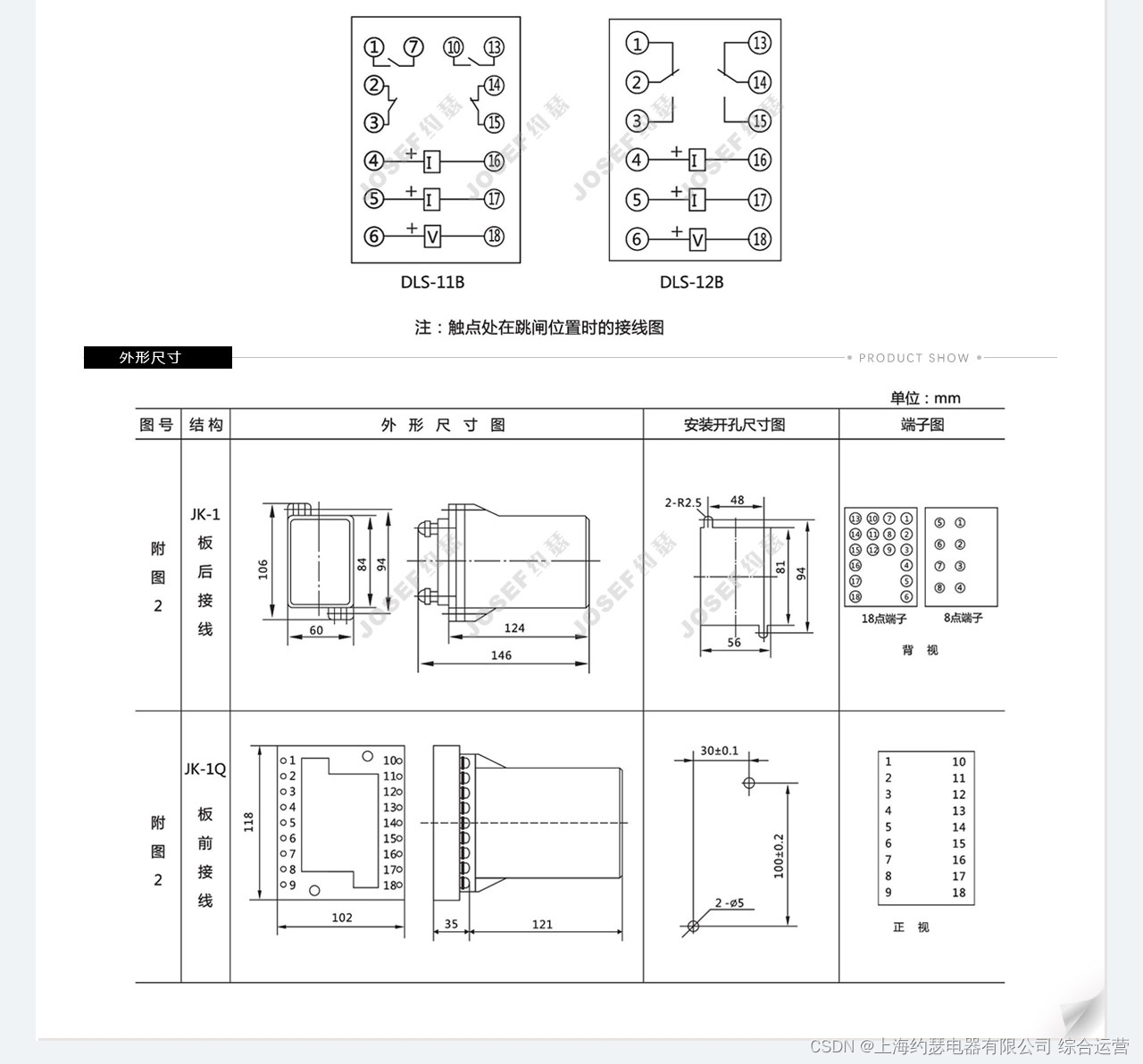

3、 ... and 、 Wiring diagram

Four 、 Opening and overall dimension

DLS-10B Series electromagnetic two position relay adopts JK-1 Shell , See the attached figure for details 2

DLS-12B/DC220V Two position relay
