Function stack frame creation and destruction

In early learning , We may have a lot of confusion ？

such as ：

• How local variables are created ？
• Why are the values of local variables random ？
• How functions pass parameters ？ What is the order of passing parameters ？
• What is the relationship between formal parameters and arguments ？
• How do function calls do ？
• How to return after the function call is completed ？

Today, I know how to create and destroy function stack frames , In fact, I have cultivated my internal skills , You can also understand more knowledge in the later stage .

The environment we use today is VS2013, Don't use too advanced compilers , The more advanced the compiler , The harder it is to learn and observe .

At the same time, under different compilers , There is a slight difference in the creation of stack frames in the process of function call , The details depend on the implementation of the compiler .

register

First, let's look at registers .

  This pyramid is part of the computer memory , Hard disk , Memory ,cache( cache ), register

The reading speed of this picture increases from bottom to top , But the storage space decreases , And the cost is higher .

Must have known something before , Here we only introduce the register .

The register is CPU The internal components of , yes CPU The place where instructions and data are taken during operation , fast , Registers can be used to temporarily store instructions 、 Data and address . stay CPU in , There are usually general-purpose registers , Such as instruction register IR; special function register , Such as program counter PC、sp etc. .

Our common registers are eax ,ebx, ecx, edx,ebp,esp.

The last two registers are used to store addresses , These two addresses are used to Maintain function stack frame Of .

Function stack frame creation and destruction

We have learned that , Every function call , Create a space in the stack area .

So we naturally want to define functions , To facilitate observation , We try to divide the code into enough details .
















       #include<stdio.h>






























       int Add(int x, int y)















        {















       int z =
       0;















        z = x + y;















       return z;















        }






























       int main()















        {















       int a =
       10;















       int b =
       20;















       int c =
       0;






























        c =
       Add(a, b);






























       printf(
       "%d\n", c);






























       return
       0;















        }







  Pictured , Functions are created on the stack , If this is main Function stack frame of function , So when the program runs to main Function time , register ebp and esp The address stored in is main The beginning and end address of the function .

Empathy , When the program runs to which function ebp and esp Just point to the space of that function , And this space is called the of this function Function stack frame .

According to the usage habit of stack space , Use the high address first and then the low address , So usually ,ebp be called Pointer at the bottom of the stack ,esp be called Top pointer of stack .

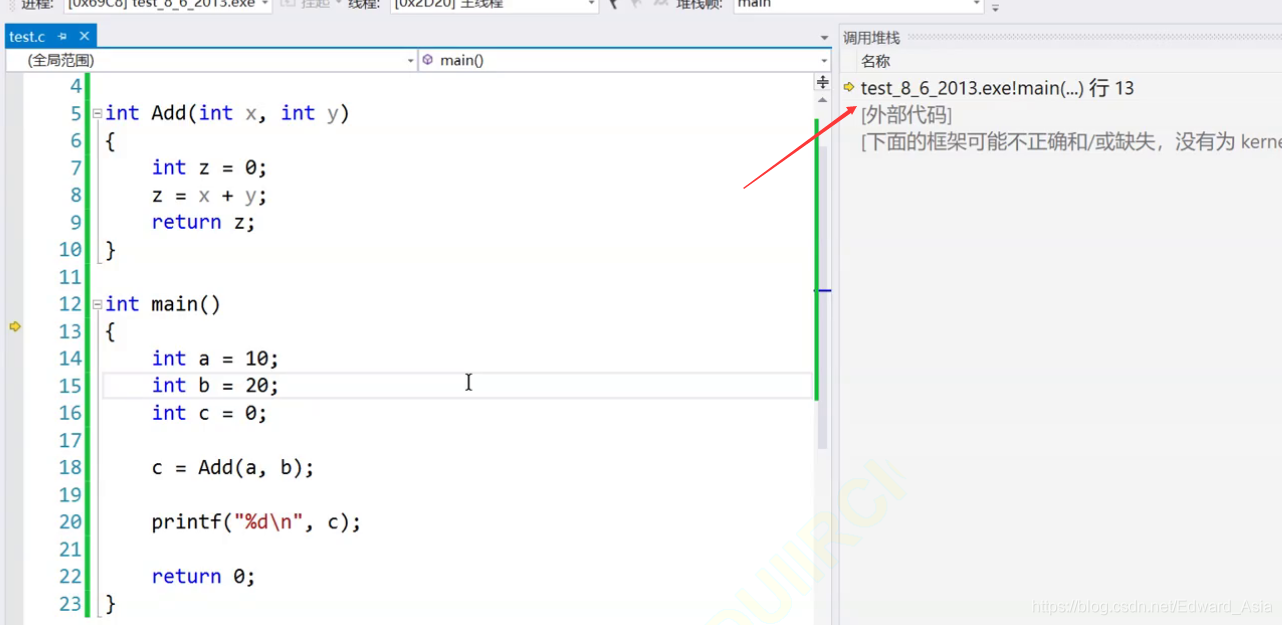

Then we debug , Look at the call stack of the function .

  We found that ,main Function called , So who called it ？

Let's keep going , When the code is finished, you will find that __tmainCRTstartup This function calls main function

And then main The return value of the function is given to mainret.

  At the same time ,__tmainCRTstartup Also by mainCRTstartup This function calls .

  So you can roughly understand the space allocation of the program's function in the stack .

  Now let's specifically analyze how to do it .

Let's press F10, Then find... In the debug window Go to disassembly Options

  And then there's this interface , This is a C The corresponding assembly code in language .

  In order to facilitate our observation , We turn off the display symbol name option .

The first step is push

Because execution main Function time __tmainCRTStartup Will call first main function , So register ebp and esp The first point should be __tmainCRTStartup Function space , As shown in the figure below .

  and push It means to press the stack , That is, here will ebp Put it on the top of the stack , And as the top of the stack moves , At the top of the stack esp It should also be moved to the top of the stack , stay 32 The address size under bit is 4 byte , So this is also moving up ( reduce )4 byte .

 mov

  Here is the esp The value of ebp.

 sub

According to the code , Yes, it will esp The value of minus 0E4h( Hexadecimal ), the esp Move up 0E4h.

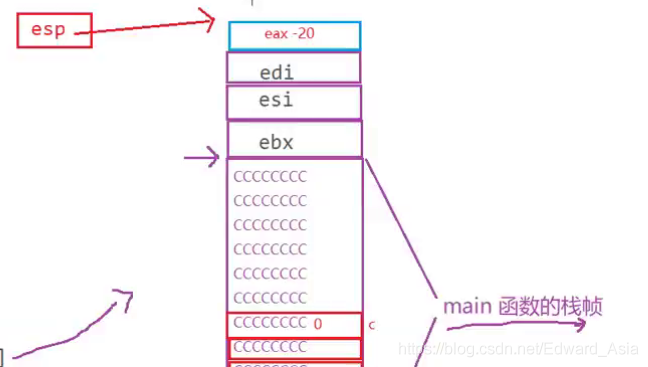

And here ebp and esp The space contained has changed , In fact, the space here is for main Function opens up space .

 push

  here push Three times , take ebx,esi,edi Put it in the stack .

 lea(load effictive address Load valid address ),mov,mov,rep stos

  According to the code, it will ebp Minus the address of 0E4h I.e edi, Down 39h Time ( until ebp), take dword( One word by 2 Bytes ,dword by 4 byte ) All bytes are set to 0cccccccch.

The following is the official start of implementation C Valid code for language

  According to the code , Yes, it will 0Ah Put it in ebp-8 The location of , And the size is 4 Bytes , It actually means for a Open up space .

And if you create a variable , Not initialized , Put the default value in the variable , That's what's going on here cccccccc, So when printing, it will be hot .

  And then there's creating b Variables and c Variable

Similarly, it will 14h Put it in ebp-14h The location of ; take 0 Put it in ebp-20h The location of .

Then there's the call Add function

First, according to the code, it will ebp-14h( namely b) Put the value of eax Inside .

And then eax Pressing stack .

  Empathy , take ebp-8( namely a) Put the value of ecx Inside .

And then ecx Pressing stack .

  In fact, these two steps are parameter transmission .

 Add The steps in the function are actually and main The creation of functions is similar to , No more repetition here .

Here is the general ebp+8(a) Put the value of eax Inside , And then ebp+0Ch(b) Value added to eax in , The final will be eax Put the value of ebp-8(z) in .

When you return, you will ebp-8(z) Put it in eax in , Because when the function ends z Will be destroyed , And the register will not be destroyed .

  there pop Is to stack registers , And then ebp Assign to esp

Then continue out of the stack , Pop the top of the stack to ebp inside . And at this time The top of the stack is what was stored before main Functional ebp

pop after ebp Point to main At the bottom of the stack

ret： Jump to where the function will be called . Corresponding to call, Return to the corresponding call The next instruction called , If there is a return value , Put in eax in .

Destruction of formal parameters

the esp Move down the , send esp and ebp There is less space between , So as to destroy the formal parameters .

  The final will be eax Put the value of ebp-20h(c) in .
