Enjoy JVM -- knowledge about GC garbage collection

How to judge whether an object is garbage

Reference counting

principle ： When an object is created （ Generally in the stacking area ） when , Create a counter at the same time , When the object is referenced , Then the counter adds 1, When the reference expires , Then the counter is reduced 1. When the counter is 0 when , Indicates that this object is garbage

problem ： There's a circular reference problem . When A quote B,B quote C,C Quote again A Words , Then this 3 An object will never be judged as garbage

Reachability algorithm

Identify some objects as root objects （GC Roots）, Starting from these root objects , Traverse to find the objects with reference to these root objects , Form a reference chain , Objects that are not on these reference chains are judged as garbage .

As shown in the figure below , Two light blue objects are garbage .

The problem is coming. , Which objects can be used as GC Roots？

JVM stack： Objects in the virtual machine stack native method stack： Objects in the local method stack runtime constant pool： Objects in the runtime constant pool static reference in method area： Static variables in the method area

How to recycle garbage

Tag clearing algorithm

According to the reachability algorithm , Mark unreachable objects as garbage and uniformly remove all garbage

advantage ： When there are fewer objects to recycle , More efficient

shortcoming ： A lot of memory fragmentation

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-0WRAcBA7-1657975798774)(https://upload-images.jianshu.io/upload_images/27867710-e01f5fe07b59dfaa.png?imageMogr2/auto-orient/strip%7CimageView2/2/w/1240)]

Tag copy algorithm

Divide the memory area into two parts , Objects are only allocated in half of the area according to the reachability Algorithm , Mark unreachable objects as garbage and copy all living objects to the other half of the area in order , Clear all current areas

advantage ： Solve the problem of large amount of memory fragmentation

shortcoming ： Half of the memory area is unavailable , Waste of memory

Marking algorithm

According to the reachability algorithm , Mark unreachable objects as garbage, and clean up and copy all living objects to one end of memory

advantage ： No memory fragmentation problem , No memory waste

shortcoming ： Low efficiency in the replication process

JVM GC Generational algorithm

as everyone knows ,JVM Heap memory is managed in generations , as follows .GC Different methods will be adopted for different areas GC Algorithm

The younger generation ： Store a large number of objects that live and die , Using the label copy algorithm , take eden Area and survivor from Mark the garbage in the area , Then copy all the living objects to survivor to District .

Old age ： Store long-lived objects , Using the mark sorting algorithm , Every time GC Copy the living object to one end of memory .

GC The timing of

In short ： When there is not enough memory , It will happen GC

Minor GC

opportunity ：Eden When the object cannot be stored

Algorithm ： Tag copy algorithm

Major GC（Full GC）

opportunity ：old When the store cannot store objects

Algorithm ： Marking algorithm

Garbage collector

Garbage collectors distinguish between younger and older generations

Serial

Young generation collector using replication algorithm , Single thread garbage collection , The recycling process requires STW（stop the world）

The old collector used together ：CMS,Serial Old

advantage ： Simple , Efficient , Suitable for use in a single core environment

shortcoming ： Can't take advantage of the fact that machines are multi-core now

ParNew

Serial Multithreaded version of , In addition to multithreading garbage collection , The rest are related to Serial Agreement

The old collector used together ：CMS,Serial Old

advantage ： Using the function of multi-core （ In a single core environment ,Serial It's better than ParNew fast ）

shortcoming ： The recycling process requires STW, When there is too much to recycle , The pause time will be longer

Parallel Scavenge

Young generation collector using replication algorithm , Multithreading for garbage collection , And ParNew The difference is that it focuses on the throughput of the system

throughput = Time to run user code / （ Time to run user code + GC Time for ） High throughput applications are suitable for tasks executed in the background

This collector has two parameters ：

-XX:MaxGCPauseMillis： Set the maximum pause time for garbage collection

-XX:GCTimeRatio： Set the ratio of garbage collection time to total time

Set up -XX:MaxGCPauseMillis Can improve response speed , Set up -XX:GCTimeRatio Can improve throughput , Improve CPU Utilization efficiency of

In addition, the collector has another parameter ：-XX:UseAdaptiveSizePolicy, Open it up ,JVM According to the running state of the application , Dynamic setting eden District ,survivor District ,old The ratio between districts , To provide the most appropriate pause time or maximum throughput . Here I would like to recommend an architecture learning exchange circle . Exchange learning guidance pseudo Xin ：1253431195（ There are a lot of interview questions and answers ） It will share some videos recorded by senior architects ： Yes Spring,MyBatis,Netty Source code analysis , High concurrency 、 High performance 、 Distributed 、 Principles of microservice architecture ,JVM performance optimization 、 Distributed architecture and other necessary knowledge systems for Architects . You can also get free learning resources , Now it's been a lot of good

Serial Old

Serial Old age version of collector , Single thread , Using the mark sorting algorithm

Parallel Old

Parallel Scavenge Old age version of collector , Multithreading , Using the mark sorting algorithm

CMS（concurrent mark sweep）

A collector designed to minimize pause time

Initial marker ： need STW, Mark all root objects in the old age .GC roots Concurrent marking of objects directly referenced and objects referenced by surviving objects in the younger generation ： There is no need to STW, Mark all living objects . Start with the root object found in the previous stage , Carry out accessibility analysis .（JVM Will divide the old age logic into areas of equal size in advance Card, Because the application executes concurrently , Some reference relationships may change ,, If the reference relationship changes , Will be passed card marking Mark the area as dirty （dirty card）） Final marker ：STW, Rescan objects , Relabel and clear and reset ： There is no need to STW, Remove all trash , Reclaiming memory , Reset CMS The internal data of the algorithm , For the next time GC To prepare for

stay java 9 Start to be enabled in , stay java 14 The deleted

advantage ：

To reduce the STW Time for , Improve better response speed

shortcoming ：

The biggest problem is that the marker removal algorithm is used for the elderly generation , A large number of memory fragments will be generated CPU Resource sensitive , Because there are many concurrent steps , Take up part of the thread , Reducing throughput cannot handle floating garbage （ Concurrent cleanup , New waste may be generated , And you have to wait until the next time GC Handle ）

G1

G1 Logically, there are still young people , The concept of the old age . Implementation , The memory area will be divided into several blocks according to a fixed size , be called region. every last region Can belong to eden District , It can also belong to old District , It can change dynamically . Every time GC with region Recycling for units . adopt **-XX:MaxGCPauseMills** This parameter , Can be set every time STW Maximum pause time .eg. Happen when young gc when ,G1 According to the maximum pause time , Try to calculate the cleanability region The number of , You can not clear all young District region, Conduct GC, Achieve effective control GC The pause time of .

gc The algorithm as a whole is tag sorting , From a single region Technically, it's a marker copy , Will single region Copy the surviving object to an empty region Up .

ZGC

The pause time will not exceed 10ms Support large memory , achieve 4TB

so ZGC Suitable for services with large memory and low latency

Shennandoah

CMS A big problem is that the tag is used - Clear algorithm , Leading to serious fragmentation , Think about why CMS Don't use the tag sorting algorithm ？ The reason is CMS Hope to reduce STW Time for , So if you sort out with markers , So when sorting , The reference address of the object will change , At this time, the user thread cannot access , Then we have to STW, The reference address can only be used after switching . This will improve STW, So the mark used to clear .

Empathy G1 When marking copy , There will be STW The process of . and Shennandoah When copying , A reading barrier is used and is called “Brooks Pointers” Forward pointer for , Avoid losing STW The process .

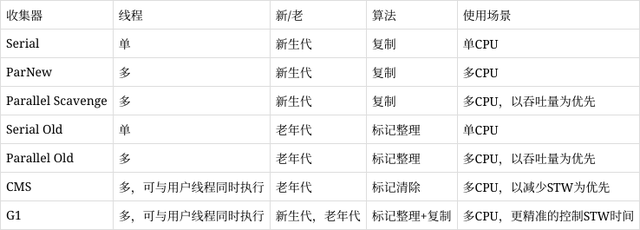

Garbage collector summary

About garbage collector , I'm basically talking about , If you are interested in a collector , Can do in-depth research

Common combinations ：
