Implement browser servlet database interaction

2022-07-18 07:44:00 【Rong, who has to learn every day】

Catalog

1、 Create a new project module
2、 add to web modular
3、 Import jar package
4、 Add module dependencies
5、 Deploy Tomcat
- 5.1 The first way
- 5.2 The second way
6、 To configure Web Containers
- 6.1 The first method of configuration
- 6.2 The second method of configuration
7、 Create client's html Request file
8、 newly build JDBC Connect to the operation database
- 8.1 Database operation
- 8.2 Change user name and password
9、 newly build Servlet Components
10、 To configure servlet mapping
- 10.1 The first method
- 10.2 The second method
11、 Check whether the data can be successfully added to the database

1、 Create a new project module

stay project So let's make a new one module
Insert picture description here

2、 add to web modular

Built in your module Right click to select add framework support
Insert picture description here

3、 Import jar package

In the project project Create a new directory in , Name it lib Folder .
We can also put lib Create a new folder directly in WEB-INF Next , Such a bad place is this lib It can only be the current moudle exclusive . If there is a second moudle New... We need to repeat again lib .
Insert picture description here
Connect what you want to use with the database jar Package import in , That is, copy and paste into lib Under the folder , Download here jar The package and database versions should be consistent ,java Connect mysql Download the driver package of

Insert picture description here
stay lib Folder right click Add as Library

4、 Add module dependencies

Click on File - Project Structure , Perform the following steps to configure
Insert picture description here

First import Tomcat Dependence and Lib rely on , It includes JSP and Servlet Need to use some API, as well as JDBC A library that connects to a database
Insert picture description here

5、 Deploy Tomcat

5.1 The first way

After adding dependencies above , here Problems It will show a problem , Click on Fix Just fix it
Insert picture description here

5.2 The second way

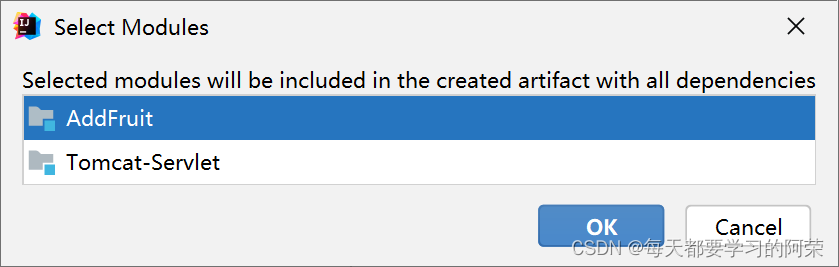

To Artifacts Delete this module before adding it again , The steps are as follows ：

Insert picture description here
Be careful not to choose the wrong one Archive（ representative War package , Namely Web The package ）, Although there's nothing wrong ,Tomcat Will automatically decompress it for you , But it's better to choose the one above

After selecting, click OK , The project is deployed
Insert picture description here
Don't forget to apply after completion , Click on Apply And then click OK That's all right.

6、 To configure Web Containers

Be careful ： Here is tomcat Server, No tomcatEE Server
Insert picture description here
The first use here is to import Tomcat application , Choose all here Tomcat Just install the directory

Then jump to the deployment page , Add deployment

6.1 The first method of configuration

It's direct here Fix That's all right.
Insert picture description here

6.2 The second method of configuration

In this way, if there are multiple items, you can add them selectively
Insert picture description here

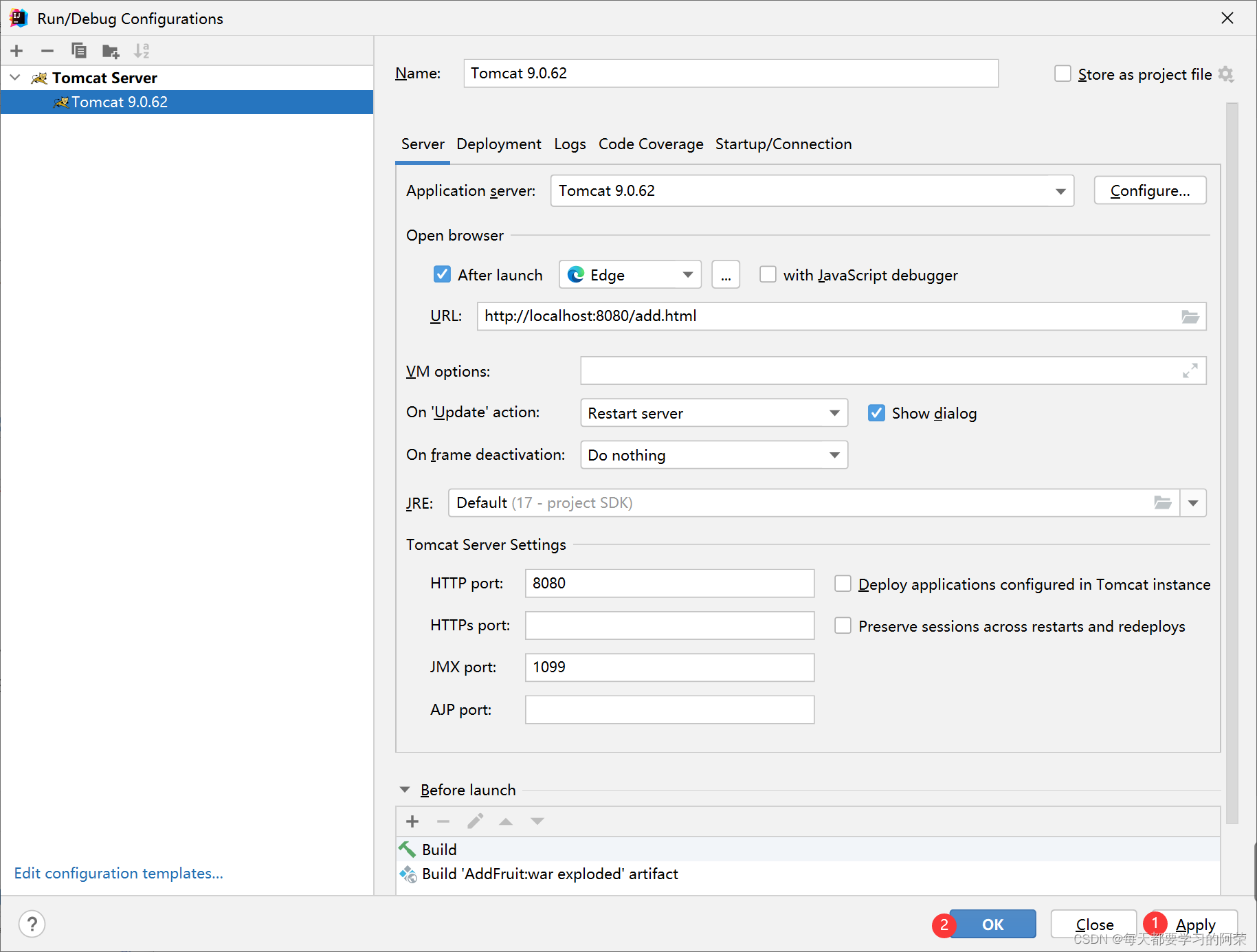

Then on this page , Change this file directory to a /, Set the jump later URL You can have one less layer of folders

① Fill in web Container name , It's usually tomcat+ Version number
② After Launch It means Tomcat After loading, the browser selected in the back will open by default URL Corresponding resources
③ Set up your URL Resources to address , Upper general Application context Set as a / , If so, set the link here directly as http://localhost:8080/add.html that will do , If you have no settings , The link set here has one more level of directory http://localhost:8080/ Your directory name /add.html

Insert picture description here
Be careful ：

Here, if you haven't made any changes , If the URL is ：http://localhost:8080/ Your directory / , So it shows that we are visiting index.html（Tomcat At the end of the default welcome page ）, But you didn't write this resource , Will report 404（ Resource not found ） error .
We can go through <welcome-file-list> Tab to set the welcome page ( stay tomcat Of web.xml Set in , Or in your own project web.xml Set in )

And remember apply - ok That's all right.
Insert picture description here

7、 Create client's html Request file

stay web Right click... Under the folder new One HTML file , Notice the new one here html The document is and WEB-INF In the same directory , Don't put the new file in WEB-INF Directory
Insert picture description here

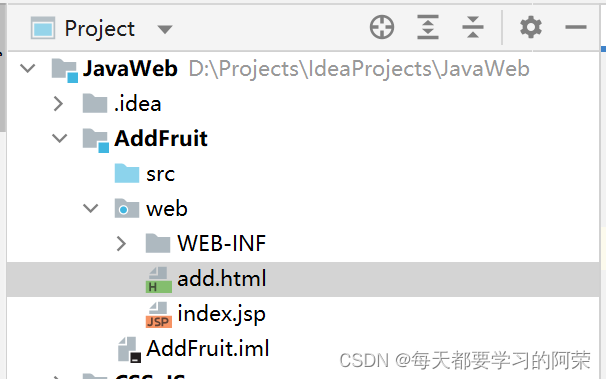

The file after construction is shown in the following figure

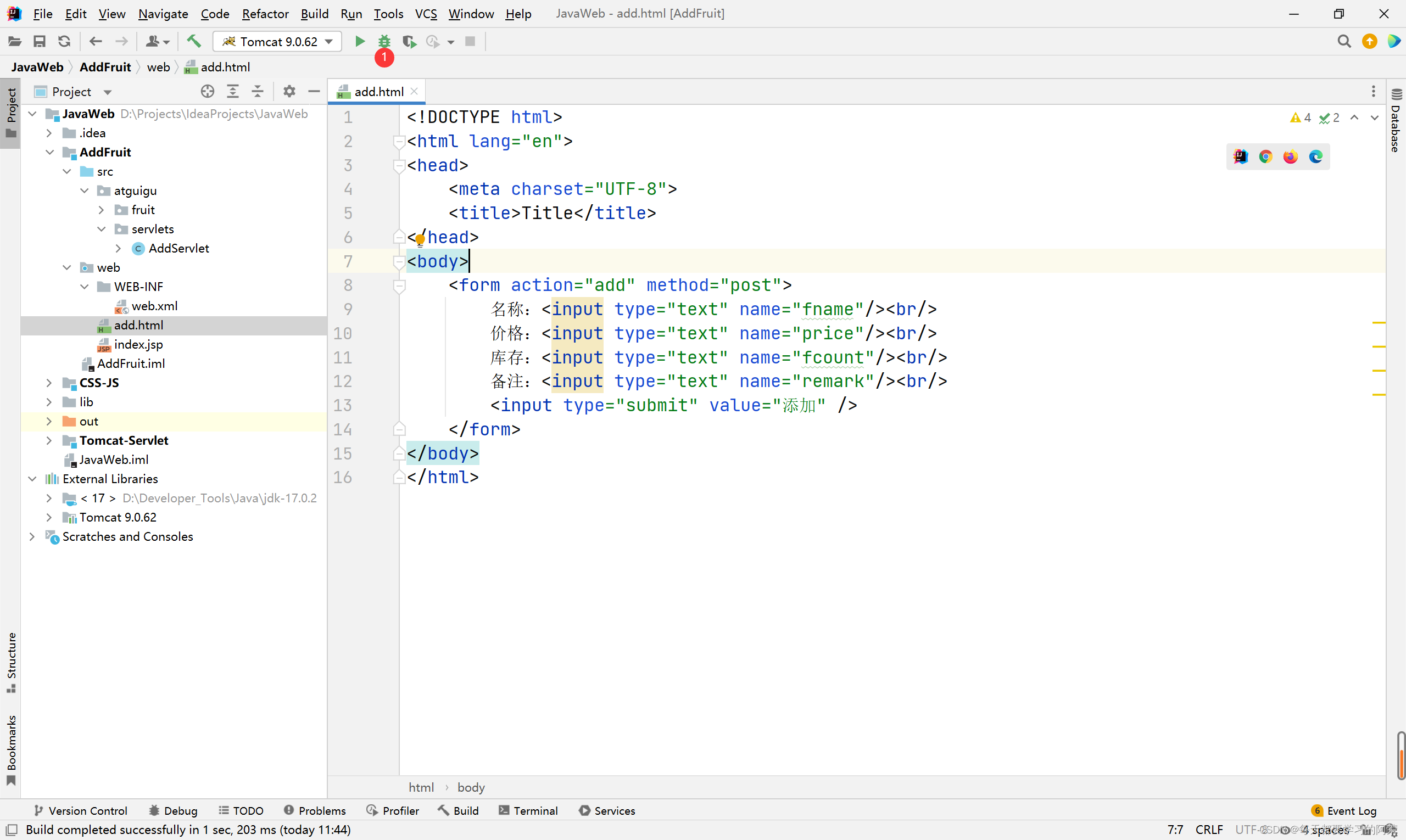

stay add.html Create a new form in

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
    <form action="add" method="post">
         name ：<input type="text" name="fname"/><br/>
         Price ：<input type="text" name="price"/><br/>
         stock ：<input type="text" name="fcount"/><br/>
         remarks ：<input type="text" name="remark"/><br/>
        <input type="submit" value=" add to " />
    </form>
</body>
</html>

Be careful ：

Null pointer or NumberFormatException . Because there is price and inventory ,
If the price is not available , As a result, you want to be right null Conduct Integer.parseInt() You're going to report a mistake .
The reason for the mistake is mostly because name=“price” There is a mistake here , It turns out that Servlet End or use request.getParameter(“price”) To get .（ No spaces , It has to be exactly the same ）

8、 newly build JDBC Connect to the operation database

In this one module Under the src Create a new package under the folder ,fruit Package placement is related to database connection interaction DAO Interface file 、 Implementation classes and fruit Fruits, etc , You can go to the official official account of shangsilicon Valley to reply JavaWeb To get relevant information , Just copy and paste it directly ,DAO The specific principle of implementation can be seen in my previous article （ Silicon Valley ）JDBC Always review
Insert picture description here

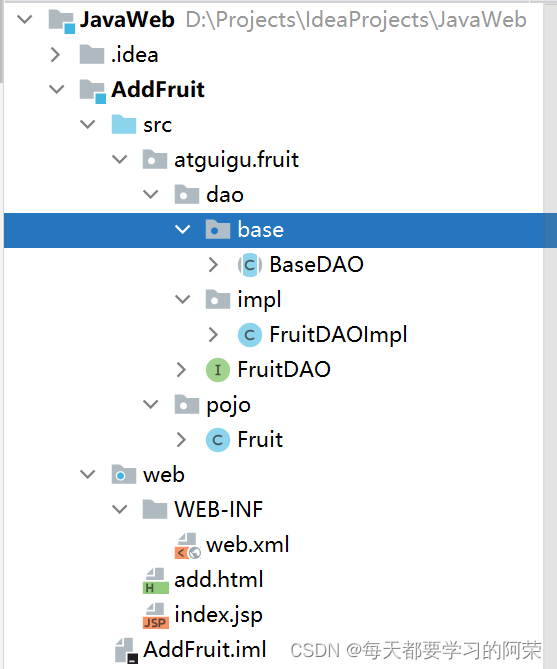

That's it when it's built ：

8.1 Database operation

The default database here is enabled , And there are already fruit This form , If not , Click the following directory in the Shang Silicon Valley information to find fruitdb.sql Run it in the database , It will generate a fruitdb Database and fruit form , After this step, keep the database open
Insert picture description here

8.2 Change user name and password

Pasted here BaseDAO The file is used directly in Java How to configure the four elements in the code , So we found BaseDAO file , Modify the user name and password to be your own user name and password （ If you don't modify this connection, you won't be able to connect to the database , After adding data in a while, the server will respond with 500 FALSE ）
Insert picture description here

9、 newly build Servlet Components

We will be having atguigu Create a new servlets Folder , stay servlet Create a new folder AddServlet class , Inherit one HttpServlet class （ This class is in the Tomcat Inside servlet-api jar In the bag , So remember to import Tomcat rely on ）, And because we add.html The method defined in is post, So we're going to rewrite it doPost Method （ If it is not rewritten, it will report 405 error ）, At the same time through request Object to get the information sent by the user
Insert picture description here
AddServlet The components are written as follows ：

package atguigu.servlets;

import atguigu.fruit.dao.FruitDAO;
import atguigu.fruit.dao.impl.FruitDAOImpl;
import atguigu.fruit.pojo.Fruit;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

public class AddServlet extends HttpServlet {

    // Respond to your http request , The client sends a... To the server http request , The server encapsulates it into a HttpServletRequest object
    @Override
    public void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        String fname = request.getParameter("fname");

        String priceStr = request.getParameter("price");
        Integer price = Integer.parseInt(priceStr);

        String fcountStr = request.getParameter("fcount");
        Integer fcount = Integer.parseInt(fcountStr);

        String remark = request.getParameter("remark");

        FruitDAO fruitDAO = new FruitDAOImpl();
        boolean flag = fruitDAO.addFruit(new Fruit(0, fname, price, fcount, remark));

        System.out.println(flag ? " Add success ！" : " Add failure ！");
    }
}

Be careful ：

405 problem ： The currently requested method does not support . such as , Our form method=post , that Servlet Must correspond to doPost, Otherwise the newspaper 405 error .

10、 To configure servlet mapping

How do we put add This action is similar to AddServlet What about the correspondence , Just click the Add button on my side , Send to server , The server knows which component I want to use to process this information

10.1 The first method

stay module Under the module of web In the catalog WEB-INF Found in folder web.xml file , Set... In it servlet and servlet-mapping Tag for connection mapping
Insert picture description here

The document is modified as follows ：

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd" version="4.0">
    <servlet>
        <servlet-name>AddServlet</servlet-name>
        <servlet-class>com.atguigu.servlets.AddServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>AddServlet</servlet-name>
        <url-pattern>/add</url-pattern>
    </servlet-mapping>
</web-app>

Be careful ：

Among them url-pattern In order to / At the beginning , This can't be lost , Unknown cause .

xml File mapping process ：

1.   Request from user ,action=add
2.   In the project ,web.xml  Find  url-pattern = /add   ->  The first 12 That's ok
3.   Find the first 11 Yes  servlet-name = AddServlet
4.   Find a peace  servlet-mapping  in  servlet-name  coincident  servlet ,  Find No 7 That's ok
5.   Find the first 8 Yes  servlet-class -> com.atguigu.servlets.AddServlet
6.   The user sent post request （method=post） ,  therefore  tomcat Will execute  AddServlet  Medium doPost Method

10.2 The second method

Use annotations , No need to modify web.xml file , Directly in your AddServlet Class using annotations

@WebServlet(“/add”), This one in double quotation marks /add Just like your original url-pattern The contents in the label are consistent .

The code is as follows （ Only modify in the first line ）：

@WebServlet("/add")
public class AddServlet extends HttpServlet {

    // Respond to your http request , The client sends a... To the server http request , The server encapsulates it into a HttpServletRequest object
    @Override
    public void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        String fname = request.getParameter("fname");

        String priceStr = request.getParameter("price");
        Integer price = Integer.parseInt(priceStr);

        String fcountStr = request.getParameter("fcount");
        Integer fcount = Integer.parseInt(fcountStr);

        String remark = request.getParameter("remark");

        FruitDAO fruitDAO = new FruitDAOImpl();
        boolean flag = fruitDAO.addFruit(new Fruit(0, fname, price, fcount, remark));

        System.out.println(flag ? " Add success ！" : " Add failure ！");
    }
}

Be careful ：

Choose one of the two ways , Otherwise, an error will be reported

11、 Check whether the data can be successfully added to the database

Click on debug Carry out commissioning and operation
Insert picture description here

Tomcat Successfully deployed and Web After the container is successfully configured, the interface

Insert picture description here
The resource interface to respond after successful operation ：

The database interface ：

Insert picture description here

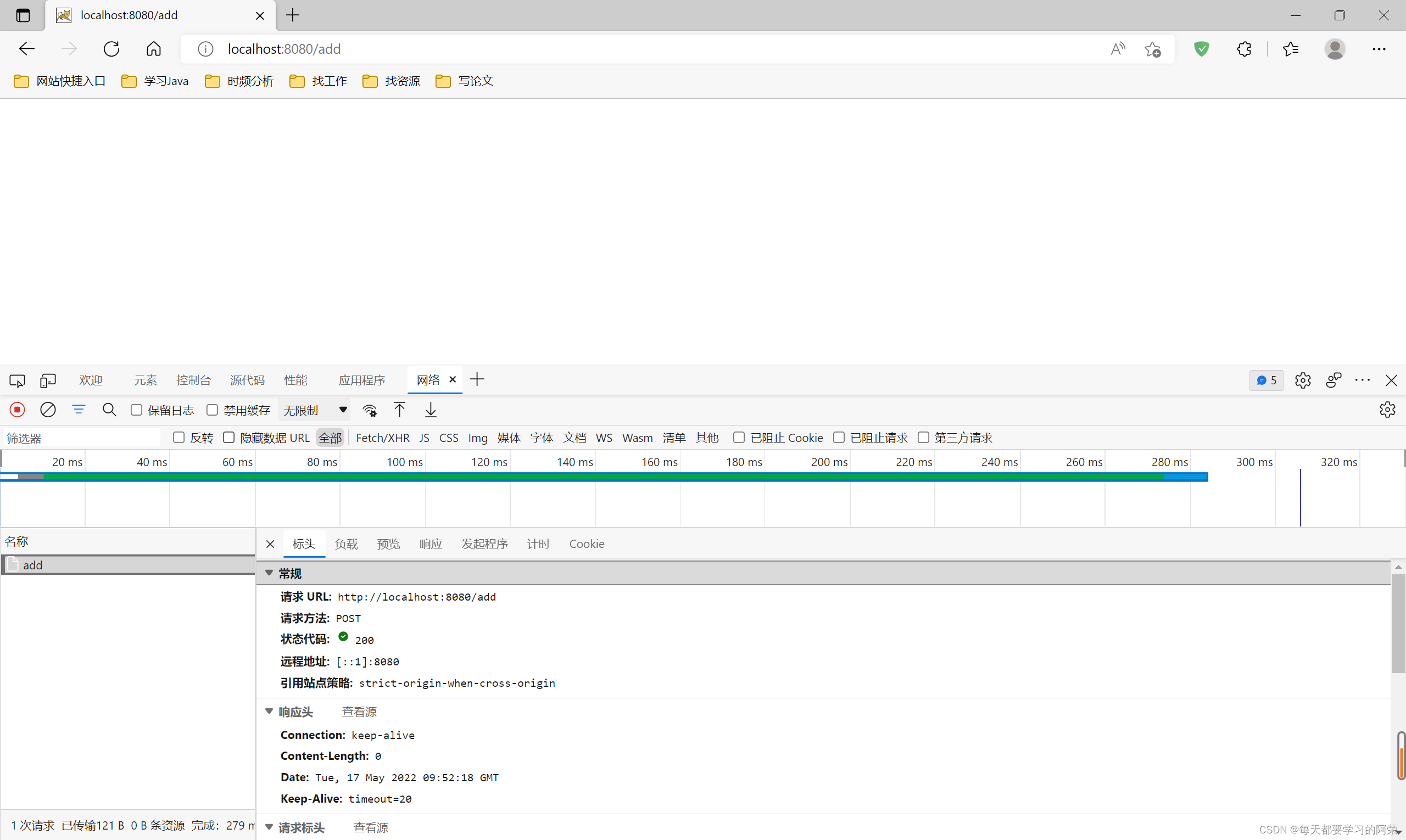

After writing something inside, click the Add button , Let's see what happens , A successful addition is the return 200 Status code for ,
Insert picture description here
Now look at the database interface , Successful user database interaction .

At this time, the console prints and adds the word success （ There may be a garbled code problem here , stay servlet Code set settings in ）
