TIA Portal WinCC PRO Control the display and hiding of layers through scripts

WinCC Professional In the project , You can use scripts to control the hiding and display of a layer on the screen , Once the layer is hidden , Then the objects in the layer will also be hidden , Show the same

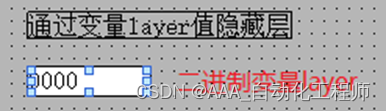

Define the binary internal variables that control the display and hiding of the layer layer,

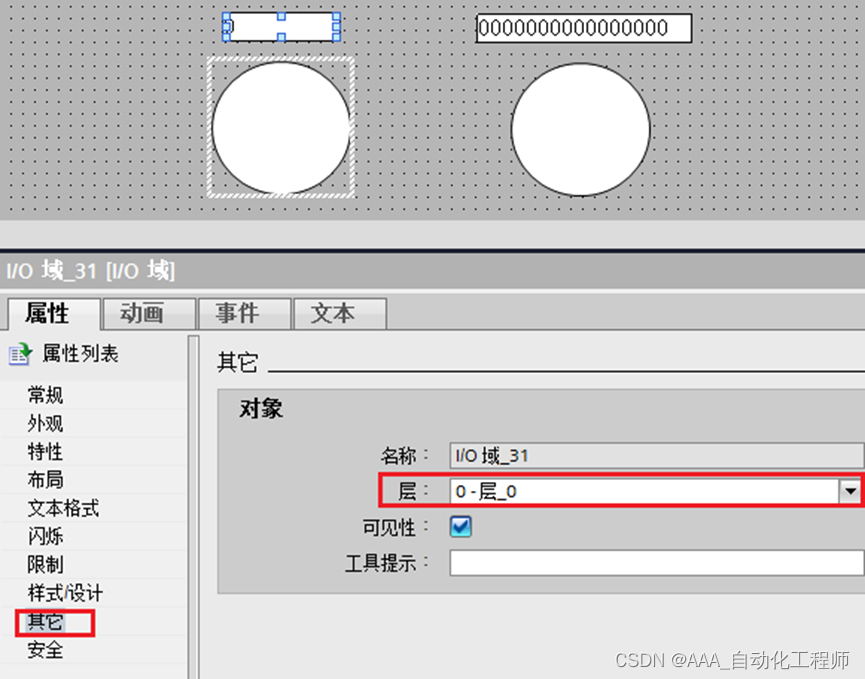

Define the left side in the figure I/O The level of domain and circular objects is 0 layer ,

Define the right I/O The level of domain and circular objects is 2 layer ,

The left button in the figure adds control 0 Layer of VBS Script . Script logic is ： If the variable layer=0 hide 0 layer ; If the variable layer=1 Show 0 layer ,

The right button in the figure adds control 2 Layer of VBS Script . Script logic is ： If the variable
