Data warehouse ODS Layer construction

In this project, the construction of each layer of data warehouse is mainly divided into two parts , The first part is to determine which tables , The second part is to determine the way of data loading .

We're doing ODS When the floor is built , The following points need to be clarified ：

1）ODS The table structure design of layer relies on the data structure synchronized from the business system .

2）ODS The layer should save all historical data , Therefore, the compression format should choose the one with high compression , Choose... Here gzip.

3）ODS The naming convention of layer table name is ：ods_ Table name _ Single partition incremental full identification （inc/full）.

When we synchronize data , The synchronized user behavior log data is json String format ; The incremental table uses Maxwell Synchronized , It's also json String format ; The full scale uses DataX synchronous , The data synchronized to is tsv Format . therefore , We're doing ODS When designing the floor structure , This needs to be taken into account .

1. Log table design

We have two options , The first scheme is to create a table with only one field , One line stores a json character string , When we get the corresponding data , Can pass get_json_object() function , Get the information of the corresponding field from the string ; The second scheme is that we directly build a json surface , The fields in this table and json The fields in the string correspond one by one , This will make it convenient for us to use data later . Our final choice is to build json surface

1.1 Log table creation statement

Let's go to the official website to check Jian json Syntax table ：

We combine behavioral data json The format of , The final log table creation statement is as follows ：

DROP TABLE IF EXISTS ods_log_inc;
CREATE EXTERNAL TABLE ods_log_inc
(
    `common`   STRUCT<ar :STRING,ba :STRING,ch :STRING,is_new :STRING,md :STRING,MID :STRING,os :STRING,uid :STRING,vc
                      :STRING> COMMENT ' Public information ',
    `page`     STRUCT<during_time :STRING,item :STRING,item_type :STRING,last_page_id :STRING,page_id
                      :STRING,source_type :STRING> COMMENT ' Page information ',
    `actions`  ARRAY<STRUCT<action_id:STRING,item:STRING,item_type:STRING,ts:BIGINT>> COMMENT ' Action information ',
    `displays` ARRAY<STRUCT<display_type :STRING,item :STRING,item_type :STRING,`order` :STRING,pos_id
                            :STRING>> COMMENT ' Exposure information ',
    `start`    STRUCT<entry :STRING,loading_time :BIGINT,open_ad_id :BIGINT,open_ad_ms :BIGINT,open_ad_skip_ms
                      :BIGINT> COMMENT ' Startup information ',
    `err`      STRUCT<error_code:BIGINT,msg:STRING> COMMENT ' error message ',
    `ts`       BIGINT  COMMENT ' Time stamp '
) COMMENT ' Activity information table '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_log_inc/';

We can see that the compression format is not written in the above table creation statement , But we are transmitting to HDFS When on, it uses gzip Compressed format , This is because hive It can automatically recognize our gzip Compressed format .

As shown in the figure below , We built the table successfully ：

1.2 Log table load statement

Next, we write the log table loading statement , We will hdfs The data on is loaded into the table of the corresponding date partition ：

-- Data loading
load data inpath '/origin_data/gmall/log/topic_log/2022-05-01' into table ods_log_inc partition(dt='2022-05-01');

But this statement can only 2022-05-01 The daily data is loaded into the table , So we need to write a daily loading script , Used to load log table data every day ：

（1） stay hadoop102 Of /home/hadoop/bin Create under directory hdfs_to_ods_log.sh

[[email protected] bin]$ vim hdfs_to_ods_log.sh

（2） We write the following in this script ：

#!/bin/bash

#  Defining variables is easy to modify
APP=gmall

#  If it is the entered date, the entered date shall be taken ; If no date is entered, take the day before the current time
if [ -n "$1" ] ;then
   do_date=$1
else
   do_date=`date -d "-1 day" +%F`
fi

echo ==================  Log date is  $do_date ==================
sql="
load data inpath '/origin_data/$APP/log/topic_log/$do_date' into table ${APP}.ods_log_inc partition(dt='$do_date');
"
hive -e "$sql"

（3） Add permissions to the script

[[email protected] bin]$ chmod +x hdfs_to_ods_log.sh

（4） We only need to execute this script every day , You can complete the loading of log data , The following figure shows the loading 2022/5/1 The data of

[[email protected] bin]$ hdfs_to_ods_log.sh 2022-05-01

2. Business table design

The design of our full scale should be consistent with Mysql The fields of the corresponding table in the business system are consistent , in addition , We need to set up partitions , Load the data into the corresponding partition every day .

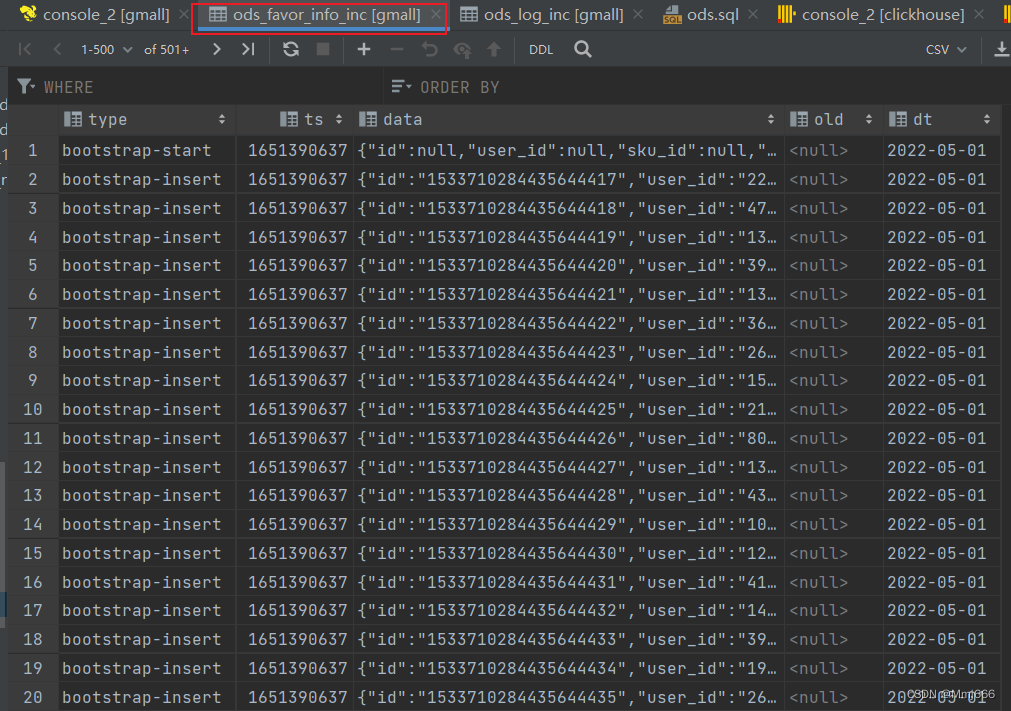

For the design of incremental table , Let's first look at the format of the data in the incremental table ：

We can see , Because we use Maxwell To synchronize , So the data we synchronized is based on json Stored in the form of a string , For incremental table , It's also about building json surface . The fields we finally leave are type,ts as well as data.

2.1 Activity information table （ Full scale ） Design

The table creation statement of the activity information table is as follows ：

DROP TABLE IF EXISTS ods_activity_info_full;
CREATE EXTERNAL TABLE ods_activity_info_full
(
    `id`            STRING COMMENT ' Activities id',
    `activity_name` STRING COMMENT ' The name of the event ',
    `activity_type` STRING COMMENT ' Type of activity ',
    `activity_desc` STRING COMMENT ' Activity description ',
    `start_time`    STRING COMMENT ' Starting time ',
    `end_time`      STRING COMMENT ' End time ',
    `create_time`   STRING COMMENT ' Creation time '
) COMMENT ' Activity information table '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_activity_info_full/';

We will hive In the table null The storage format of the value is set to ’‘ An empty string . Because we use DataX Take data from mysql Lead to HDFS Upper time ,DataX Will Mysql The null value is stored as ’' Empty string form . We want to make sure that hive Null values can be correctly identified , So here we will Hive Of NULL Defined as an empty string .

（Hive Default null value format ：‘\N’,Mysql Default null value storage format in ：null,datax Will be able to null Save value as ’'）

2.2 Activity rule table （ Full scale ） Design

DROP TABLE IF EXISTS ods_activity_rule_full;
CREATE EXTERNAL TABLE ods_activity_rule_full
(
    `id`               STRING COMMENT ' Number ',
    `activity_id`      STRING COMMENT ' type ',
    `activity_type`    STRING COMMENT ' Type of activity ',
    `condition_amount` DECIMAL(16, 2) COMMENT ' Full reduction amount ',
    `condition_num`    BIGINT COMMENT ' Full reduction of pieces ',
    `benefit_amount`   DECIMAL(16, 2) COMMENT ' Preferential amount ',
    `benefit_discount` DECIMAL(16, 2) COMMENT ' Discount ',
    `benefit_level`    STRING COMMENT ' Discount level '
) COMMENT ' Activity rule table '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_activity_rule_full/';

2.3 List of first-class categories （ Full scale ） Design

DROP TABLE IF EXISTS ods_base_category1_full;
CREATE EXTERNAL TABLE ods_base_category1_full
(
    `id`   STRING COMMENT ' Number ',
    `name` STRING COMMENT ' Category name '
) COMMENT ' List of first-class categories '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_base_category1_full/';

2.4 Class II （ Full scale ） Design

DROP TABLE IF EXISTS ods_base_category2_full;
CREATE EXTERNAL TABLE ods_base_category2_full
(
    `id`           STRING COMMENT ' Number ',
    `name`         STRING COMMENT ' Secondary classification name ',
    `category1_id` STRING COMMENT ' First level classification number '
) COMMENT ' Class II '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_base_category2_full/';

2.5 Class III category list （ Full scale ） Design

DROP TABLE IF EXISTS ods_base_category3_full;
CREATE EXTERNAL TABLE ods_base_category3_full
(
    `id`           STRING COMMENT ' Number ',
    `name`         STRING COMMENT ' The name of the third level classification ',
    `category2_id` STRING COMMENT ' Secondary classification number '
) COMMENT ' Class III category list '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_base_category3_full/';

2.6 Coding dictionary table （ Full scale ） Design

DROP TABLE IF EXISTS ods_base_dic_full;
CREATE EXTERNAL TABLE ods_base_dic_full
(
    `dic_code`     STRING COMMENT ' Number ',
    `dic_name`     STRING COMMENT ' Code name ',
    `parent_code`  STRING COMMENT ' Parent number ',
    `create_time`  STRING COMMENT ' Date of creation ',
    `operate_time` STRING COMMENT ' modification date '
) COMMENT ' Coding dictionary table '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_base_dic_full/';

2.7 Province table （ Full scale ） Design

DROP TABLE IF EXISTS ods_base_province_full;
CREATE EXTERNAL TABLE ods_base_province_full
(
    `id`         STRING COMMENT ' Number ',
    `name`       STRING COMMENT ' Name of province ',
    `region_id`  STRING COMMENT ' region ID',
    `area_code`  STRING COMMENT ' Area code ',
    `iso_code`   STRING COMMENT ' Old edition ISO-3166-2 code , For visualization ',
    `iso_3166_2` STRING COMMENT ' new edition IOS-3166-2 code , For visualization '
) COMMENT ' Province table '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_base_province_full/';

2.8 District Table （ Full scale ） Design

DROP TABLE IF EXISTS ods_base_region_full;
CREATE EXTERNAL TABLE ods_base_region_full
(
    `id`          STRING COMMENT ' Number ',
    `region_name` STRING COMMENT ' Area name '
) COMMENT ' District Table '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_base_region_full/';

2.9 Brand list （ Full scale ） Design

DROP TABLE IF EXISTS ods_base_trademark_full;
CREATE EXTERNAL TABLE ods_base_trademark_full
(
    `id`       STRING COMMENT ' Number ',
    `tm_name`  STRING COMMENT ' The brand name ',
    `logo_url` STRING COMMENT ' brand logo Picture path for '
) COMMENT ' Brand list '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_base_trademark_full/';

2.10 Shopping cart table （ Full scale ） Design

DROP TABLE IF EXISTS ods_cart_info_full;
CREATE EXTERNAL TABLE ods_cart_info_full
(
    `id`           STRING COMMENT ' Number ',
    `user_id`      STRING COMMENT ' user id',
    `sku_id`       STRING COMMENT 'sku_id',
    `cart_price`   DECIMAL(16, 2) COMMENT ' The price when you put it in the shopping cart ',
    `sku_num`      BIGINT COMMENT ' Number ',
    `img_url`      BIGINT COMMENT ' Product image address ',
    `sku_name`     STRING COMMENT 'sku name  ( redundancy )',
    `is_checked`   STRING COMMENT ' Is it selected ',
    `create_time`  STRING COMMENT ' Creation time ',
    `operate_time` STRING COMMENT ' Modification time ',
    `is_ordered`   STRING COMMENT ' Have you placed an order ',
    `order_time`   STRING COMMENT ' Order time ',
    `source_type`  STRING COMMENT ' Source type ',
    `source_id`    STRING COMMENT ' Source number '
) COMMENT ' Shopping cart scale '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_cart_info_full/';

2.11 Coupon information form （ Full scale ） Design

DROP TABLE IF EXISTS ods_coupon_info_full;
CREATE EXTERNAL TABLE ods_coupon_info_full
(
    `id`               STRING COMMENT ' Shopping voucher No ',
    `coupon_name`      STRING COMMENT ' Name of the shopping voucher ',
    `coupon_type`      STRING COMMENT ' Type of shopping voucher  1  cash coupon  2  coupon  3  Full discount  4  Full discount coupons ',
    `condition_amount` DECIMAL(16, 2) COMMENT ' Full amount ',
    `condition_num`    BIGINT COMMENT ' Full number ',
    `activity_id`      STRING COMMENT ' Activity number ',
    `benefit_amount`   DECIMAL(16, 2) COMMENT ' Less amount ',
    `benefit_discount` DECIMAL(16, 2) COMMENT ' discount ',
    `create_time`      STRING COMMENT ' Creation time ',
    `range_type`       STRING COMMENT ' Range type  1、 goods  2、 category  3、 brand ',
    `limit_num`        BIGINT COMMENT ' Maximum collection times ',
    `taken_count`      BIGINT COMMENT ' Number of times collected ',
    `start_time`       STRING COMMENT ' Start collection time ',
    `end_time`         STRING COMMENT ' End collection time ',
    `operate_time`     STRING COMMENT ' Modification time ',
    `expire_time`      STRING COMMENT ' Expiration time '
) COMMENT ' Coupon information form '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_coupon_info_full/';

2.12 Product platform attribute table （ Full scale ） Design

DROP TABLE IF EXISTS ods_sku_attr_value_full;
CREATE EXTERNAL TABLE ods_sku_attr_value_full
(
    `id`         STRING COMMENT ' Number ',
    `attr_id`    STRING COMMENT ' Platform properties ID',
    `value_id`   STRING COMMENT ' Platform property value ID',
    `sku_id`     STRING COMMENT ' goods ID',
    `attr_name`  STRING COMMENT ' Platform attribute name ',
    `value_name` STRING COMMENT ' Platform attribute value name '
) COMMENT 'sku Platform property sheet '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_sku_attr_value_full/';

2.13 Commodity list （ Full scale ） Design

DROP TABLE IF EXISTS ods_sku_info_full;
CREATE EXTERNAL TABLE ods_sku_info_full
(
    `id`              STRING COMMENT 'skuId',
    `spu_id`          STRING COMMENT 'spuid',
    `price`           DECIMAL(16, 2) COMMENT ' Price ',
    `sku_name`        STRING COMMENT ' Name of commodity ',
    `sku_desc`        STRING COMMENT ' Commodity Description ',
    `weight`          DECIMAL(16, 2) COMMENT ' weight ',
    `tm_id`           STRING COMMENT ' brand id',
    `category3_id`    STRING COMMENT ' category id',
    `sku_default_igm` STRING COMMENT ' Product image address ',
    `is_sale`         STRING COMMENT ' Are you selling ',
    `create_time`     STRING COMMENT ' Creation time '
) COMMENT 'SKU Commodity list '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_sku_info_full/';

2.14 Commodity sales attribute value table （ Full scale ） Design

DROP TABLE IF EXISTS ods_sku_sale_attr_value_full;
CREATE EXTERNAL TABLE ods_sku_sale_attr_value_full
(
    `id`                   STRING COMMENT ' Number ',
    `sku_id`               STRING COMMENT 'sku_id',
    `spu_id`               STRING COMMENT 'spu_id',
    `sale_attr_value_id`   STRING COMMENT ' Sales attribute value id',
    `sale_attr_id`         STRING COMMENT ' Sales attributes id',
    `sale_attr_name`       STRING COMMENT ' Sales attribute name ',
    `sale_attr_value_name` STRING COMMENT ' Sales attribute value name '
) COMMENT 'sku Sales attribute name '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_sku_sale_attr_value_full/';

2.15 SPU surface （ Full scale ） Design

DROP TABLE IF EXISTS ods_spu_info_full;
CREATE EXTERNAL TABLE ods_spu_info_full
(
    `id`           STRING COMMENT 'spu_id',
    `spu_name`     STRING COMMENT 'spu name ',
    `description`  STRING COMMENT ' Description information ',
    `category3_id` STRING COMMENT ' category id',
    `tm_id`        STRING COMMENT ' brand id'
) COMMENT 'SPU Commodity list '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_spu_info_full/';

2.16 Shopping cart table （ Increment table ）

DROP TABLE IF EXISTS ods_cart_info_inc;
CREATE EXTERNAL TABLE ods_cart_info_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,user_id :STRING,sku_id :STRING,cart_price :DECIMAL(16, 2),sku_num :BIGINT,img_url :STRING,sku_name
                  :STRING,is_checked :STRING,create_time :STRING,operate_time :STRING,is_ordered :STRING,order_time
                  :STRING,source_type :STRING,source_id :STRING> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' Shopping cart increment table '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_cart_info_inc/';

2.17 Comment table （ Increment table ）

DROP TABLE IF EXISTS ods_comment_info_inc;
CREATE EXTERNAL TABLE ods_comment_info_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,user_id :STRING,nick_name :STRING,head_img :STRING,sku_id :STRING,spu_id :STRING,order_id
                  :STRING,appraise :STRING,comment_txt :STRING,create_time :STRING,operate_time :STRING> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' Evaluation form '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_comment_info_inc/';

2.18 Coupon collection form （ Increment table ）

DROP TABLE IF EXISTS ods_coupon_use_inc;
CREATE EXTERNAL TABLE ods_coupon_use_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,coupon_id :STRING,user_id :STRING,order_id :STRING,coupon_status :STRING,get_time :STRING,using_time
                  :STRING,used_time :STRING,expire_time :STRING> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' Coupon collection form '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_coupon_use_inc/';

2.19 Collection table （ Increment table ）

DROP TABLE IF EXISTS ods_favor_info_inc;
CREATE EXTERNAL TABLE ods_favor_info_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,user_id :STRING,sku_id :STRING,spu_id :STRING,is_cancel :STRING,create_time :STRING,cancel_time
                  :STRING> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' Collection table '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_favor_info_inc/';

2.20 Order details （ Increment table ）

DROP TABLE IF EXISTS ods_order_detail_inc;
CREATE EXTERNAL TABLE ods_order_detail_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,order_id :STRING,sku_id :STRING,sku_name :STRING,img_url :STRING,order_price
                  :DECIMAL(16, 2),sku_num :BIGINT,create_time :STRING,source_type :STRING,source_id :STRING,split_total_amount
                  :DECIMAL(16, 2),split_activity_amount :DECIMAL(16, 2),split_coupon_amount
                  :DECIMAL(16, 2)> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' Order details '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_order_detail_inc/';

2.21 Order details activity association table （ Increment table ）

DROP TABLE IF EXISTS ods_order_detail_activity_inc;
CREATE EXTERNAL TABLE ods_order_detail_activity_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,order_id :STRING,order_detail_id :STRING,activity_id :STRING,activity_rule_id :STRING,sku_id
                  :STRING,create_time :STRING> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' Order details activity association table '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_order_detail_activity_inc/';

2.22 Order details coupon association table （ Increment table ）

DROP TABLE IF EXISTS ods_order_detail_coupon_inc;
CREATE EXTERNAL TABLE ods_order_detail_coupon_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,order_id :STRING,order_detail_id :STRING,coupon_id :STRING,coupon_use_id :STRING,sku_id
                  :STRING,create_time :STRING> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' Order details coupon association table '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_order_detail_coupon_inc/';

2.23 The order sheet （ Increment table ）

DROP TABLE IF EXISTS ods_order_info_inc;
CREATE EXTERNAL TABLE ods_order_info_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,consignee :STRING,consignee_tel :STRING,total_amount :DECIMAL(16, 2),order_status :STRING,user_id
                  :STRING,payment_way :STRING,delivery_address :STRING,order_comment :STRING,out_trade_no :STRING,trade_body
                  :STRING,create_time :STRING,operate_time :STRING,expire_time :STRING,process_status :STRING,tracking_no
                  :STRING,parent_order_id :STRING,img_url :STRING,province_id :STRING,activity_reduce_amount
                  :DECIMAL(16, 2),coupon_reduce_amount :DECIMAL(16, 2),original_total_amount :DECIMAL(16, 2),freight_fee
                  :DECIMAL(16, 2),freight_fee_reduce :DECIMAL(16, 2),refundable_time :DECIMAL(16, 2)> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' The order sheet '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_order_info_inc/';

2.24 Chargeback form （ Increment table ）

DROP TABLE IF EXISTS ods_order_refund_info_inc;
CREATE EXTERNAL TABLE ods_order_refund_info_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,user_id :STRING,order_id :STRING,sku_id :STRING,refund_type :STRING,refund_num :BIGINT,refund_amount
                  :DECIMAL(16, 2),refund_reason_type :STRING,refund_reason_txt :STRING,refund_status :STRING,create_time
                  :STRING> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' Chargeback form '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_order_refund_info_inc/';

2.25 Order status flow table （ Increment table ）

DROP TABLE IF EXISTS ods_order_status_log_inc;
CREATE EXTERNAL TABLE ods_order_status_log_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,order_id :STRING,order_status :STRING,operate_time :STRING> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' Chargeback form '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_order_status_log_inc/';

2.26 Payment form （ Increment table ）

DROP TABLE IF EXISTS ods_payment_info_inc;
CREATE EXTERNAL TABLE ods_payment_info_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,out_trade_no :STRING,order_id :STRING,user_id :STRING,payment_type :STRING,trade_no
                  :STRING,total_amount :DECIMAL(16, 2),subject :STRING,payment_status :STRING,create_time :STRING,callback_time
                  :STRING,callback_content :STRING> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' Payment form '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_payment_info_inc/';

2.27 Refund form （ Increment table ）

DROP TABLE IF EXISTS ods_refund_payment_inc;
CREATE EXTERNAL TABLE ods_refund_payment_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,out_trade_no :STRING,order_id :STRING,sku_id :STRING,payment_type :STRING,trade_no :STRING,total_amount
                  :DECIMAL(16, 2),subject :STRING,refund_status :STRING,create_time :STRING,callback_time :STRING,callback_content
                  :STRING> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' Refund form '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_refund_payment_inc/';

2.28 User table （ Increment table ）

DROP TABLE IF EXISTS ods_user_info_inc;
CREATE EXTERNAL TABLE ods_user_info_inc
(
    `type` STRING COMMENT ' Change type ',
    `ts`   BIGINT COMMENT ' Change time ',
    `data` STRUCT<id :STRING,login_name :STRING,nick_name :STRING,passwd :STRING,name :STRING,phone_num :STRING,email
                  :STRING,head_img :STRING,user_level :STRING,birthday :STRING,gender :STRING,create_time :STRING,operate_time
                  :STRING,status :STRING> COMMENT ' data ',
    `old`  MAP<STRING,STRING> COMMENT ' The old value '
) COMMENT ' User table '
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_user_info_inc/';

2.29 Data table creation statement execution display

2.29 Data loading script design

Because of the above 28 The data loading logic of the table is the same , So we write a script to unify 28 Data loading of a table .

（1） stay hadoop102 Of /home/root/bin Create under directory hdfs_to_ods_db.sh

[[email protected] bin]$ vim hdfs_to_ods_db.sh

（2） The specific content of the script is as follows ：

We first judge whether there are parameters transmitted , The first parameter is the table to load data , You can load single table data , You can also use parameters “all“ To load the full table data . The second parameter is the date , After the project goes online , This parameter can be omitted , It will be automatically set as the date of the previous day .

#!/bin/bash

APP=gmall

if [ -n "$2" ] ;then
   do_date=$2
else
   do_date=`date -d '-1 day' +%F`
fi

load_data(){

    sql=""
    for i in $*; do
        # Determine if the path exists
        hadoop fs -test -e /origin_data/$APP/db/${i:4}/$do_date
        # Data can be loaded only when the path exists
        if [[ $? = 0 ]]; then
            sql=$sql"load data inpath '/origin_data/$APP/db/${i:4}/$do_date' OVERWRITE into table ${APP}.$i partition(dt='$do_date');"
        fi
    done
    hive -e "$sql"
}

case $1 in
    "ods_activity_info_full")
        load_data "ods_activity_info_full"
    ;;
    "ods_activity_rule_full")
        load_data "ods_activity_rule_full"
    ;;
    "ods_base_category1_full")
        load_data "ods_base_category1_full"
    ;;
    "ods_base_category2_full")
        load_data "ods_base_category2_full"
    ;;
    "ods_base_category3_full")
        load_data "ods_base_category3_full"
    ;;
    "ods_base_dic_full")
        load_data "ods_base_dic_full"
    ;;
    "ods_base_province_full")
        load_data "ods_base_province_full"
    ;;
    "ods_base_region_full")
        load_data "ods_base_region_full"
    ;;
    "ods_base_trademark_full")
        load_data "ods_base_trademark_full"
    ;;
    "ods_cart_info_full")
        load_data "ods_cart_info_full"
    ;;
    "ods_coupon_info_full")
        load_data "ods_coupon_info_full"
    ;;
    "ods_sku_attr_value_full")
        load_data "ods_sku_attr_value_full"
    ;;
    "ods_sku_info_full")
        load_data "ods_sku_info_full"
    ;;
    "ods_sku_sale_attr_value_full")
        load_data "ods_sku_sale_attr_value_full"
    ;;
    "ods_spu_info_full")
        load_data "ods_spu_info_full"
    ;;

    "ods_cart_info_inc")
        load_data "ods_cart_info_inc"
    ;;
    "ods_comment_info_inc")
        load_data "ods_comment_info_inc"
    ;;
    "ods_coupon_use_inc")
        load_data "ods_coupon_use_inc"
    ;;
    "ods_favor_info_inc")
        load_data "ods_favor_info_inc"
    ;;
    "ods_order_detail_inc")
        load_data "ods_order_detail_inc"
    ;;
    "ods_order_detail_activity_inc")
        load_data "ods_order_detail_activity_inc"
    ;;
    "ods_order_detail_coupon_inc")
        load_data "ods_order_detail_coupon_inc"
    ;;
    "ods_order_info_inc")
        load_data "ods_order_info_inc"
    ;;
    "ods_order_refund_info_inc")
        load_data "ods_order_refund_info_inc"
    ;;
    "ods_order_status_log_inc")
        load_data "ods_order_status_log_inc"
    ;;
    "ods_payment_info_inc")
        load_data "ods_payment_info_inc"
    ;;
    "ods_refund_payment_inc")
        load_data "ods_refund_payment_inc"
    ;;
    "ods_user_info_inc")
        load_data "ods_user_info_inc"
    ;;
    "all")
        load_data "ods_activity_info_full" "ods_activity_rule_full" "ods_base_category1_full" "ods_base_category2_full" "ods_base_category3_full" "ods_base_dic_full" "ods_base_province_full" "ods_base_region_full" "ods_base_trademark_full" "ods_cart_info_full" "ods_coupon_info_full" "ods_sku_attr_value_full" "ods_sku_info_full" "ods_sku_sale_attr_value_full" "ods_spu_info_full" "ods_cart_info_inc" "ods_comment_info_inc" "ods_coupon_use_inc" "ods_favor_info_inc" "ods_order_detail_inc" "ods_order_detail_activity_inc" "ods_order_detail_coupon_inc" "ods_order_info_inc" "ods_order_refund_info_inc" "ods_order_status_log_inc" "ods_payment_info_inc" "ods_refund_payment_inc" "ods_user_info_inc"
    ;;
esac

（3） We increase the execution permission of this script

[[email protected] bin]$ chmod +x hdfs_to_ods_db.sh

（4） Use this script to load 2022-05-01 The data of

[[email protected] bin]$ hdfs_to_ods_db.sh all 2022-05-01

Final , Let's check whether there is load entry data in the table ：

We can see from the above figure ,ODS Layer data has been loaded successfully .

3.ODS Layer summary

about ODS Layer , We just need to execute every day hdfs_to_ods_log.sh and hdfs_to_ods_db.sh These two scripts will collect HDFS The raw data on is loaded into ODS Layer can be .
