Prometheus+grafana visual real-time JVM monitoring tool

2022-07-19 00:46:00 【Sea of sperm whales】

Install first Grafana：

Docker Deploy visual monitoring tools Grafana

Install again Prometheus And configure to Grafana

download JMX Exporter Of jar Package for monitoring JVM Information

To collect JVM Information , You can start Java Passed at the time of the project JMX Exporter（ Download address ：https://repo1.maven.org/maven2/io/prometheus/jmx/jmx_prometheus_javaagent/ ） To collect . With jmx_prometheus_javaagent-0.12.0.jar For example .

1. download ：

wget https://repo1.maven.org/maven2/io/prometheus/jmx/jmx_prometheus_javaagent/0.12.0/jmx_prometheus_javaagent-0.12.0.jar

You can also download it locally and send it to the server .

New configuration file simple-config.yml

touch simple-config.yml

vim simple-config.yml

wercaseOutputLabelNames: true
lowercaseOutputName: true
whitelistObjectNames: ["java.lang:type=OperatingSystem"]
blacklistObjectNames: []
rules:
  - pattern: 'java.lang<type=OperatingSystem><>(committed_virtual_memory|free_physical_memory|free_swap_space|total_physical_memory|total_swap_space)_size:'
    name: os_$1_bytes
    type: GAUGE
    attrNameSnakeCase: true
  - pattern: 'java.lang<type=OperatingSystem><>((?!process_cpu_time)\w+):'
    name: os_$1
    type: GAUGE
    attrNameSnakeCase: true

Use JMX Exporter Plugins collect data , start-up jar The package needs to be changed to this ：

java -javaagent:/home/jar/demo/jmx_prometheus_javaagent-0.12.0.jar=8037:/home/jar/demo/simple-config.yml -jar swagger-0.0.1-SNAPSHOT.jar

【 Be careful 】 Record here 8037 The port number and IP Address follow up Prometheus Use in profile
The structure here is like this ：
Insert picture description here

modify prometheus.yml

lookup scrape_configs node , Increase monitoring Job Child node , Examples are as follows ：

  - job_name: 'java'
    scrape_interval: 30s
    static_configs:
- targets: ['120.48.54.67:8037']

Insert picture description here
【 Be careful 】 Record here job_name follow-up Grafana Use in

restart Prometheus service

docker restart pensive_williamson

Check it out

1、 visit Prometheus Of IP9090 port , The interface indicates that the startup is successful . Such as ：http://127.0.0.1:9090/
2、 Check out the existing JVM Information
Insert picture description here

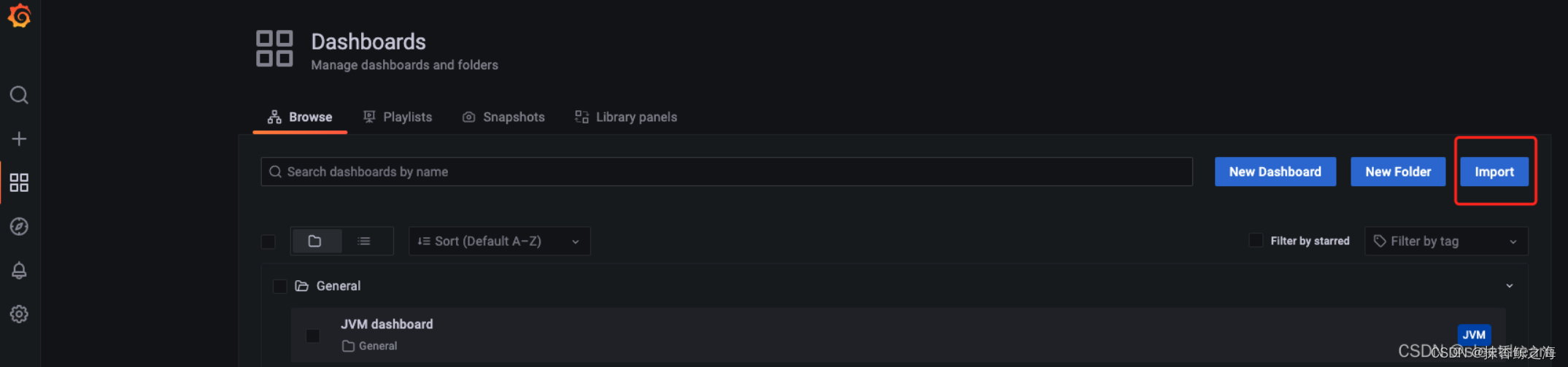

Click for details , You need to configure these information Grafana Convert the template into visual information .
