Preface

Suddenly a task comes , Let the upload and download interfaces of the pressure test object storage service , I haven't done it before , Nor does it belong to my own work . however , Things are in a hurry , I'll just have to bite the bullet myself .

Text

Scheme Research

Speaking of pressure measuring interface , I first thought of Postman and Apipost, But after a brief look , It may be difficult to meet your pressure testing needs . therefore , I found it again JMeter, Um. , Sure enough , Implement concurrent testing so easy！

Download tool

Want to use JMeter Tools , First you need to download , Download address ：Apache JMeter - Download Apache JMeter

See the figure below for specific operation ：

When the download is complete , decompression .

Launch tool

This article takes mac OS The system is introduced as an example , Go to unzip directory  apache-jmeter-5.5, Execute the following command ：

cd bin

./jmeter.sh

This will start JMeter Tools , As shown in the figure below ：

Organize the pressure test script

1. establish Upload Thread group .

2. Set up http Request defaults , Add protocol type and domain name address .

3. add to http request , Fill in the necessary upload interface parameters .

Be careful ： The physical path of the uploaded file needs to be set separately , As shown in the figure below ：

among ,examples Directory is JMeter A directory carried by itself , And executables jmeter At the same level .

4. Set the concurrent number of upload requests .

Pressure test results

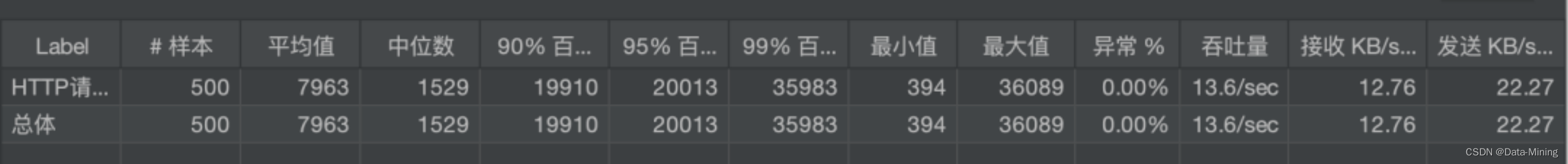

1. 500 Path concurrency normal

2. 1000 Path concurrency normal

Conclusion

The load balancing strategy of object storage service is ok , It can meet the use requirements of basic scenarios , Of course, the specific performance also has a certain relationship with the file size . About the discussion , Later, we will have time to expand .
