Here is DB Data and DB Operation interface ：

//  Provided interface
public interface UserDao {
    // select * from user_test where uid = "#{uid}"
    public MyUser selectUserById(Integer uid);
    // update user_test set uname =#{uname},usex = #{usex} where uid = #{uid}
    public int updateUser(MyUser user);
}

Basic test code ,testSuccess() It is the case that the transaction takes effect ：

@Service
public class UserController {
    @Autowired
    private UserDao userDao;

    public void update(Integer id) {
        MyUser user = new MyUser();
        user.setUid(id);
        user.setUname(" Zhang San -testing");
        user.setUsex(" Woman ");
        userDao.updateUser(user);
    }

    public MyUser query(Integer id) {
        MyUser user = userDao.selectUserById(id);
        return user;
    }

    //  Normal condition
    @Transactional(rollbackFor = Exception.class)
    public void testSuccess() throws Exception {
        Integer id = 1;
        MyUser user = query(id);
        System.out.println(" Original record :" + user);
        update(id);
        throw new Exception(" Transaction effective ");
    }
}

There are several kinds of invalid transactions Case

Main explanation 4 Kinds of transactions do not take effect Case：

• Class internal access ：A Class a1 Method has no annotation @Transactional,a2 Method label @Transactional, stay a1 It calls a2;

• Private method ： take @Transactional Notes are marked in non public On the way ;

• Abnormal mismatch ：@Transactional Not set rollbackFor attribute , Method returns Exception Isoanomaly ;

• Multithreading ： Calling of main thread and sub thread , Thread throws an exception .

Case 1: Class internal access

We are in class UserController Add a new method testInteralCall()：

public void testInteralCall() throws Exception {
    testSuccess();
    throw new Exception(" The transaction does not take effect ： Class internal access ");
}

here testInteralCall() There is no sign @Transactional, Let's take a look at the test cases again ：

public static void main(String[] args) throws Exception {
    ApplicationContext applicationContext = new ClassPathXmlApplicationContext("applicationContext.xml");
    UserController uc = (UserController) applicationContext.getBean("userController");
    try {
        uc.testSuccess();
    } finally {
        MyUser user =  uc.query(1);
        System.out.println(" Revised records :" + user);
    }
}
//  Output ：
//  Original record :MyUser(uid=1, uname= Zhang San , usex= Woman )
//  Revised records :MyUser(uid=1, uname= Zhang San -testing, usex= Woman )

As you can see from the output above , Transaction is not rolled back , What's the reason for this ？

because @Transactional The working mechanism of is based on AOP Realization ,AOP It is implemented with dynamic agent , If you call directly through a proxy testSuccess(), adopt AOP It will be enhanced before and after , The enhanced logic is actually in testSuccess() Add open before and after 、 The logic of committing transactions , The following source code will be analyzed .

Now through testInteralCall() To call testSuccess(),testSuccess() There will be no enhancement before and after , That is to say Class internal call , Will not access... Through proxy .

If it's still unclear , I recommend reading this article again , There are complete examples , Very perfect interpretation “ Class internal access ” Reasons why it cannot be enhanced before and after ：https://blog.csdn.net/Ahuuua/article/details/123877835

Case 2: Private method

In private methods , add to @Transactional The note will not take effect ：

@Transactional(rollbackFor = Exception.class)
private void testPirvateMethod() throws Exception {
    Integer id = 1;
    MyUser user = query(id);
    System.out.println(" Original record :" + user);
    update(id);
    throw new Exception(" Test transaction validation ");
}

When used directly , The following scenario is not easy to appear , because IDEA There will be reminders , The copy is : Methods annotated with '@Transactional' must be overridable, As for the deep principle , The source code part will give you interpretation .

Case 3: Abnormal mismatch

there @Transactional No settings rollbackFor = Exception.class attribute ：

@Transactional
public void testExceptionNotMatch() throws Exception {
    Integer id = 1;
    MyUser user = query(id);
    System.out.println(" Original record :" + user);
    update(id);
    throw new Exception(" The transaction does not take effect ： Abnormal mismatch ");
}

 The test method ： Same as  Case1

//  Output ：
//  Original record :User[uid=1,uname= Zhang San ,usex= Woman ]
//  Revised records :User[uid=1,uname= Zhang San -test,usex= Woman ]

@Transactional Annotations handle runtime exceptions by default , That is, only when a runtime exception is thrown , Transaction rollback will be triggered , Otherwise it doesn't roll back , As for the deep principle , The source code part will give you interpretation .

Case 4: Multithreading

Here are two different positions , One is that the child thread throws an exception , The main thread ok; One is the child thread ok, Main thread throws exception .

The parent thread threw an exception

The parent thread threw an exception , The sub thread does not throw an exception ：

public void testSuccess() throws Exception {
    Integer id = 1;
    MyUser user = query(id);
    System.out.println(" Original record :" + user);
    update(id);
}
@Transactional(rollbackFor = Exception.class)
public void testMultThread() throws Exception {
    new Thread(new Runnable() {
        @SneakyThrows
        @Override
        public void run() {
            testSuccess();
        }
    }).start();
    throw new Exception(" The test transaction does not take effect ");
}

The parent thread throws the thread , Transaction rollback , Because sub threads exist independently , Not in the same transaction as the parent thread , Therefore, the modification of child threads will not be rolled back ,

The child thread throws an exception

The parent thread does not throw an exception , The child thread throws an exception ：

public void testSuccess() throws Exception {
    Integer id = 1;
    MyUser user = query(id);
    System.out.println(" Original record :" + user);
    update(id);
    throw new Exception(" The test transaction does not take effect ");
}
@Transactional(rollbackFor = Exception.class)
public void testMultThread() throws Exception {
    new Thread(new Runnable() {
        @SneakyThrows
        @Override
        public void run() {
            testSuccess();
        }
    }).start();
}

Because the exception of the sub thread will not be caught by the external thread , So the parent thread does not throw exceptions , Transaction rollback did not take effect .

Source code interpretation

Now let's look at the source code , Yes @Transactional The implementation mechanism and the reason why the transaction does not take effect .

@Transactional Execution mechanism

We only look at the core logic , In code interceptorOrInterceptionAdvice Namely TransactionInterceptor Example , Participation is this object .

There is a comment in the red box , Roughly translated as “ It's an interceptor , So we just need to call ： Before constructing this object , Pointcuts will be calculated statically .”

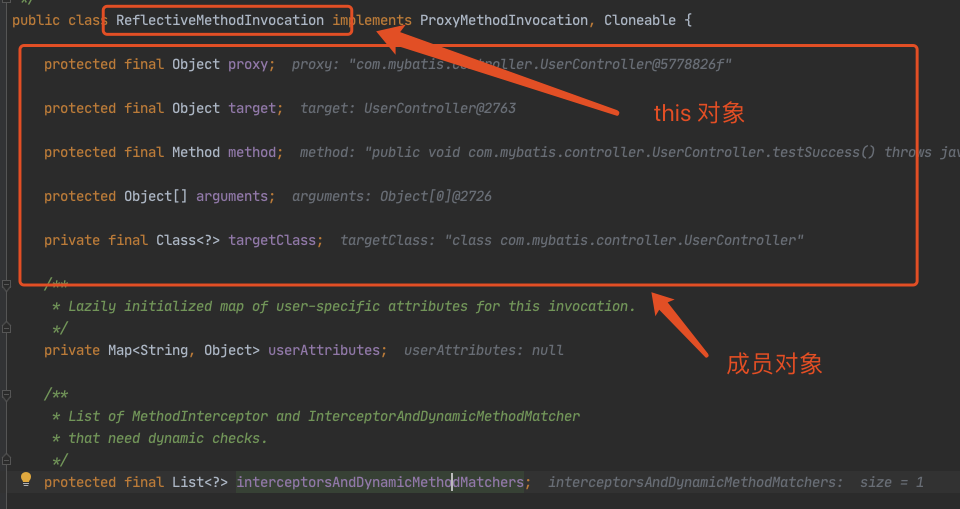

this yes ReflectiveMethodInvocation object , The member object contains UserController class 、testSuccess() Method 、 Participate in proxy objects, etc .

Get into invoke() After the method ：

high energy alert ！！！ Here is the core logic of transactions , Including determining whether the transaction is started 、 Target method execution 、 Transaction rollback 、 Transaction submission .

private The reason why the transaction does not take effect

In the picture above , The first red box area calls the method getTransactionAttribute(), It's mainly about getting txAttr Variable , It is used to read @Transactional Configuration of , If this txAttr = null, Transaction logic will not be followed , Let's take a look at the meaning of this variable ：

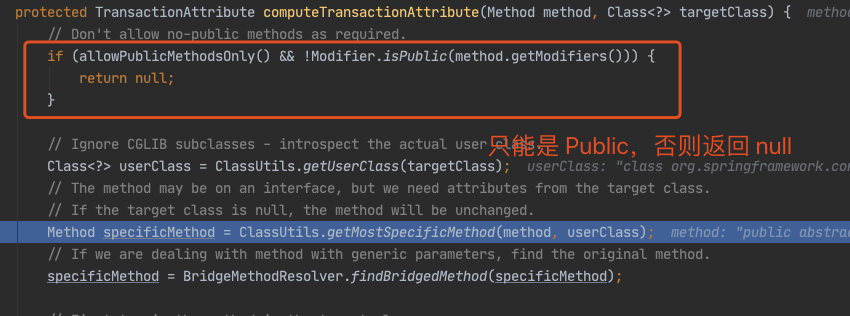

We go straight into getTransactionAttribute(), Focus on the method of obtaining transaction configuration .

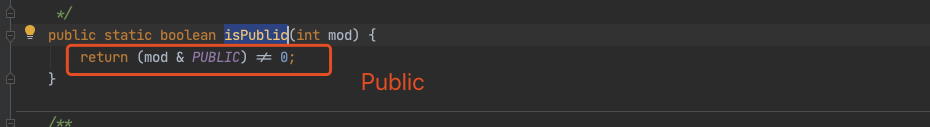

high energy alert ！！！ Here is the private The reason why the transaction does not take effect ,allowPublicMethodsOnly() Keep returning false, So focus on isPublic() Method .

Next, through bit and calculation , Judge whether it is Public, The corresponding types of modifiers are as follows ：

• PUBLIC: 1

• PRIVATE: 2

• PROTECTED: 4

See here , Are you suddenly enlightened , Do you think it's very interesting ~~

Cause of abnormal mismatch

Let's go back to the core logic of transactions , Because the main method throws Exception() abnormal , Enter the logic of transaction rollback ：

Get into rollbackOn() Method , Judge whether the exception can be rolled back , This needs to judge what the main method throws Exception() abnormal , Whether in @Transactional The configuration of ：

We enter getDepth() Look at the exception rule matching logic , Because we're right @Transactional Configured with rollbackFor = Exception.class, So it can match successfully ：

In the example winner Not for null, So I will skip the following links . But when winner = null when , That is, there is no setting rollbackFor Attribute , Will follow the default exception capture method .

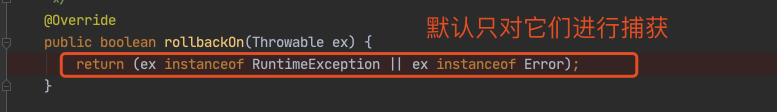

high energy alert ！！！ Here is the reason for the abnormal mismatch , Let's take a look at the default exception capture method ：

Is it suddenly clear , When there is no setting rollbackFor Attribute , Default only for RuntimeException and Error Exception execution rollback .
